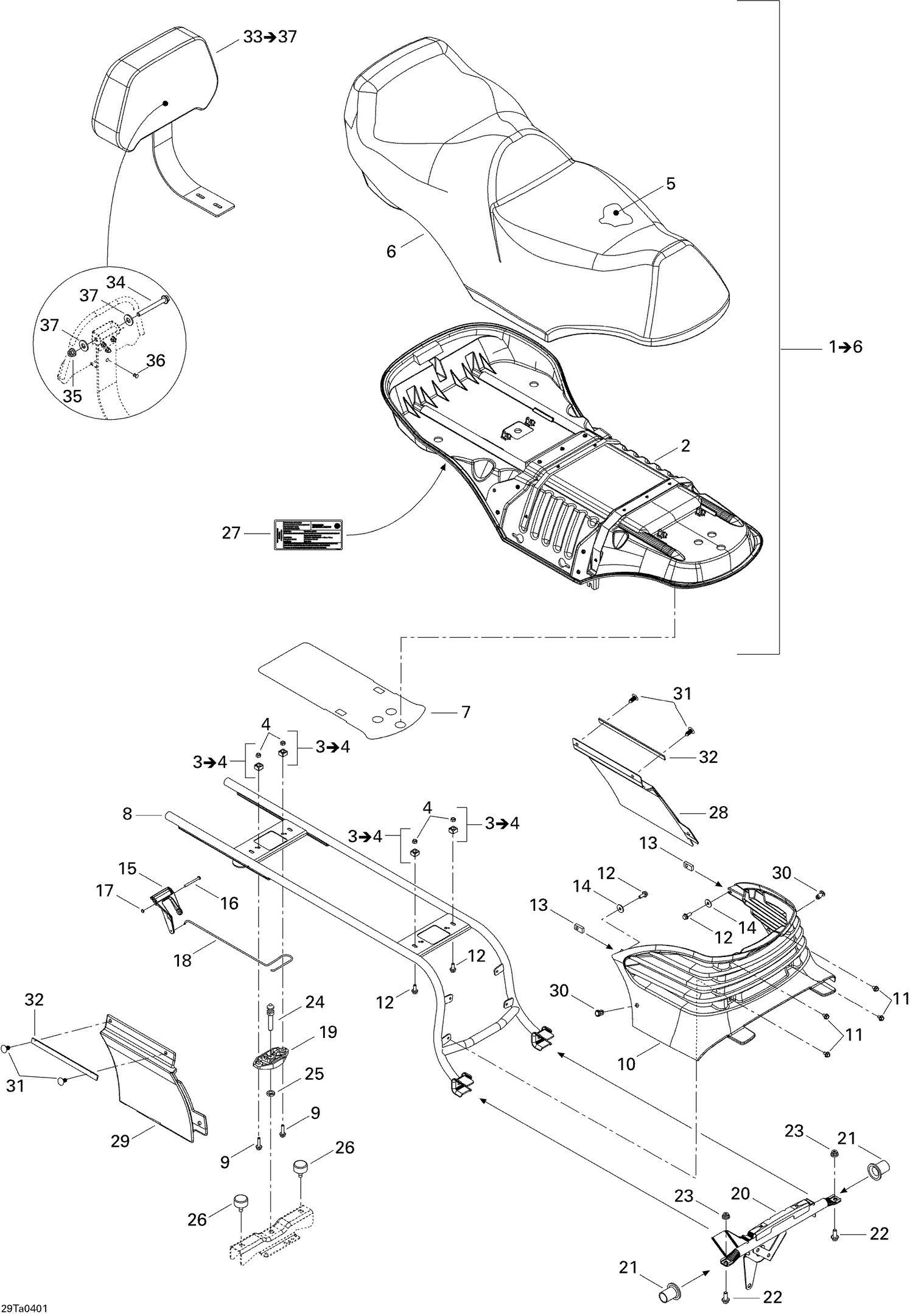

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Seat base ass'y |
| 4 |
232561414 |
Elastic Stop Nut M6 |
| 5 |
Not |
Available As Spare Part - Seat foam |
| 6 |
708000243 |
Seat cover (viper red) |
| 7 |
708000160 |
Reflective Sheet |
| 8 |
708000173 |
Seat support |
| 9 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 10 |
705000707 |
Engine cover (grey) |
| 11 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 12 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 13 |
708000042 |
Nut Housing M6 |
| 14 |
224061201 |
Flat Washer |
| 15 |
708000010 |
Lever Latch |
| 16 |
293150062 |
SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership |
| 17 |
389804300 |
Push Nut |
| 18 |
708000015 |
SPRING - Call your local BRP dealership |
| 19 |
708000034 |
Latch Base |
| 20 |
708000177 |
Pivot seat |
| 21 |
708000019 |
SEAT BUSHING - Call your local BRP dealership |
| 22 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 23 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 24 |
291000945 |
SEAT STUD - Call your local BRP dealership |
| 25 |
232100600 |
Hex. Jam Nut M10 |
| 26 |
708000758 |
Rubber Stopper This part replaces 708000006. |
| 27 |
704900625 |
Emission Label |
| 28 |
705000669 |
LH Panel |
| 29 |
705000670 |
RH PANEL - Call your local BRP dealership |
| 30 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 31 |
293730010 |
Black Dart |
| 32 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 34 |
207089544 |
Hex. Screw M8 X 95 |
| 35 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 36 |
293150104 |
Pop Rivet 3/16" |
| 705000694 |
LH |
Panel 705000694 |
| 705000694 |
Panneau |
GA 705000694 |
| 705000695 |
Panneau |
DR - Appelez votre concessionnaire BRP local 705000695 |
| 705000695 |
RH |
PANEL - Call your local BRP dealership 705000695 |
| 705000880 |
LH |
Panel 705000880 |
| 705000880 |
Panneau |
GA 705000880 |
| 705000881 |
Panneau |
DR 705000881 |
| 705000881 |
RH |
Panel 705000881 |
