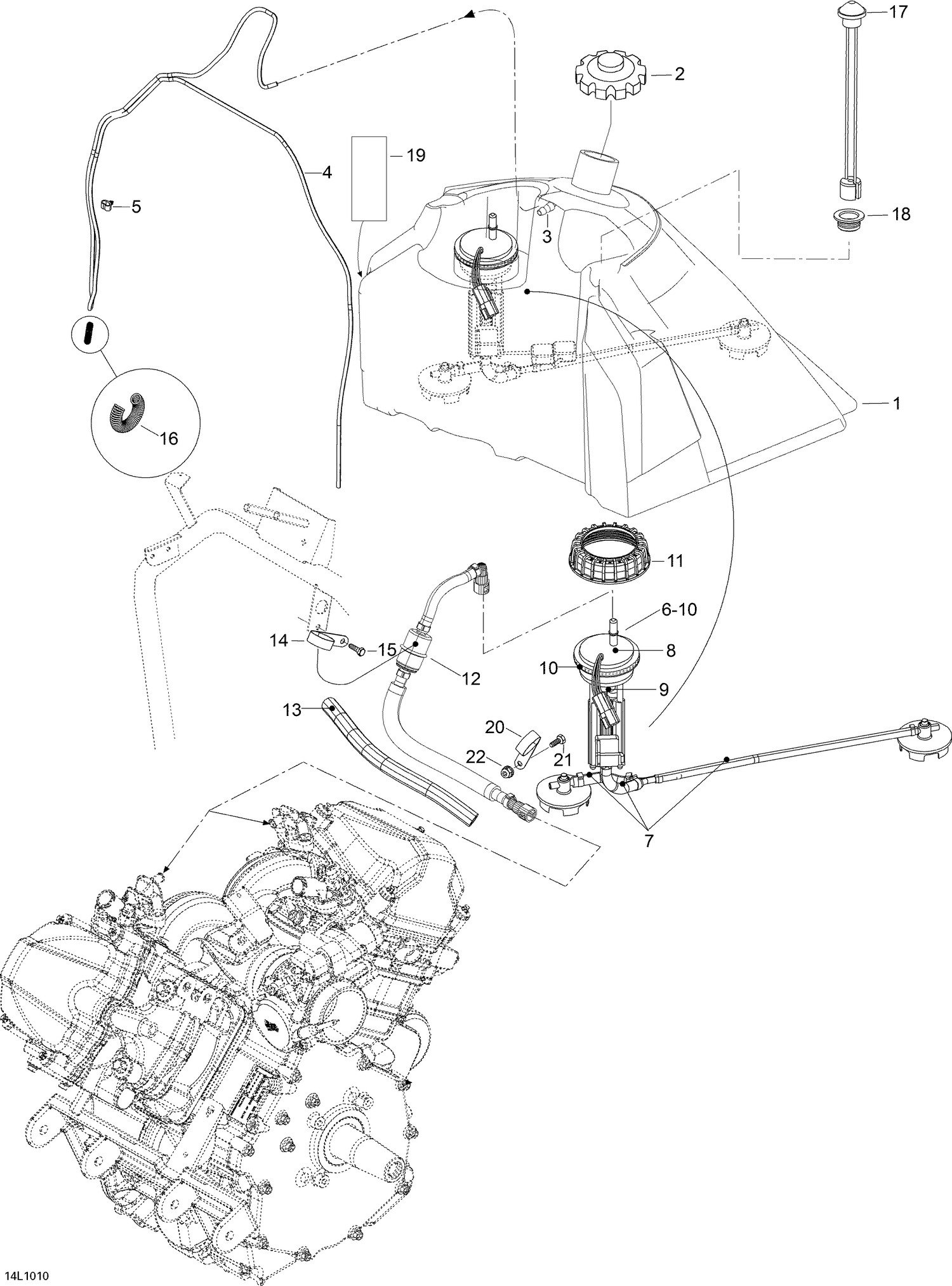

| Ref | Part Number | Description |
|---|
| 1 |
605151302 |
FUEL TANK - Call your local BRP dealership |
| 2 |
513033025 |
Fuel Tank Cap This part replaces 580259400. |
| 3 |
404127600 |
NIPPLE - Call your local BRP dealership |
| 4 |
M39035 |
HOSE - Call your local BRP dealership |
| 5 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 7 |
19183 |
Fuel hose kit - Call your local BRP dealership This part replaces M19183. |
| 8 |
861302600 |
PUMP HOSE KIT - Call your local BRP dealership |
| 9 |
861302100 |
REGULATOR KIT - Call your local BRP dealership |
| 10 |
Not |
Available As Spare Part - Gasket |
| 11 |
513033040 |
Nut, Fuel Pump Module |
| 12 |
605356250 |
Hose Ass'y This part replaces 605356034. |
| 13 |
219704355 |
TUBING 1000MM LONG - Call your local BRP dealership |
| 14 |
513033047 |
Open Clamp |
| 15 |
M40327 |
SCREW-M6X12 - Call your local BRP dealership |
| 16 |
M25003 |
SPRING - Call your local BRP dealership |
| 17 |
605351982 |
FUEL GAUGE - Call your local BRP dealership |
| 18 |
293720058 |
Grommet |
| 19 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001. |
| 20 |
M27092 |
CLIP - Call your local BRP dealership |
| 21 |
207161644 |
Hex. Screw M6 X 16 |
