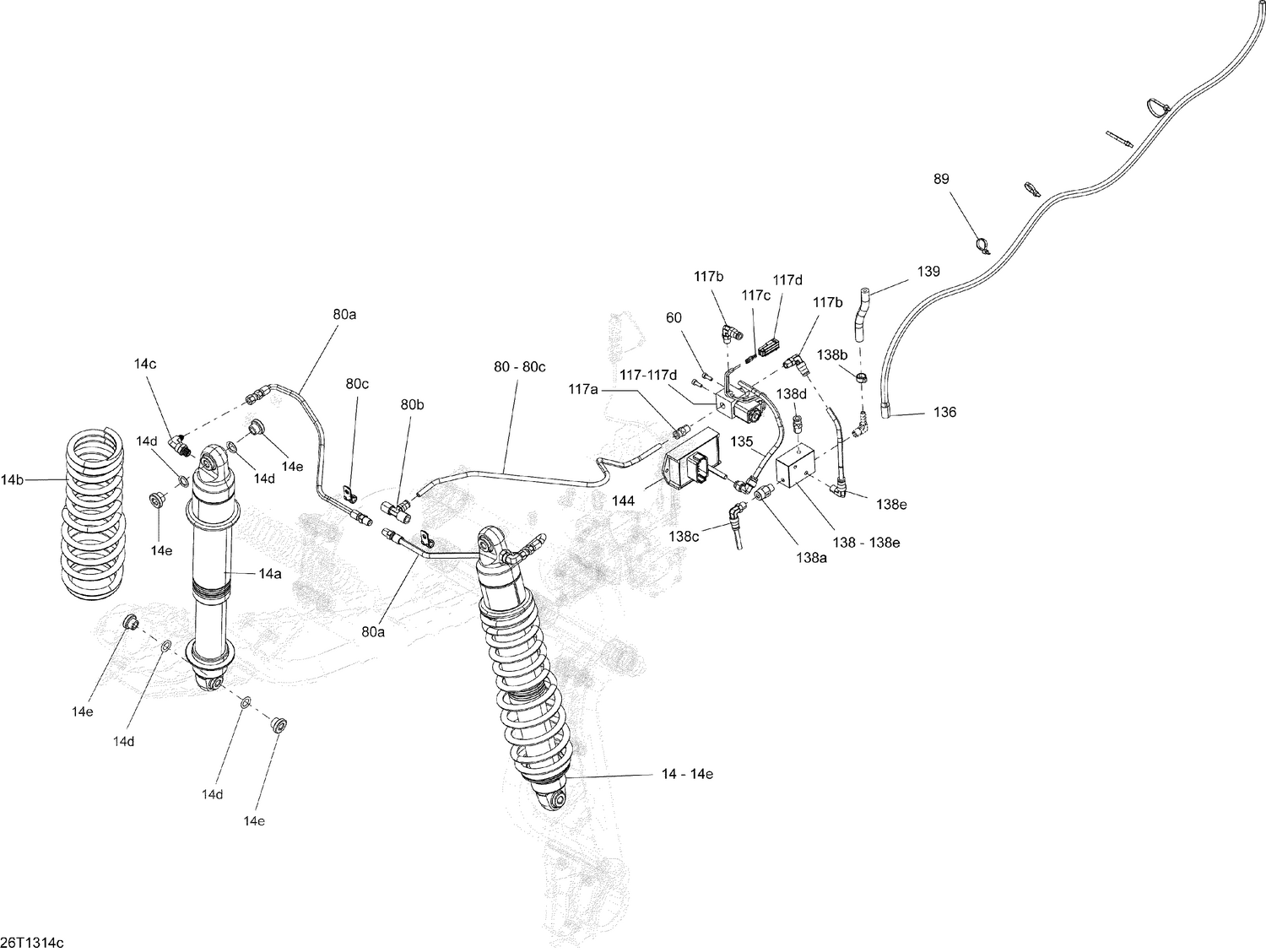

08- Rear Suspension LTD
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 706001341 | REAR SHOCK DISTRIBUTOR ASS'Y - Call your local BRP dealership |
| 80a | Not | Available As Spare Part - Rear Hose |
| 80b | 706000946 | T Fitting |
| 80c | 293650256 | Clamp This part replaces 705600459. |
| 135 | 706001216 | Hose Ass'y |
| 136 | 219704410 | Polyurethane Hose 10000Mm Long |
| 138 | 706001388 | HOSE ASS'Y - Call your local BRP dealership |
| 138a | 706000860 | Check Valve |
| 138b | 293650207 | Clamp Oetiker |
| 138c | 706000928 | Elbow 90° |
| 138d | 706000869 | Connector |
| 138e | 706000872 | Elbow 90° |
