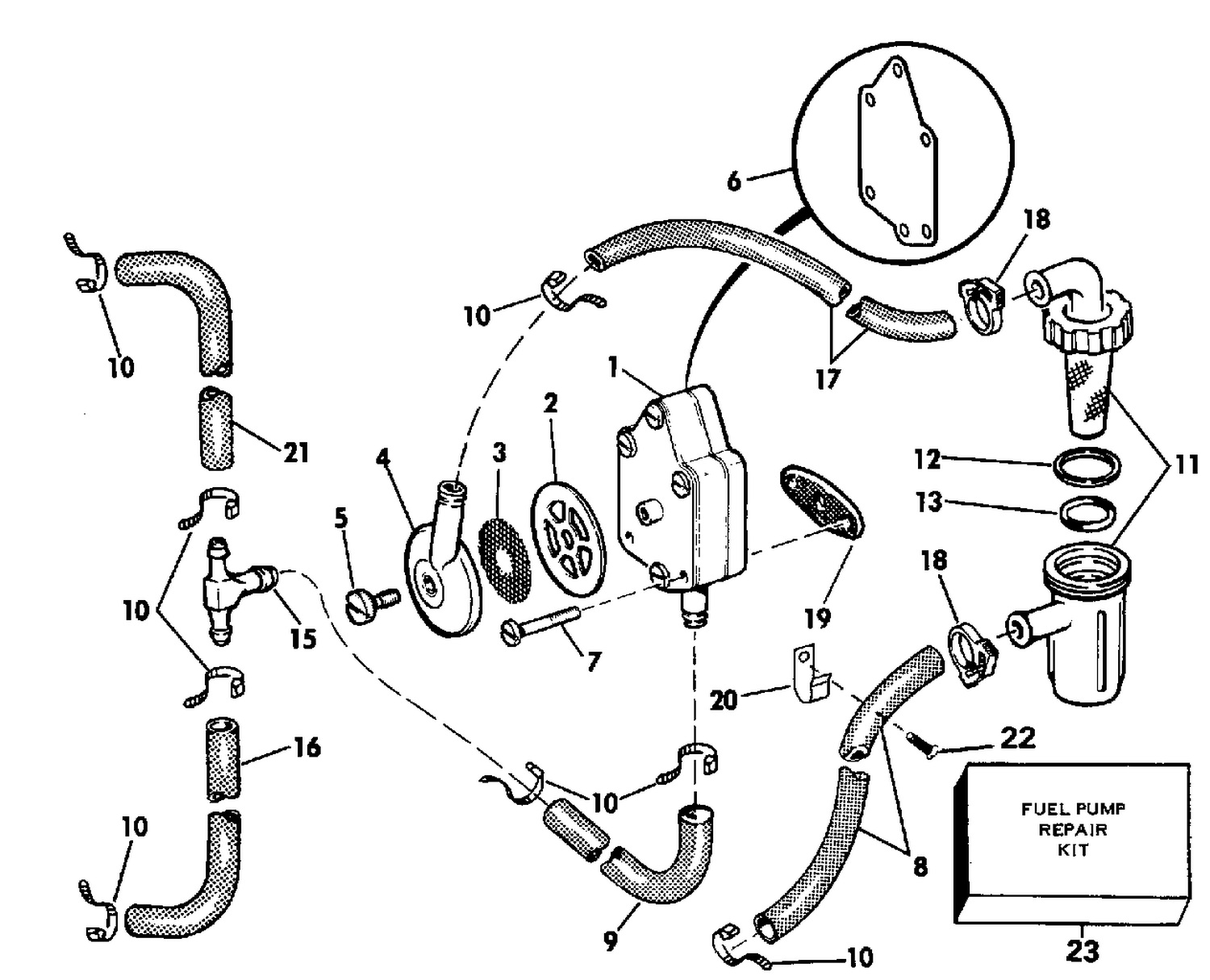

| Ref | Part Number | Description |
|---|
| 1 |
0438556 |
FUEL PUMP ASSY. This part replaces 0432451. |
| 2 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0332694. |
| 4 |
0330092 |
CAP Filter |
| 6 |
0334640 |
DIAPHRAGM |
| 8 |
HOSE, |
Conn. to filter, 9 in. (229mm) |
| 9 |
0332911 |
HOSE, Oil pulse, upper |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
0397715 |
FILTER, Fuel |
| 15 |
0326031 |
TEE, Carburetor hose |
| 16 |
HOSE, |
Tee to low. carb., 3 in. (76mm) |
| 17 |
HOSE, |
Fuel filter to pump, 4 in (102mm) |
| 19 |
0303615 |
GASKET |
| 20 |
0310947 |
CLAMP |
| 21 |
HOSE, |
Tee to upper carb., 3 in. (76mm) |
