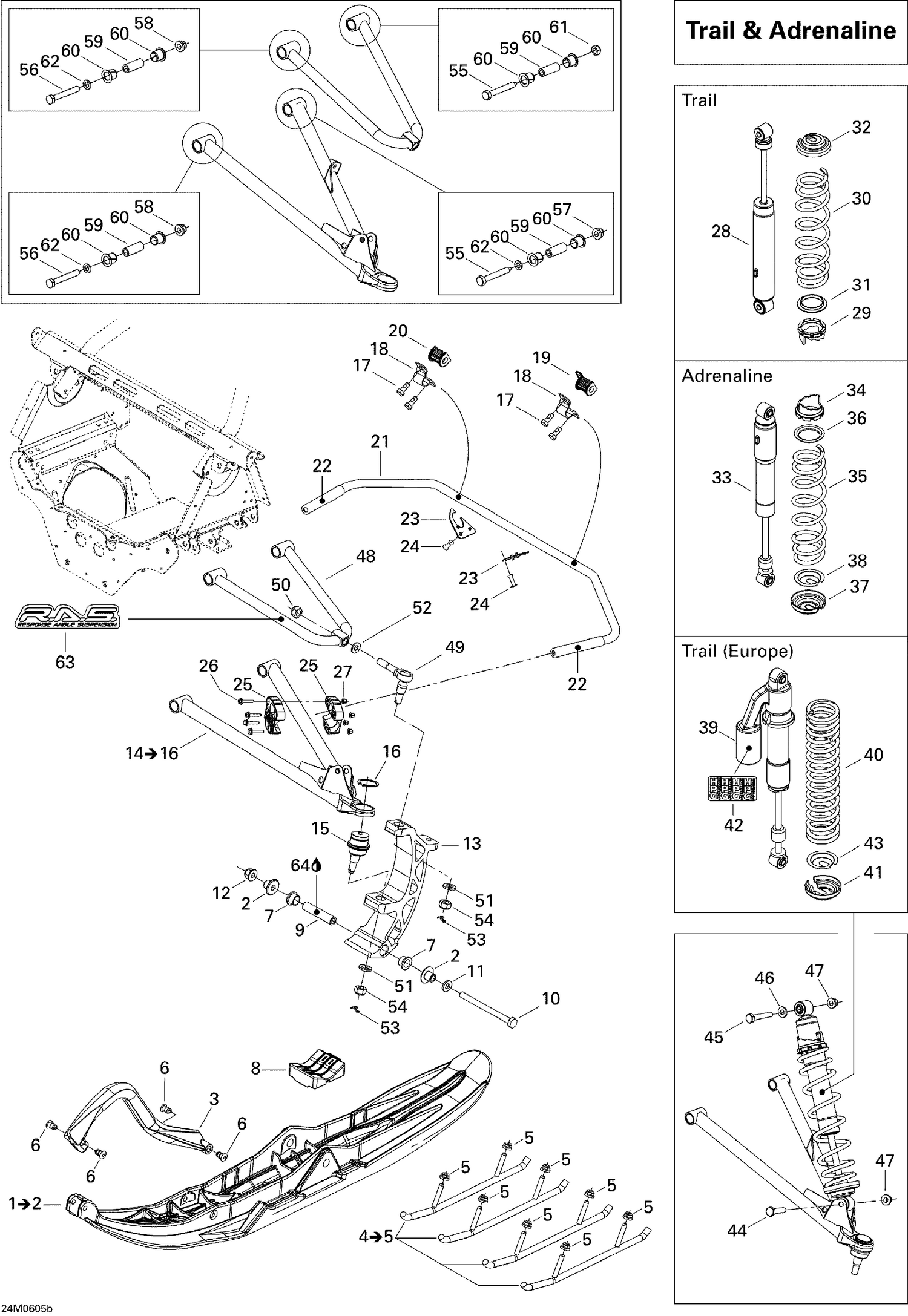

| Ref | Part Number | Description |
|---|
| 2 |
505071781 |
Ski Bushing |
| 5 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 6 |
505071812 |
Retainer 17mm long |
| 7 |
505072690 |
Leg Bushing This part replaces 505070954. |
| 8 |
505071779 |
Ski Stopper |
| 9 |
506133300 |
Spacer |
| 10 |
250000703 |
Hex. Screw M10 X 130 This part replaces 230003044. |
| 11 |
732900049 |
Washer |
| 12 |
250100105 |
Flange Nut M10 This part replaces 732610084. |
| 13 |
505071232 |
SKI LEG - Call your local BRP dealership |
| 14 |
860512400 |
LH LOWER ARM ASS'Y - Call your local BRP dealership |
| 15 |
505073636 |
Ball Joint This part replaces 505071891. |
| 16 |
293370035 |
Circlip |
| 17 |
250000118 |
Hex. Screw With Nylon |
| 18 |
506095800 |
CLAMP - Call your local BRP dealership |
| 19 |
505070664 |
LH BUSHING - Call your local BRP dealership |
| 20 |
505070912 |
RH BUSHING - Call your local BRP dealership |
| 21 |
505070948 |
STABILISATOR - Call your local BRP dealership |
| 22 |
505071039 |
STABILISATOR BOOT - Call your local BRP dealership |
| 23 |
505071253 |
PLUG - Call your local BRP dealership |
| 24 |
293150103 |
Pop Rivet 3/16" |
| 25 |
505071268 |
RH SLIDER HALF - Call your local BRP dealership |
| 25 |
505071269 |
LH SLIDER HALF - Call your local BRP dealership |
| 26 |
207652544 |
Hex. Flange Screw M5 X 25 |
| 27 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 28 |
XXX |
Not Available As Spare Parts |
| 29 |
XXX |
Not Available As Spare Parts |
| 30 |
XXX |
Not Available As Spare Parts |
| 31 |
XXX |
Not Available As Spare Parts |
| 32 |
XXX |
Not Available As Spare Parts |
| 39 |
XXX |
Not Available As Spare Parts |
| 40 |
XXX |
Not Available As Spare Parts |
| 41 |
XXX |
Not Available As Spare Parts |
| 42 |
XXX |
Not Available As Spare Parts |
| 43 |
XXX |
Not Available As Spare Parts |
| 44 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 45 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 46 |
503189564 |
Washer |
| 47 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 48 |
505071756 |
UPPER ARM - Call your local BRP dealership |
| 49 |
505072257 |
Upper Ball Joint This part replaces 505071863. |
| 50 |
250000047 |
Hex. Flange Elastic Nut M12 |
| 51 |
234021410 |
Flat Washer 12 mm |
| 52 |
503189276 |
Washer |
| 53 |
211400017 |
Cotter Pin |
| 54 |
250000047 |
Hex. Flange Elastic Nut M12 |
| 55 |
250001063 |
Hex. Screw M10 X 75 This part replaces 250000216. |
| 56 |
250001063 |
Hex. Screw M10 X 75 This part replaces 250000218. |
| 57 |
250100165 |
Hex. Flange Elastic Nut M10 This part replaces 250100073. |
| 58 |
250100165 |
Hex. Flange Elastic Nut M10 This part replaces 250100073. |
| 59 |
505070567 |
Bushing |
| 60 |
505070566 |
Arm Bushing |
| 61 |
232501416 |
Elastic Flange Nut M10 |
| 62 |
503189564 |
Washer |
| 63 |
516002747 |
R.a.s. Suspension Decal |
