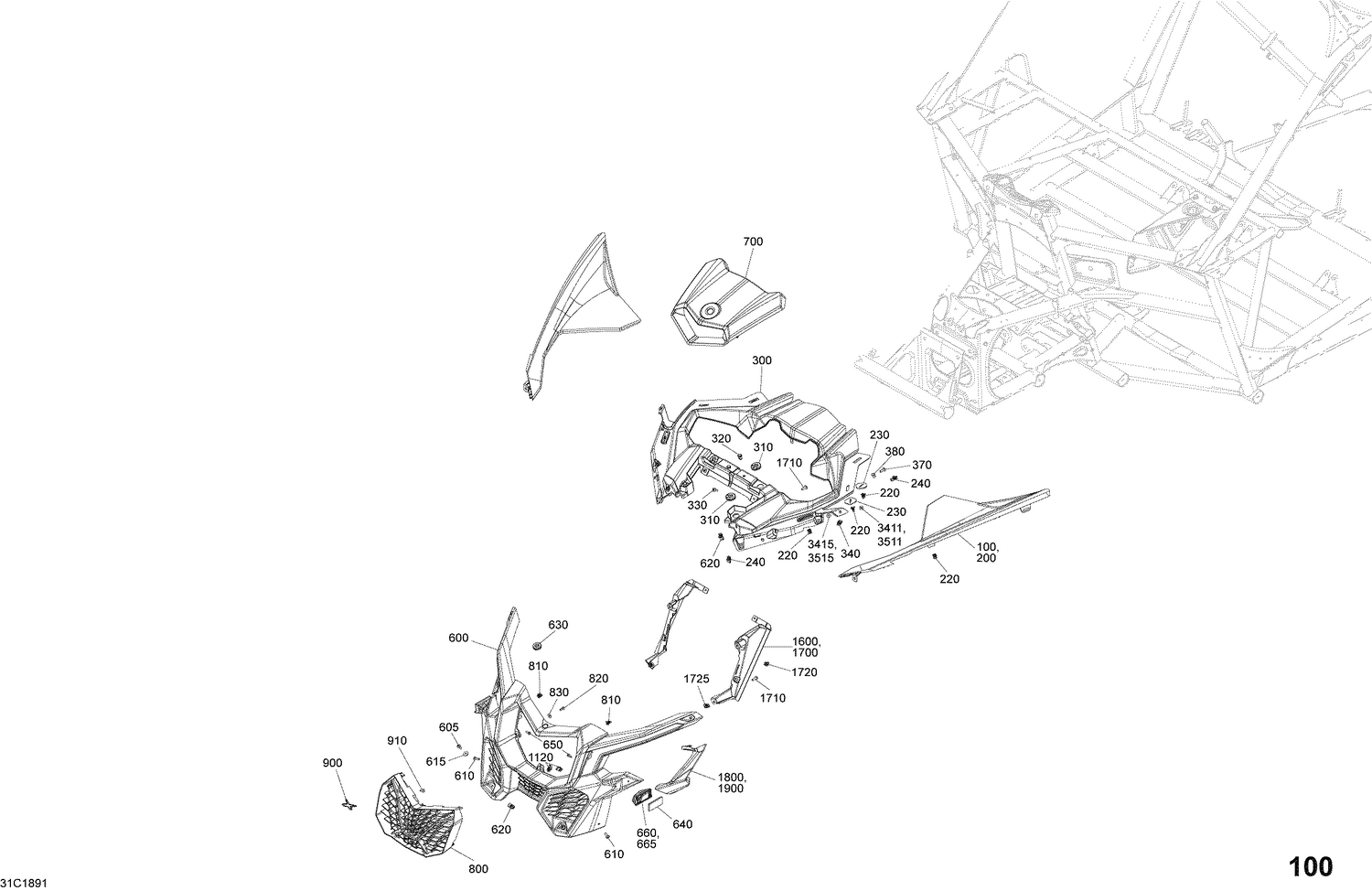

09- Body Parts - Carbon Black - Package XRC - Front Section

Parts (40)

Ref	Part Number	Description
100	705014289	Carbon Black, LH Front Fender This part replaces 705012470.
200	705014306	Carbon Black, RH Front Fender This part replaces 705012471.
220	517302785	Edge Clip
230	705003841	Support Plate
240	250100198	Panel Nut M6 X 1.0 This part replaces 250000957.
300	705014684	Central Hood This part replaces 705010671.
310	705010718	Grommet
320	293150230	Tuflok Plastic Rivet This part replaces 293150089.
330	250000722	Torx Screw M6 X 20
340	250100198	Panel Nut M6 X 1.0 This part replaces 250000957.
370	250000722	Torx Screw M6 X 20
380	234062670	Stainless Steel Flat Washer
600	705009508	Front Facia
605	250000722	Torx Screw M6 X 20
610	250000722	Torx Screw M6 X 20
615	234062670	Stainless Steel Flat Washer
620	250100198	Panel Nut M6 X 1.0 This part replaces 250000957.
630	517303756	Grommet
640	520000271	Amber, Reflector
650	250000720	Torx Screw K50 X 16
660	705011806	LH Reflector Support
665	705011814	RH Reflector Support
700	705012476	Gulfstream Blue, Front Hood
800	703501021	Radiator Front Grille This part replaces 705012694.
810	517302785	Edge Clip
820	250000720	Torx Screw K50 X 16
830	250200025	Washer M5
900	705010885	Logo
910	250000725	Screw M4 X 16
1120	250100198	Panel Nut M6 X 1.0 This part replaces 250000957.
1600	705017559	LH Front Radiator Deflector This part replaces 705010626.
1700	705017560	RH Front Radiator Deflector This part replaces 705010627.
1710	250000722	Torx Screw M6 X 20
1720	517302785	Edge Clip
1725	250100198	Panel Nut M6 X 1.0 This part replaces 250000957.
1800	705010628	LH Light Cover
1900	705017566	RH Headlight Trim This part replaces 705010629.
3411	250000712	Torx Screw M6 X 20
3415	233261494	Hex. Flange Elastic Nut M6
3511	250000712	Torx Screw M6 X 20
