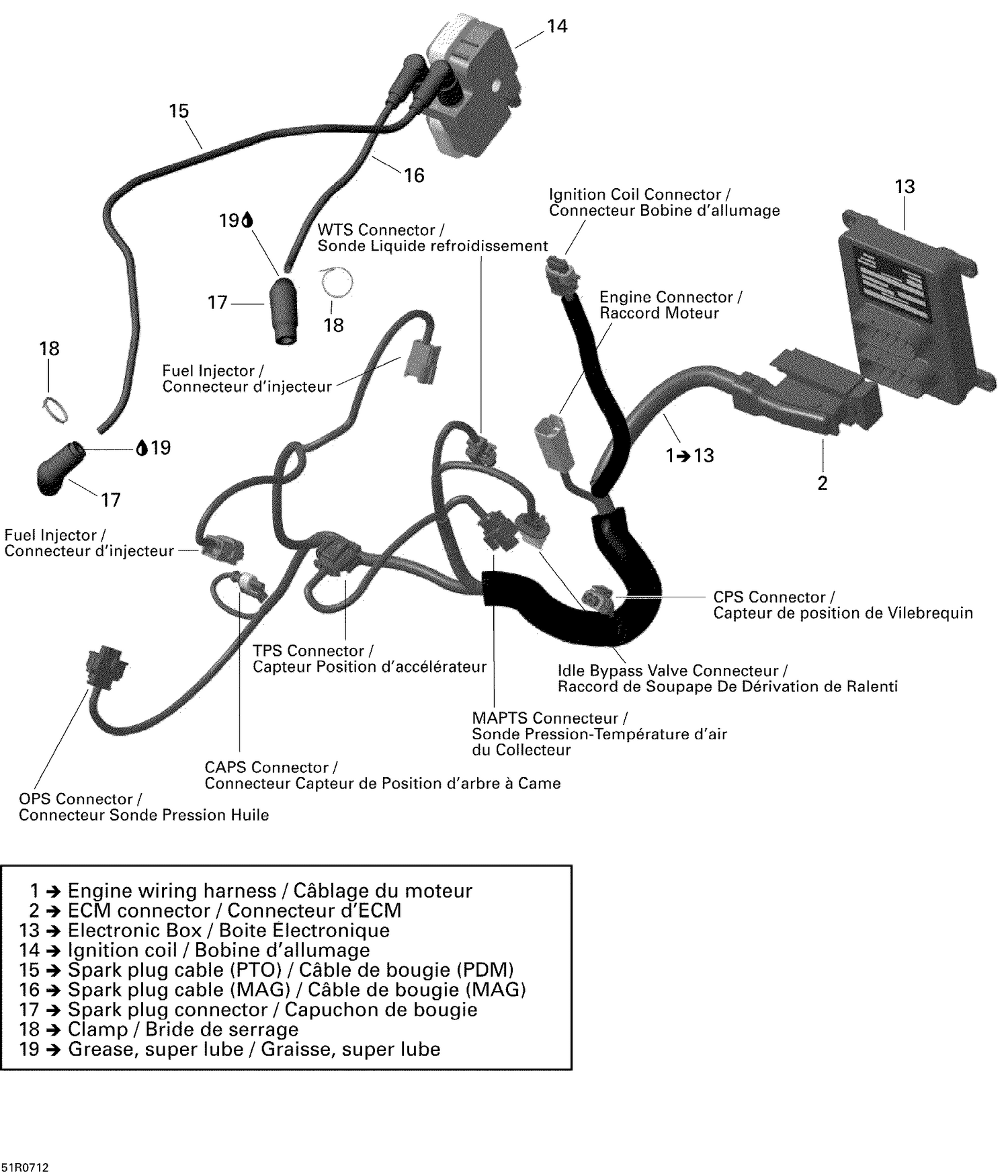

10- Engine Harness And Electronic Module
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420665245 | ENGINE WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 2 | 420664450 | ECM Connector |
| 13 | 420665910 | ELECTRONIC BOX - Call your local BRP dealership |
| 14 | 278001546 | Double ignition coil This part replaces 420266070. |
| 15 | 420665333 | Spark Plug Cable This part replaces 420665330. |
| 16 | 420665333 | Spark Plug Cable This part replaces 420664300. |
| 17 | 420265248 | Spark Plug Connector This part replaces 420265240. |
| 18 | 420866710 | Tie-Wrap 142x2.5 mm |
