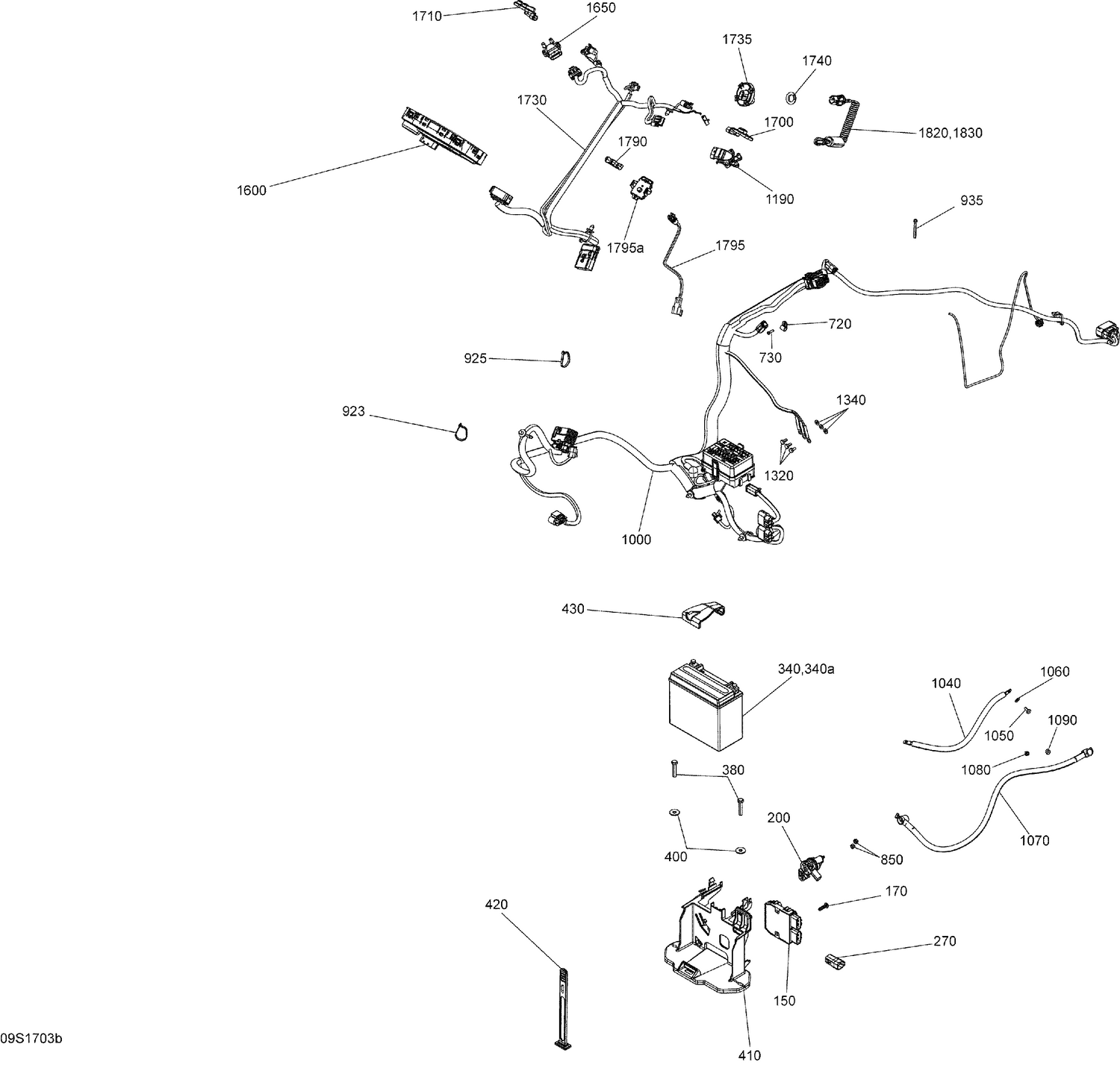

10- Electrical System - All Models
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 710001103 | Voltage Regulator |
| 170 | 250000466 | Torx Screw Plastite M6 |
| 200 | 278003012 | Starter Relay |
| 270 | 278002704 | Diagnostic Connector |
| 340a | 250000282 | Battery Bolt Kit |
| 380 | 207184060 | Hex. Screw M8 X 40 |
| 400 | 234082600 | Flat Washer 8 mm, Stainless |
| 410 | 278003136 | Batt. Support |
| 420 | 269502417 | Strap This part replaces 269500408. |
| 430 | 278003521 | Clip This part replaces 278003359. |
| 850 | 232561200 | Brass Elastic Stop Nut M6 |
| 923 | 293750008 | Tie Wrap 368 mm |
| 925 | 414115200 | Tie-Rap 180 mm |
| 935 | 293750047 | Tie Rap, 533 mm |
| 1040 | 278003211 | Ground Cable |
| 1050 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1060 | 234061600 | Stainless Flat Washer M6 |
| 1070 | 278003369 | Starter Cable |
| 1080 | 232561200 | Brass Elastic Stop Nut M6 |
| 1090 | 234061600 | Stainless Flat Washer M6 |
| 1190 | 278002284 | LH Throttle Sensor |
| 1320 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1340 | 234061600 | Stainless Flat Washer M6 |
| 1650 | 278002283 | Throttle Position Sensor |
| 1700 | 278002767 | Switch LH VTS/Sport/Eco |
| 1710 | 278002602 | Switch RH Mode/Set |
| 1735 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 1740 | 278002963 | Safety Nut (DESS Switch) |
| 1790 | Not | Available As Spare Part - Non Applicable |
| 1820 | 278003400 | Safety Lanyard Ass'y, RFID |
