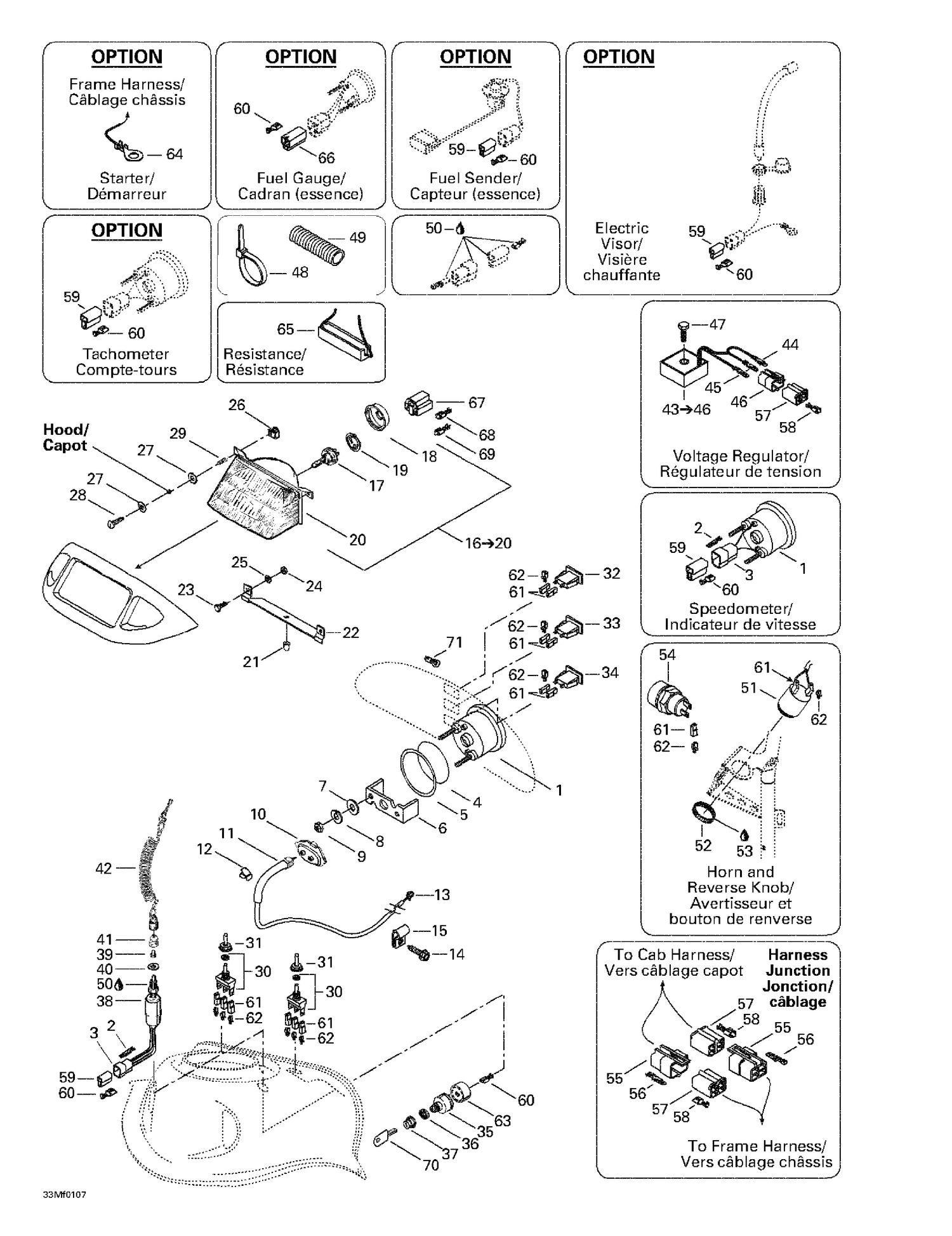

| Ref | Part Number | Description |
|---|
| 1 |
515175335 |
Speedometer, Kmh |
| 2 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 3 |
409204500 |
MALE HOUSING - Call your local BRP dealership |
| 4 |
414807100 |
O-Ring |
| 5 |
517258500 |
Washer |
| 6 |
414806500 |
Case Holder |
| 7 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 8 |
414806700 |
Lock Washer |
| 9 |
414806900 |
Nut |
| 10 |
515175400 |
Drive Angle |
| 11 |
414761400 |
Speedometer Cable |
| 12 |
414227300 |
Clip |
| 13 |
572010100 |
SPEEDO DRIVE INSERT - Call your local BRP dealership |
| 14 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 15 |
414176000 |
Open Clamp |
| 17 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 18 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 19 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 20 |
410609300 |
Headlamp |
| 21 |
410608200 |
RUBBER STOPPER - Call your local BRP dealership |
| 22 |
517218500 |
Headlamp Support |
| 23 |
207151244 |
Hex. Screw M5 X 12 |
| 24 |
232551414 |
Elastic Stop Nut M5 |
| 25 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 26 |
572078600 |
Projector Nut |
| 27 |
234051410 |
Flat Washer M5 |
| 28 |
243244040 |
PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership |
| 29 |
517168600 |
Spring |
| 30 |
410107300 |
Switch (Heating Grip) |
| 31 |
515175281 |
Switch Cover |
| 32 |
515175728 |
PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership This part replaces 515175591. |
| 33 |
515175726 |
PILOT LAMP, HEADLAMP - Call your local BRP dealership This part replaces 515175592. |
| 34 |
410113400 |
PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership |
| 35 |
410111200 |
IGNITION SWITCH - Call your local BRP dealership |
| 36 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 37 |
570013700 |
Switch Boot |
| 38 |
515175653 |
Brake Switch This part replaces 515175571. |
| 39 |
570151100 |
Plunger Cap |
| 40 |
Not |
Available As Spare Part - Washer |
| 41 |
515145900 |
Switch Nut |
| 42 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 44 |
Not |
Available As Spare Part - Male Terminal |
| 45 |
Not |
Available As Spare Part - Male Terminal |
| 46 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 47 |
210263580 |
SCREW-FORMING HEX.HD.FL.GM6174M - Call your local BRP dealership |
| 48 |
293750001 |
Tie Wrap 94 mm |
| 49 |
219704407 |
Tubing 10 MM 1000MM Long |
| 50 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 51 |
515176035 |
HORN - Call your local BRP dealership This part replaces 415060900. |
| 52 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 54 |
415130372 |
Push Button This part replaces 415101200. |
| 55 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 56 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 57 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 58 |
515175253 |
FEMALE TERMINAL - Call your local BRP dealership |
| 59 |
409204600 |
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| 60 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 61 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 62 |
409010100 |
Female Terminal |
| 63 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 64 |
409012500 |
Open Barrel |
| 65 |
515175241 |
Resistance |
| 66 |
409204300 |
Female Housing |
| 67 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 68 |
515175320 |
FEMALE TERMINAL - Call your local BRP dealership |
| 69 |
409011500 |
FEMALE TERMINAL - Call your local BRP dealership |
| 70 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 71 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 72 |
515175362 |
Frame Harness (Not Shown) |
| 293750002 |
Tie |
Wrap 142 mm 293750002 |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
| 515175336 |
Indicateur |
De Vitesse, Mph 515175336 |
| 515175336 |
Speedometer, |
Mph 515175336 |
