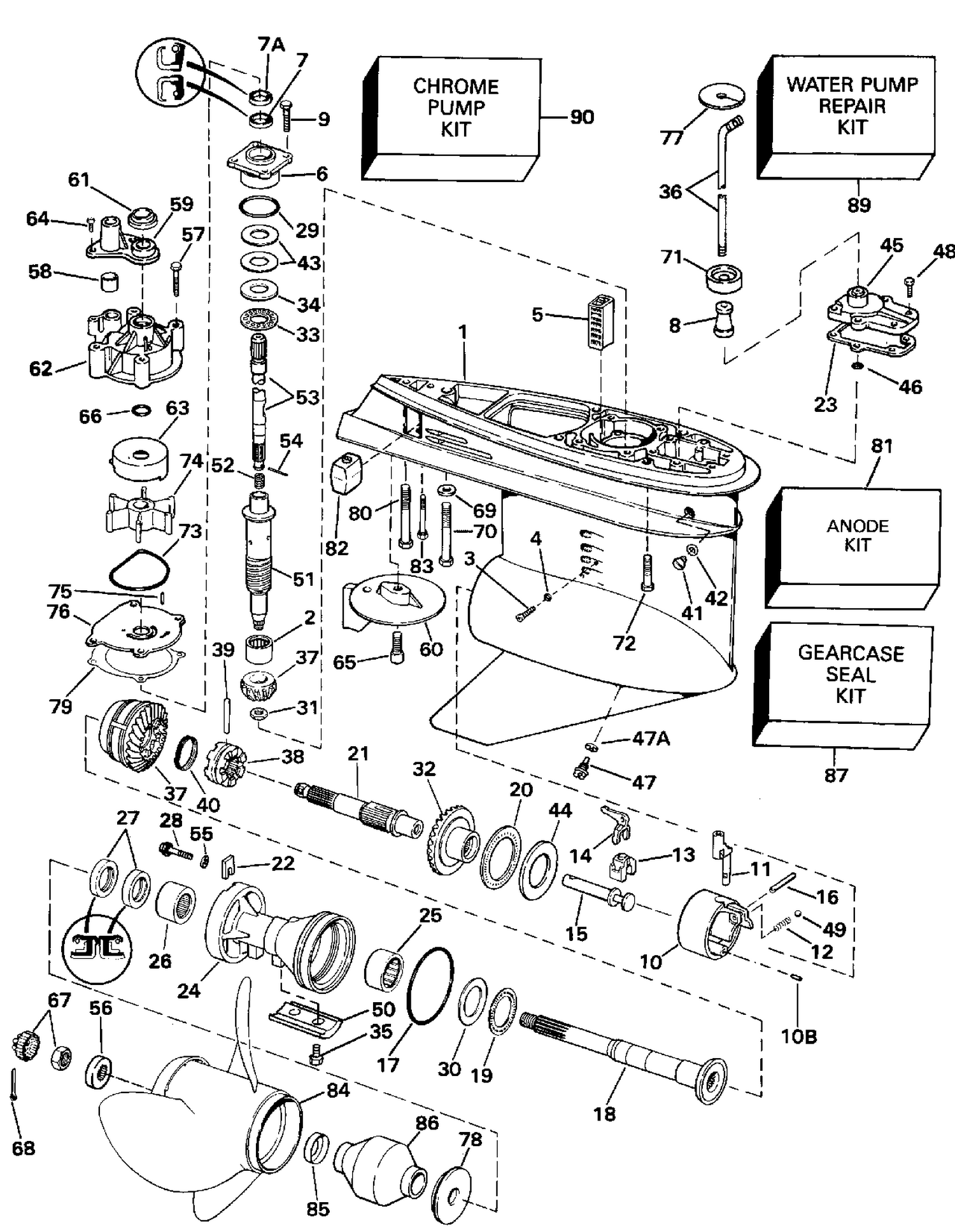

| Ref | Part Number | Description |
|---|
| 17 |
0305123 |
O RING |
| 26 |
0434467 |
NEEDLE BEARING ASSY. |
| 36 |
0329865 |
SHIFT ROD |
| 37 |
0435933 |
GEARSET ASSY. This part replaces 0431802. |
| 52 |
0335684 |
DRIVESHAFT SPRING |
| 53 |
5007672 |
DRIVESHAFT Assembly, Upper This part replaces 0337059. |
| 57 |
0335221 |
SCREW, Throttle body to reed plate This part replaces 0328715. |
| 60 |
0338743 |
TRIM TAB This part replaces 0333961. |
| 62 |
0435485 |
IMPELLER HOUSING ASSY. This part replaces 0395040. |
| 63 |
0435027 |
CUP & PLATE This part replaces 0330379. |
| 63 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0330384. |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 66 |
0332000 |
SEAL RING |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 76 |
0435027 |
CUP & PLATE This part replaces 0330380. |
| 76 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0330383. |
| 77 |
0322302 |
SEAL, Adapter to frame |
| 80 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 81 |
0392160 |
ANODE KIT |
| 84 |
0390821 |
PROPELLER, 14 1/2 x 19 SST II |
| 84 |
0390822 |
PROPELLER 14-1/4 X 21 |
| 84 |
0390823 |
PROPELLER 14-1/4 X 23 |
| 84 |
0394214 |
LH SRX 14 1/2 x 27 |
| 84 |
0394215 |
PROPELLER, 14 1/2 X 29 OMC RAKER |
| 84 |
0398502 |
PROPELLER, 14 1/2 X 20 RACKER |
| 84 |
0398503 |
LH Raker 14 1/2 x 22 |
| 84 |
0398504 |
LH Raker 14 1/2 x 24 |
| 84 |
0398505 |
LH Raker 14 1/2 x 26 |
| 84 |
0398506 |
LH Raker 14 1/2 x 28 |
| 84 |
0431930 |
PROPELLER, 15 x 17 SSS II |
| 87 |
5006373 |
GEARCASE SEAL KIT This part replaces 0434516. |
| 89 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0395060. |
| 955 |
515178223 |
Clip Connector |
| 1400 |
710010539 |
Voltage Regulator This part replaces 710005569. |
| 1410 |
293150182 |
Monobolt Rivet 6.4 |
| 2900 |
515179519 |
SUB HARNESS ALPINE - Call your local BRP dealership |
| 2910 |
270000141 |
Clip |
| 2915 |
293150037 |
Avdel Rivet 3/16" |
| 3003 |
250000742 |
Torx Screw M5 X 14 |
| 3005 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 3020 |
293150027 |
Avdel Rivet |
| 3060 |
515180200 |
Engine Assembly |
| 3061 |
515178897 |
Stop Plate |
| 3070 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 3120 |
210262040 |
Hex. HD. Forming Screw M6 x 20 |
| 3600 |
515178338 |
Ground Wire |
| 3605 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 3607 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 |
250000911 |
Hex. Flange Screw M5 X 16 |
| 4090 |
515178244 |
Support |
| 4091 |
293150103 |
Pop Rivet 3/16 |
| 4092 |
293150104 |
Pop Rivet 3/16 |
| 4100 |
278003012 |
Starter Relay |
| 4200 |
515178336 |
Battery Wire |
| 4210 |
232561434 |
Elastic Stop Nut M6 |
| 4220 |
234061410 |
Flat Washer 6 mm |
| 4240 |
232561434 |
Elastic Stop Nut M6 |
| 4327a |
250000282 |
Battery Bolt Kit |
| 4330 |
710001817 |
Protector Cap |
| 4340 |
515178658 |
Battery Strip |
| 4350a |
515178659 |
Battery Support Under |
| 4360 |
293150103 |
Pop Rivet 3/16 |
| 4370 |
250000843 |
Torx Truss Screw M6 X 30 |
| 4371 |
224061121 |
Flat Washer |
| 4700 |
515178564 |
Cable |
| 4720 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 4730 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 0435300 |
0435300 |
GEARCASE ASSY., Complete |
