Home / BRP / JOHNSON / 1978 / 25 / 25E78C 1978 / GEARCASE - 35

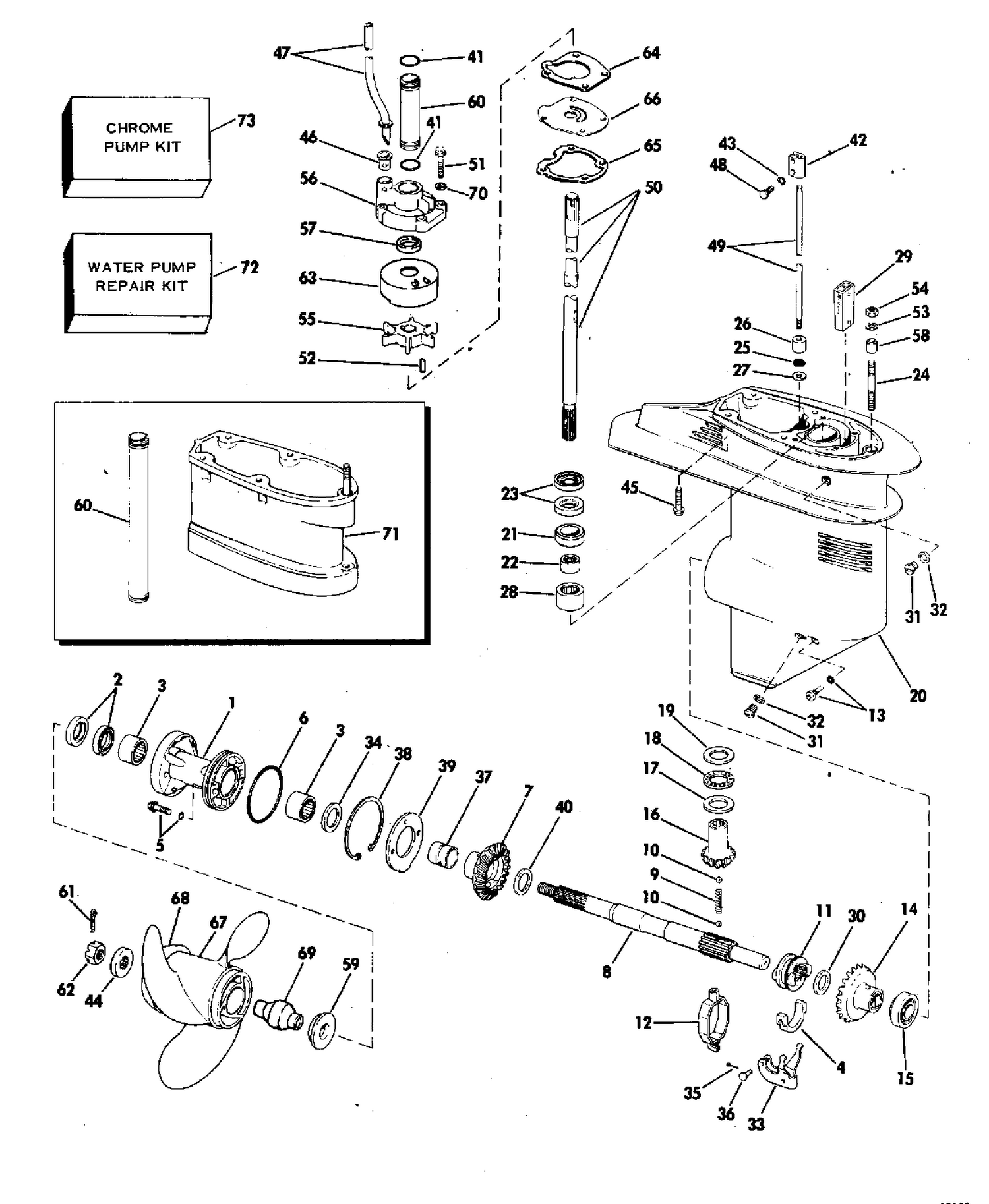

GEARCASE - 35

GEARCASE - 35

Parts (43)

RefPart NumberDescription
1 5008160 LOGEMENT DE ROULEMENT & JOINT This part replaces 0387023.
4 0321512 CRADLE, Clutch dog
7 0322080 GEAR, Reverse
8 0386418 PROPELLEER SHAFT
9 0323278 SPRING, Detent
11 0319565 SHIFTER, Clutch dog
14 0388125 GEAR & BUSHING ASSY., Fwd
16 0322079 PINION, Driveshaft
17 0322688 THRUST WASHER, Bearing
19 0319667 THRUST WASHER
20 0389729 GEARCASE, Bearing & seal
25 0301877 O RING SHIFT ROD
30 0319686 THRUST WASHER, Front
33 0320118 LEVER, Shifting
40 0319685 THRUST WASHE,Rear
42 0304081 CONNECTOR 5 " EXTENSION KIT
45 0909533 SCREW, Pressure relief valve cover This part replaces 0324429.
47 0322077 WATER TUBE, Standard
47 0322078 WATER TUBE, Long
49 0319678 SHIFT ROD, Lower std
49 0319679 SHIFT ROD, Lower Long
50 0323261 DRIVESHAFT, Std
50 0323262 DRIVESHAFT, Long
51 0324960 SCREW, Impeller housing This part replaces 0323310.
52 0300611 AXE, turbine vers arbre d'entraînement
55 0388702 IMPELLER ASSY
56 0390159 IMPELLER HOUSING & SEAL This part replaces 0388890.
59 0319890 THRUST BUSHING, Prop
60 0326692 SPACER, Impeller housing This part replaces 0322408.
64 0323311 GASKET, Housing to plate
65 0323312 GASKET, Plate to gearcase
66 0323251 PLATE, Impeller housing
67 0387320 PROPELLER 11 1/4 X 7 AL
67 0387525 PROPELLER 10 1/2 X 11 SST
67 0387526 PROPELLER 11 X 9 SST
67 0765048 PROPELLER, Aluminum, 3 x 11 in. x 9 P This part replaces 0386317.
67 0765049 PROPELLER This part replaces 0386637.
67 0778863 PROPELLER This part replaces 0386933.
72 0391631 WATER PUMP KIT This part replaces 0388891.
73 0389119 CHROME CUP & PLATE KIT
0317178 0317178 O RING
0389693 0389563 EXTENSION KIT ASSY This part replaces 0389693.
0389730 0389730 GEARCASE ASSY
