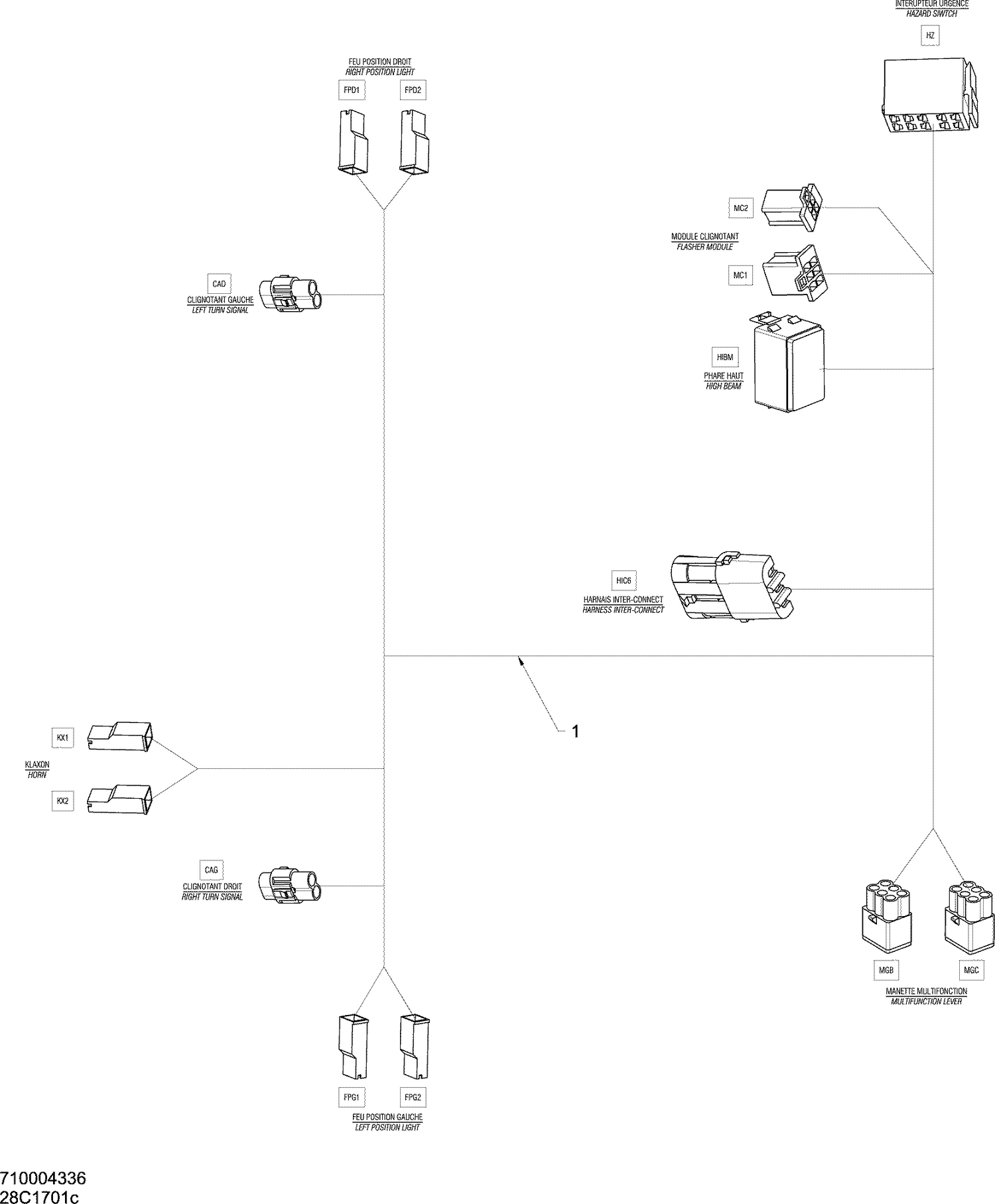

10- Main Harness - EUROPE
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| CAD | 409012100 | Female Terminal |
| CAD | 409012300 | Seal |
| CAG | 409012100 | Female Terminal |
| CAG | 409012300 | Seal |
| D3 | 409012700 | Diode |
| D4 | 409012700 | Diode |
| FPD1 | 219704448 | SHRINK TUBING 500MM LONG - Call your local BRP dealership |
| FPD1 | 409010100 | Female Terminal |
| FPD1 | 409010400 | Female Terminal Housing, 1 Circuit |
| FPD2 | 219704448 | SHRINK TUBING 500MM LONG - Call your local BRP dealership |
| FPD2 | 409010100 | Female Terminal |
| FPD2 | 409010400 | Female Terminal Housing, 1 Circuit |
| FPG1 | 219704448 | SHRINK TUBING 500MM LONG - Call your local BRP dealership |
| FPG1 | 409010100 | Female Terminal |
| FPG1 | 409010400 | Female Terminal Housing, 1 Circuit |
| FPG2 | 219704448 | SHRINK TUBING 500MM LONG - Call your local BRP dealership |
| FPG2 | 409010100 | Female Terminal |
| FPG2 | 409010400 | Female Terminal Housing, 1 Circuit |
| HIBM | 710002863 | Terminal |
| HIC6 | 278000222 | Male Terminal |
| HIC6 | 278000281 | Female Terminal Housing, 3 Circuits |
| HIC6 | 278001065 | Wire Seal |
| HIC6 | 710000992 | Clip |
| HZ | 710001931 | Terminal |
| HZ | 710002000 | Housing |
| KX1 | 219704448 | SHRINK TUBING 500MM LONG - Call your local BRP dealership |
| KX1 | 409010100 | Female Terminal |
| KX1 | 409010400 | Female Terminal Housing, 1 Circuit |
| KX2 | 219704448 | SHRINK TUBING 500MM LONG - Call your local BRP dealership |
| KX2 | 409010100 | Female Terminal |
| KX2 | 409010400 | Female Terminal Housing, 1 Circuit |
| MC1 | 710002314 | Housing |
| MC1 | 710002315 | Terminal |
| MC2 | 710002313 | Housing |
| MC2 | 710002315 | Terminal |
| MGB | 409012100 | Female Terminal |
| MGB | 409012300 | Seal |
| MGB | 710000080 | Cap |
| MGB | 710000081 | Female Housing, 6 Circuits |
| MGC | 409012100 | Female Terminal |
| MGC | 409012300 | Seal |
| MGC | 710000080 | Cap |
| MGC | 710000081 | Female Housing, 6 Circuits |
