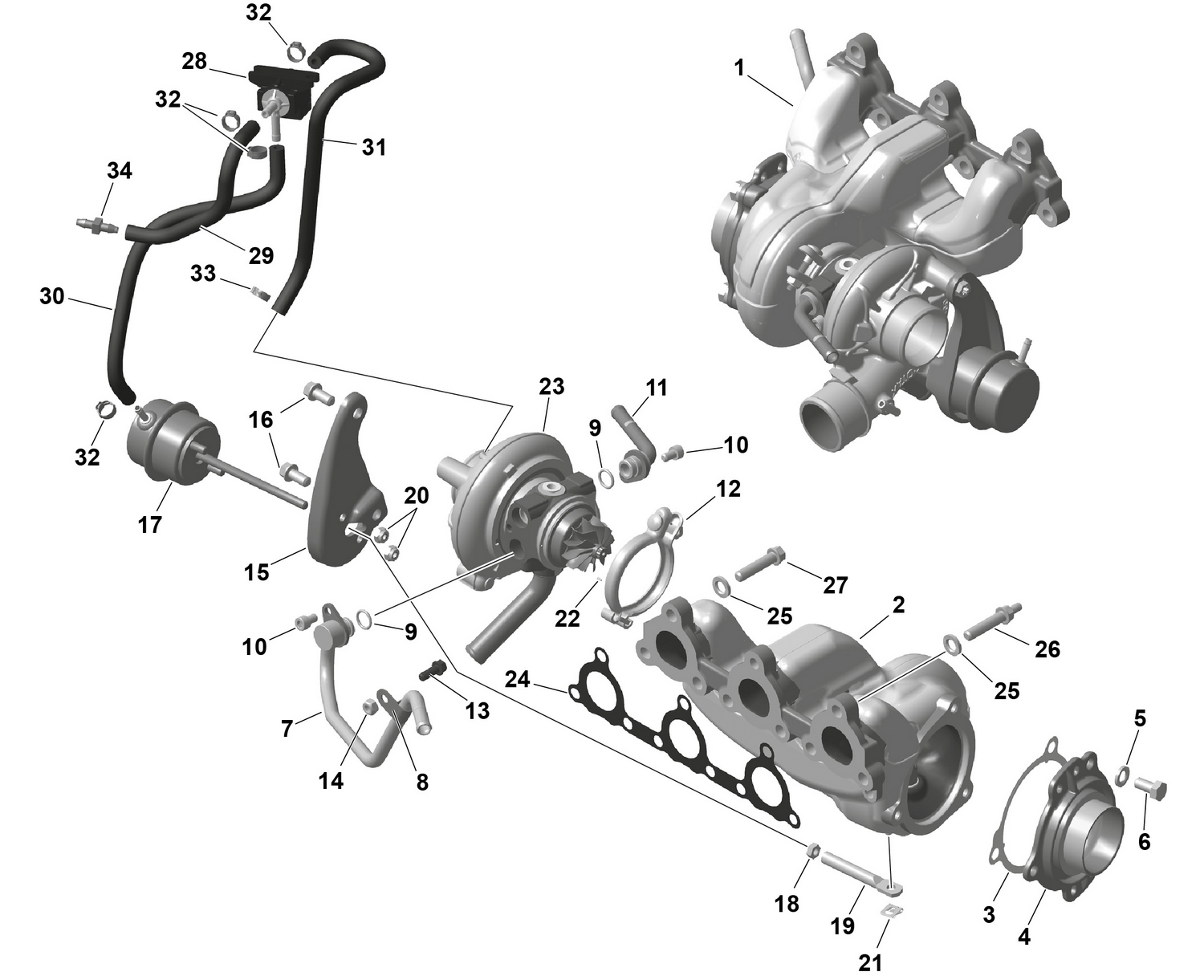

01- ROTAX - Turbocharger
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 420431941 | Exhaust Gasket |
| 4 | 420873511 | Exhaust Flange |
| 5 | 420827521 | Washer |
| 6 | 420940586 | Hex Screw M8 X 16 |
| 7 | 420822894 | Cooling Water Tube Ass'y |
| 8 | 420851101 | Cable Clamp |
| 9 | 420650928 | O-Ring |
| 10 | 420241081 | Allen Screw M6 X 10 |
| 11 | 420622063 | Cooling Water Pipe |
| 12 | 420651871 | V-Band Clamp Ass'y 58MM |
| 13 | 420440162 | Flanged Torx Screw M6 X 16 |
| 14 | 420942046 | Lock Nut M6-10 |
| 15 | 420651855 | Wastegate Support |
| 16 | 420440854 | Hex./Torx Flange Screw M8 x 16 |
| 18 | XXX | Not Available As Spare Parts |
| 19 | XXX | Not Available As Spare Parts |
| 20 | 420842041 | Lock Nut M6 |
| 21 | 420845000 | Circlip |
| 22 | 420629310 | Needle Pin |
| 23 | XXX | Not Available As Spare Parts |
| 25 | 420827521 | Washer |
| 26 | 420440693 | Collar Screw M8 X 35 |
| 27 | 420641188 | Flanged Torx Screw M8 X 35 This part replaces 420440867. |
| 28 | 420664636 | Solenoid Valve |
| 29 | 420201233 | Hose 390MM This part replaces 420201231. |
| 30 | 420201233 | Hose 390MM This part replaces 420201232. |
| 31 | 420201233 | Hose 390MM |
| 32 | 420853133 | Clamp 9.2-10.9 mm |
| 33 | 420851468 | Gear Clamp |
