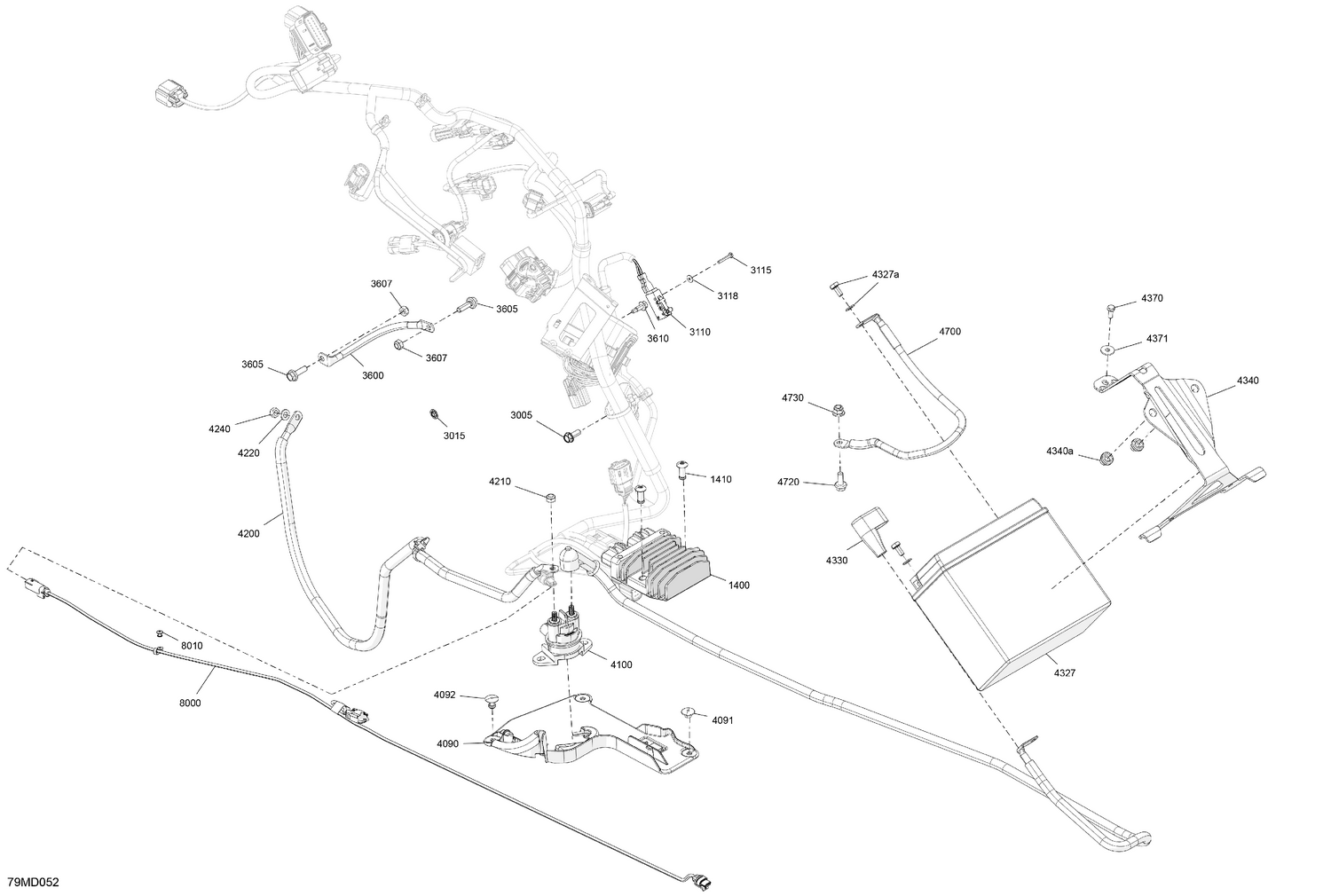

08- Electric - Lower Section
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1400 | 710010539 | Voltage Regulator This part replaces 710005569. |
| 1410 | 293150182 | Monobolt Rivet 6.4 |
| 3005 | 250001062 | Hex. Flange Screw M6 X 16 |
| 3015 | 250001189 | Push Nut |
| 3110 | 515177460 | Switch Ass'y |
| 3115 | 207132044 | Hex Screw M3 X 20 |
| 3118 | 234032600 | Flat Washer M3, Stainless |
| 3600 | 515178338 | Ground Wire |
| 3605 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3607 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 | 250000911 | Hex. Flange Screw M5 X 16 |
| 4090 | 515178244 | Starter Relay Support |
| 4091 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 4092 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 4100 | 278003012 | Starter Relay |
| 4200 | 515178336 | Battery Wire |
| 4210 | 232561434 | Elastic Stop Nut M6 |
| 4220 | 234061410 | Flat Washer 6 mm |
| 4240 | 232561434 | Elastic Stop Nut M6 |
| 4327a | 250000282 | Battery Bolt Kit |
| 4330 | 710001817 | Protector Cap |
| 4340a | 293450275 | Insert |
| 4370 | 207151244 | Hex. Screw M5 X 12 |
| 4371 | 391301600 | Washer |
| 4700 | 515178155 | Ground Wire |
| 4720 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4730 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 8000 | 515178265 | Rear Light Harness |
