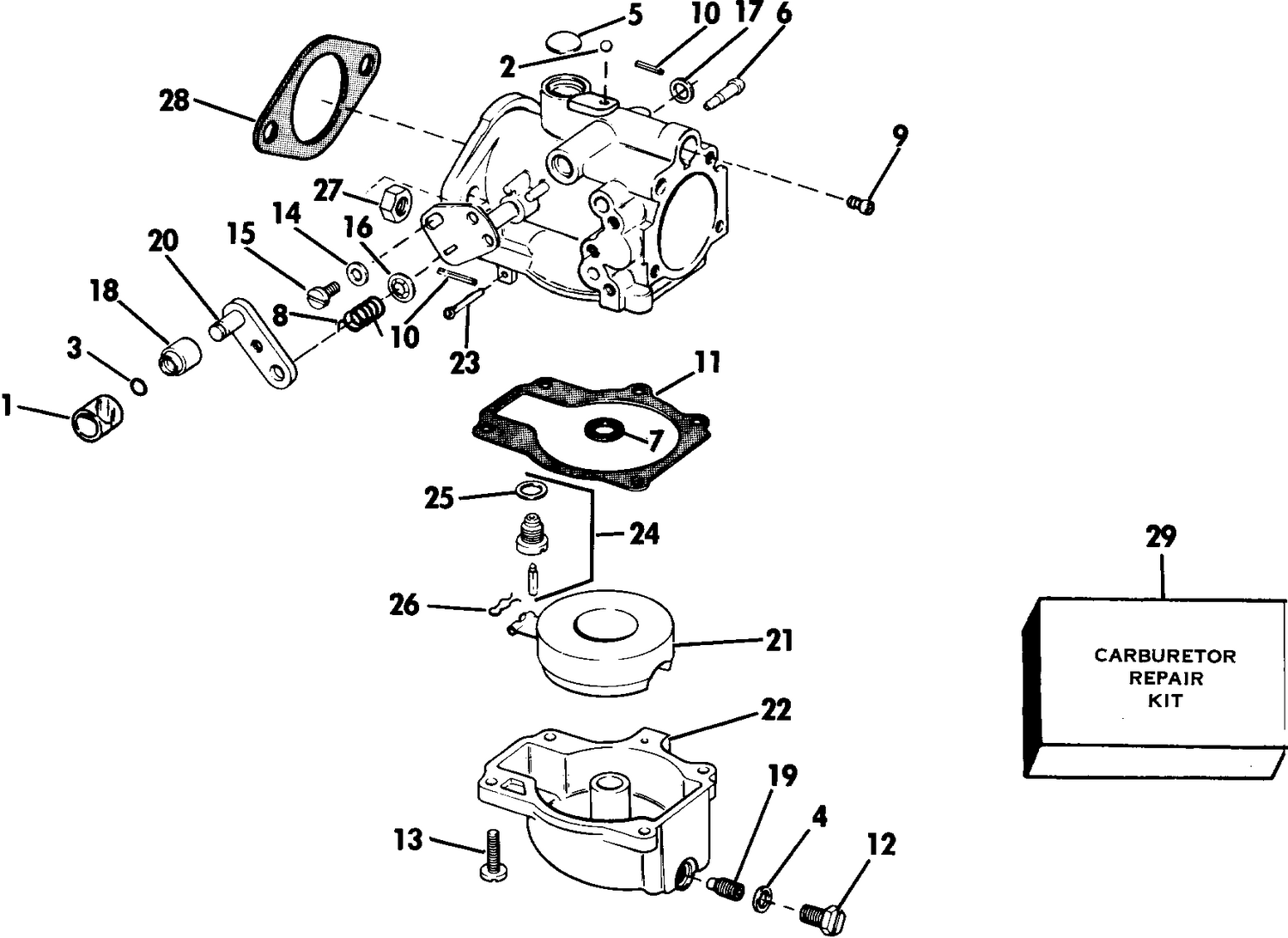

CARBURETOR
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0330787 | SLEEVE, Roller |
| 3 | 0308776 | O-RING |
| 13 | 0319682 | VIS, capteur vers plaque |
| 18 | 0330056 | ROLLER, Cam follower |
| 26 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 27 | 0316355 | BUT, Carburetor mounting |
| 28 | 0325092 | GASKET |
| 0396290 | 0396290 | CARB. ASSY., Upper, long |
| 0396291 | 0396291 | CARB. ASSY., Lower, long |
| 0396310 | 0396310 | CARB. ASSY., Upper, std. |
| 0396311 | 0396311 | CARB. ASSY., Lower, std. |
