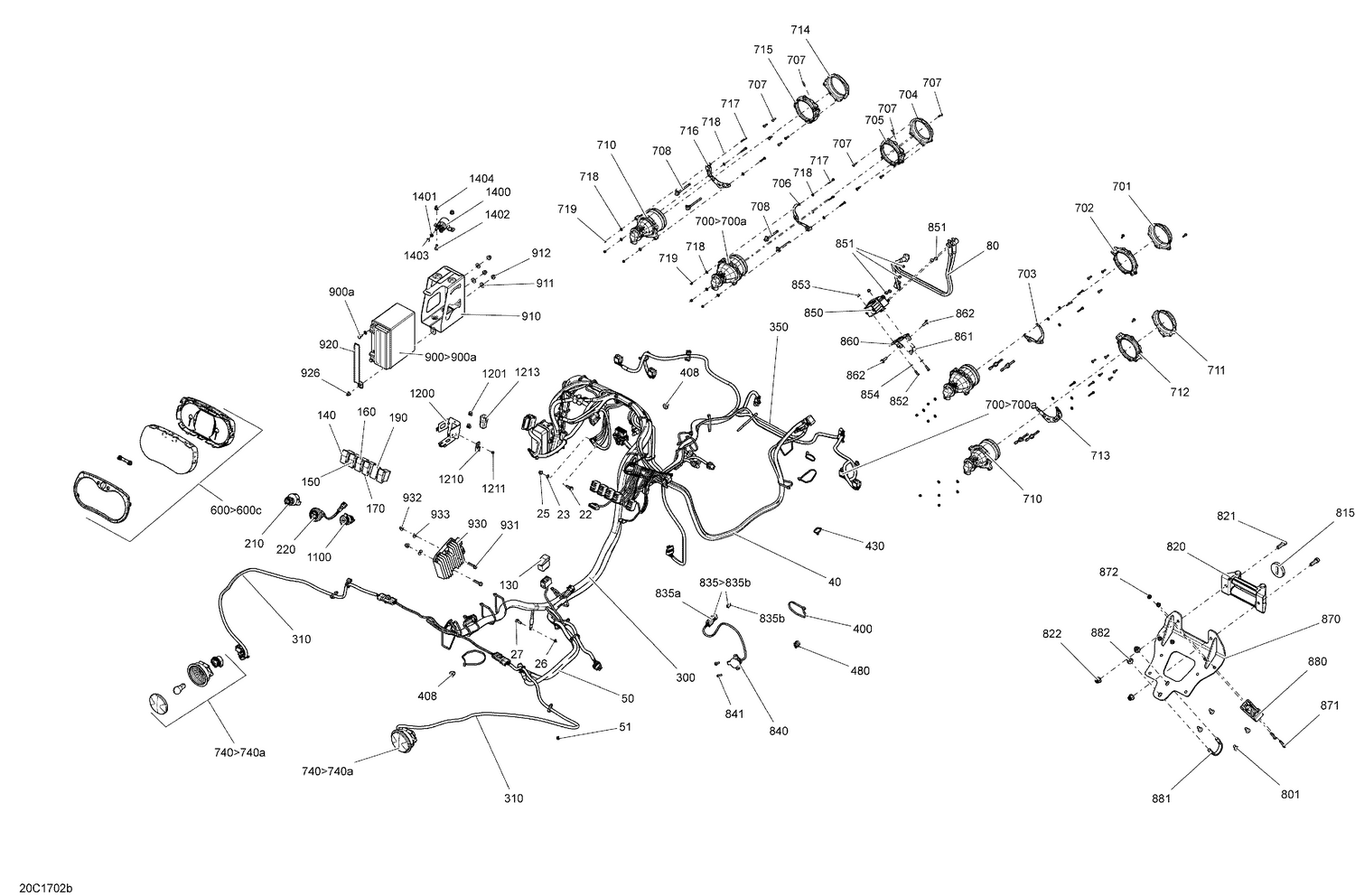

10- Electrical System - 1000R EFI Package XMR
Parts (97)
| Ref | Part Number | Description |
|---|---|---|
| 22 | 207662044 | Hex. Flange Screw M6 X 20 |
| 23 | 234461608 | External Serrated Lock Washer 6 mm |
| 25 | 233061414 | Hex. Flange Nut M6 |
| 26 | 234461608 | External Serrated Lock Washer 6 mm |
| 27 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 40 | 710005214 | Negative Winch Cable |
| 50 | 710004383 | Positive Cable |
| 51 | 232561414 | Elastic Stop Nut M6 |
| 80 | 710005216 | WINCH CABLES - Call your local BRP dealership |
| 130 | 710002053 | Switch, Over ride |
| 140 | 710001725 | Hi/Low Switch |
| 150 | 710001737 | Interrupteur 4X4 |
| 160 | 710003541 | Switch PPS Sport |
| 170 | 710001781 | Switch DPS |
| 180 | 710002052 | Switch Winch |
| 190 | 710007173 | Plug Carling This part replaces 710001999. |
| 210 | 710008400 | Ignition Switch This part replaces 710003847. |
| 220 | 710002594 | Engine Start Button |
| 300 | 710005228 | WIRING HARNESS ASSY - Call your local BRP dealership |
| 310 | 710004685 | WIRING HARNESS REAR - Call your local BRP dealership |
| 350 | 710005215 | Winch Harness Ass'y |
| 400 | 293750008 | Tie Wrap 368 mm |
| 408 | 293730040 | Mount Dart This part replaces 293730018. |
| 430 | 710002896 | Tie-Rap Clip |
| 443 | 414227300 | Clip |
| 445 | 414115200 | Tie-Rap 180 mm |
| 458 | 293750009 | Tie-Rap 173 mm |
| 480 | 710003168 | Dart Tie Rap 200MM |
| 486 | 293750002 | Tie Wrap 142 mm |
| 600a | 415129348 | Gauge Ring |
| 600b | 415129349 | Lens |
| 600c | 415129355 | Speedometer Button |
| 700a | 415129249 | Halogen Bulb |
| 701 | 710001081 | RH Low Front Housing |
| 702 | 710001082 | RH Low Rear Housing |
| 703 | 710001094 | RH Low Light Support |
| 704 | 710001083 | LH Low Front Housing |
| 705 | 710001084 | LH Low Rear Housing |
| 706 | 710001037 | LH Low Light Support |
| 707 | 250000723 | Phillips Screw K40 X 16 |
| 708 | 710001147 | Setting Screw |
| 710 | 710002525 | High Beam Ass'y |
| 711 | 710001085 | RH High Front Housing |
| 712 | 710001086 | RH High Rear Housing |
| 713 | 710001115 | RH High Light Support |
| 714 | 710001087 | LH High Front Housing |
| 715 | 710001088 | LH High Rear Housing |
| 716 | 710001036 | LH High Light Support |
| 717 | 207142544 | Hex. Screw M4 X 25 |
| 718 | 234051410 | Flat Washer M5 |
| 719 | 232541414 | Elastic Stop Nut M4 |
| 740a | 520000758 | Bulb |
| 800 | 710006993 | Electric Winch This part replaces 710005514. |
| 801 | 235382046 | TORX SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 810 | 705014949 | Winch Hook Kit This part replaces 715003523. |
| 815 | 710007028 | Stopper This part replaces 710005142. |
| 820 | 710007082 | Fairlead Roller This part replaces 710004822. |
| 821 | 205003044 | Socket Screw M10 x 30 |
| 822 | 233201414 | Hex. Flange Elastic Nut M10 |
| 835a | 278000281 | Female Terminal Housing, 3 Circuits |
| 835b | 710000992 | Clip |
| 840 | 710007053 | Wiring Harness_Switch Winch This part replaces 710005258. |
| 841 | 250000720 | Torx Screw K50 X 16 |
| 850 | 710006991 | Solenoid This part replaces 710004824. |
| 851 | 232561434 | Elastic Stop Nut M6 |
| 852 | 207151644 | Hex. Screw M5 X 16 |
| 853 | 233251494 | Elastic Flange Nut M5 |
| 854 | 234051410 | Flat Washer M5 |
| 860 | 710004119 | Solenoids Support |
| 861 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 862 | 207662044 | Hex. Flange Screw M6 X 20 |
| 870 | 715001699 | Winch Support |
| 871 | 207064044 | Hex. Screw M6 X 40 |
| 872 | 233261494 | Hex. Flange Elastic Nut M6 |
| 880 | 705006999 | CLAMP - Call your local BRP dealership |
| 881 | 705203504 | U-BOLT M10 - Call your local BRP dealership |
| 882 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 900a | 250000282 | Battery Bolt Kit |
| 910 | 710003129 | Battery Support |
| 911 | 234062410 | Flat Washer 6 mm |
| 912 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 920 | 710001916 | Battery Holder |
| 926 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 930 | 710001191 | Voltage Regulator |
| 931 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 932 | 233261494 | Hex. Flange Elastic Nut M6 |
| 933 | 234062670 | Stainless Steel Flat Washer |
| 1100 | 710001248 | DC Outlet |
| 1200 | 710003335 | Fuse Holder |
| 1201 | 293150103 | Pop Rivet 3/16" |
| 1210 | 270000141 | Clip |
| 1211 | 390402400 | Pop Rivet 3/16" |
| 1213 | 710003006 | Housing |
| 1400 | 710007777 | Starter Relay This part replaces 710001364. |
| 1401 | 234161601 | Lock Washer Helical M6 |
| 1402 | 250000717 | Torx Head Screw M6 X 16 |
| 1403 | 232061600 | Hex. Nut M6 |
