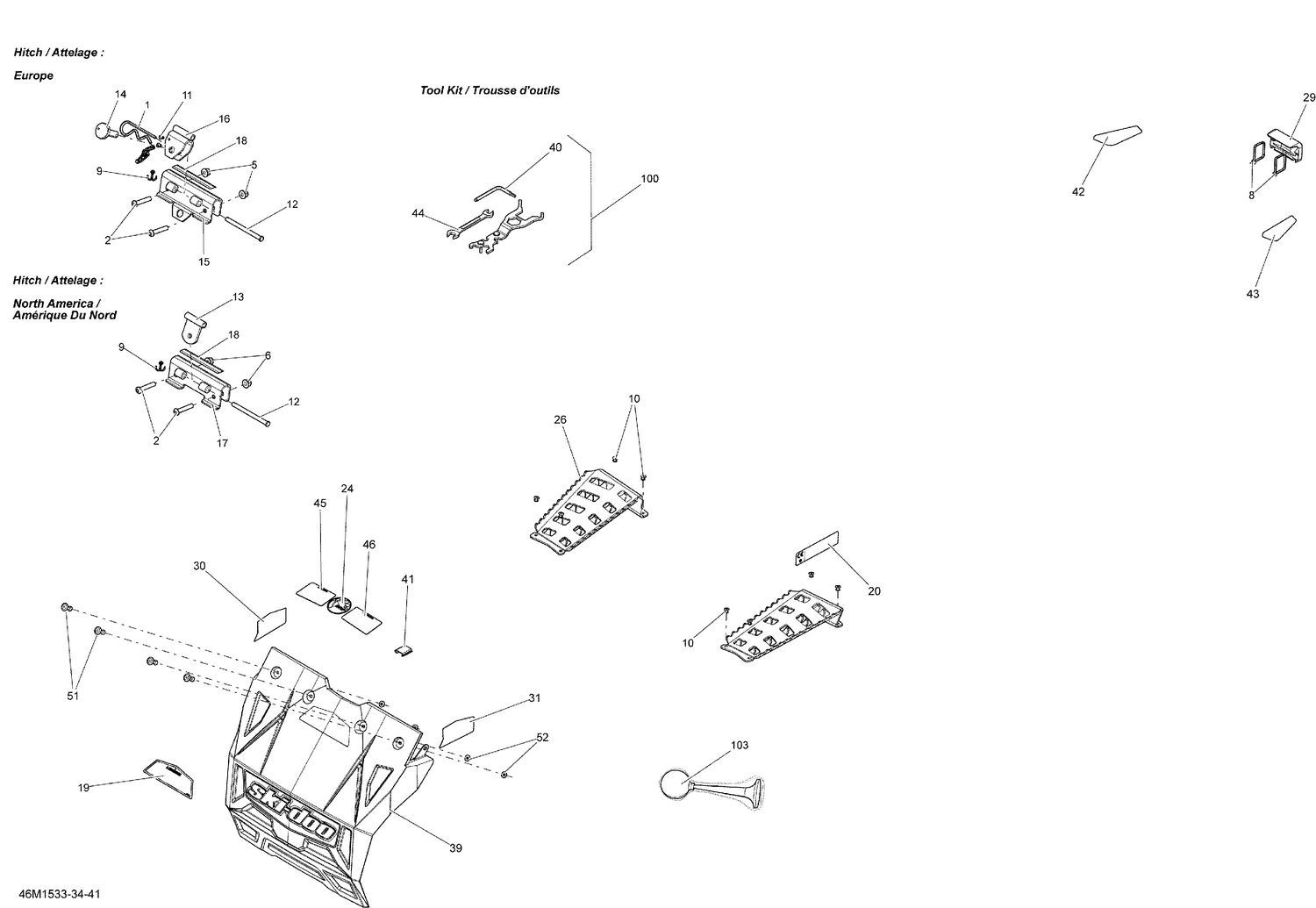

09- Utilities _46M1533
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114045200 | Hair Pin |
| 2 | 205484546 | Socket Head Screw M8 X 45 |
| 5 | 233281414 | Hex. Flange Elastic Nut M8 |
| 6 | XXX | Not Available As Spare Parts |
| 8 | 293750018 | Tie Rap 371 mm |
| 9 | 371800200 | Cotter Pin |
| 10 | 390402200 | Pop Rivet 3/16" |
| 11 | 390404300 | Pop Rivet 5/32” |
| 12 | 511001451 | Lock Pin This part replaces 511000520. |
| 13 | XXX | Not Available As Spare Parts |
| 14 | 511000555 | Pin |
| 15 | 511000554 | Support |
| 16 | 511000588 | HITCH PLATE - Call your local BRP dealership |
| 17 | XXX | Not Available As Spare Parts |
| 18 | 516004568 | WARNING DECAL, SECURITY - Call your local BRP dealership |
| 19 | 516005175 | Warning Decal, Track |
| 20 | 516006804 | CE Decal |
| 24 | 219903947 | BRP Logo 48 mm |
| 26 | 520000887 | RH Footrest |
| 26 | 520000888 | LH Footrest |
| 29 | 520000871 | Deep Black, Reflector Support |
| 39 | 520001342 | Snow Guard, Black W Alloy Grey Insert |
| 40 | 520001142 | Spacing Tool |
| 41 | 520000829 | Radiator Trim |
| 42 | 520001236 | Yellow, LH Front Reflector |
| 43 | 520001237 | Yellow, RH Front Reflector |
| 44 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 45 | 516006431 | LH Warning Decal, Safety |
| 46 | 516005587 | RH Warning Decal, Safety |
| 51 | 293150101 | Pop Rivet 3/16” This part replaces 293150101. |
| 52 | 517124300 | Washer |
| 100 | 520001591 | Tools Kit This part replaces 520001290. |
