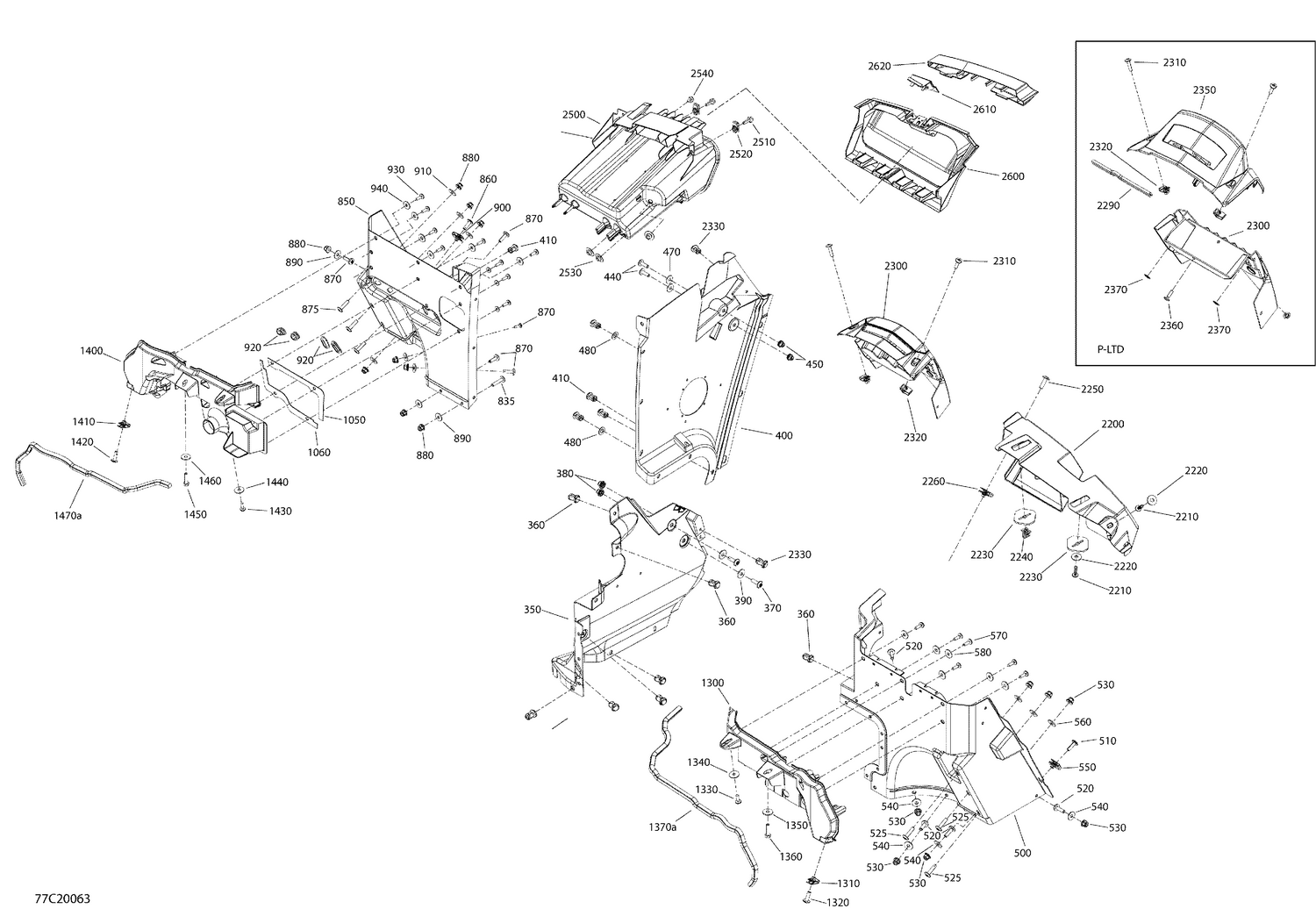

09- Cab Interior - Front part
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 350 | 707900193 | Front Side Dash Panel |
| 360 | 293150230 | Tuflok Plastic Rivet |
| 370 | 250000722 | Torx Screw M6 X 20 |
| 380 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 390 | 234062670 | Stainless Steel Flat Washer |
| 410 | 293150230 | Tuflok Plastic Rivet |
| 440 | 250000722 | Torx Screw M6 X 20 |
| 450 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 470 | 234062670 | Stainless Steel Flat Washer |
| 480 | 506151252 | Washer |
| 500 | 707900175 | LH Front Upper Floor |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 520 | 250000712 | Torx Screw M6 X 20 |
| 525 | 250000758 | Torx Screw M6 X 25 |
| 530 | 233261494 | Hex. Flange Elastic Nut M6 |
| 540 | 234062670 | Stainless Steel Flat Washer |
| 550 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 560 | 234062670 | Stainless Steel Flat Washer |
| 570 | 250000720 | Torx Screw K50 X 16 |
| 580 | 234062410 | Flat Washer 6 mm |
| 835 | 250000843 | Torx Truss Screw M6 X 30 |
| 850 | 707900004 | RH Front Floor |
| 860 | 250000722 | Torx Screw M6 X 20 |
| 870 | 250000712 | Torx Screw M6 X 20 |
| 875 | 250000758 | Torx Screw M6 X 25 |
| 880 | 233261494 | Hex. Flange Elastic Nut M6 |
| 890 | 234062670 | Stainless Steel Flat Washer |
| 900 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 910 | 234062670 | Stainless Steel Flat Washer |
| 920 | 705003668 | Oblong Grommet |
| 930 | 250000720 | Torx Screw K50 X 16 |
| 940 | 234062410 | Flat Washer 6 mm |
| 1050 | 293250252 | Upper Seal |
| 1060 | 293250253 | Bottom Seal |
| 1300 | 707900029 | SUPPORT_PANEL LH - Call your local BRP dealership |
| 1310 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1320 | 250000722 | Torx Screw M6 X 20 |
| 1330 | 250000720 | Torx Screw K50 X 16 |
| 1340 | 224060201 | Flat Washer |
| 1350 | 207162544 | Hex. Screw M6 X 25 |
| 1360 | 224061201 | Flat Washer |
| 1370a | 219704365 | Was 293200017 Neoprene Seal |
| 1400 | 707900030 | SUPPORT_PANEL RH - Call your local BRP dealership |
| 1410 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1420 | 250000722 | Torx Screw M6 X 20 |
| 1430 | 250000720 | Torx Screw K50 X 16 |
| 1440 | 224060201 | Flat Washer |
| 1450 | 207162544 | Hex. Screw M6 X 25 |
| 1460 | 224061201 | Flat Washer |
| 1470a | 219704365 | Was 293200017 Neoprene Seal |
| 2200 | 715001250 | Dashboard Ass'y |
| 2210 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2220 | 234062670 | Stainless Steel Flat Washer |
| 2230 | 705003841 | Support Plate |
| 2240 | 517302785 | Edge Clip |
| 2250 | 250000722 | Torx Screw M6 X 20 |
| 2260 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2310 | 250000724 | Torx Screw M5 X 20 |
| 2320 | 250000958 | Panel Nut M5 X 0.8 |
| 2330 | 293150230 | Tuflok Plastic Rivet |
| 2500 | 707900046 | Storage Bin |
| 2510 | 207662034 | Hex. Flange Screw M6 X 20 |
| 2520 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2530 | 414859400 | CAP - Call your local BRP dealership |
| 2540 | 293830005 | Rubber Bumper |
| 2600 | 707900221 | LUGGAGE COVER KIT - Call your local BRP dealership |
| 2610 | 707900031 | Latch |
| 2620 | 707900062 | Trim Glove Box |
| 3600 | 250000742 | Torx Screw M5 X 14 |
| 3610 | 250200040 | Flat Washer |
| 3615 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 3620 | 207682044 | Hex. Flange Screw M8 X 20 |
