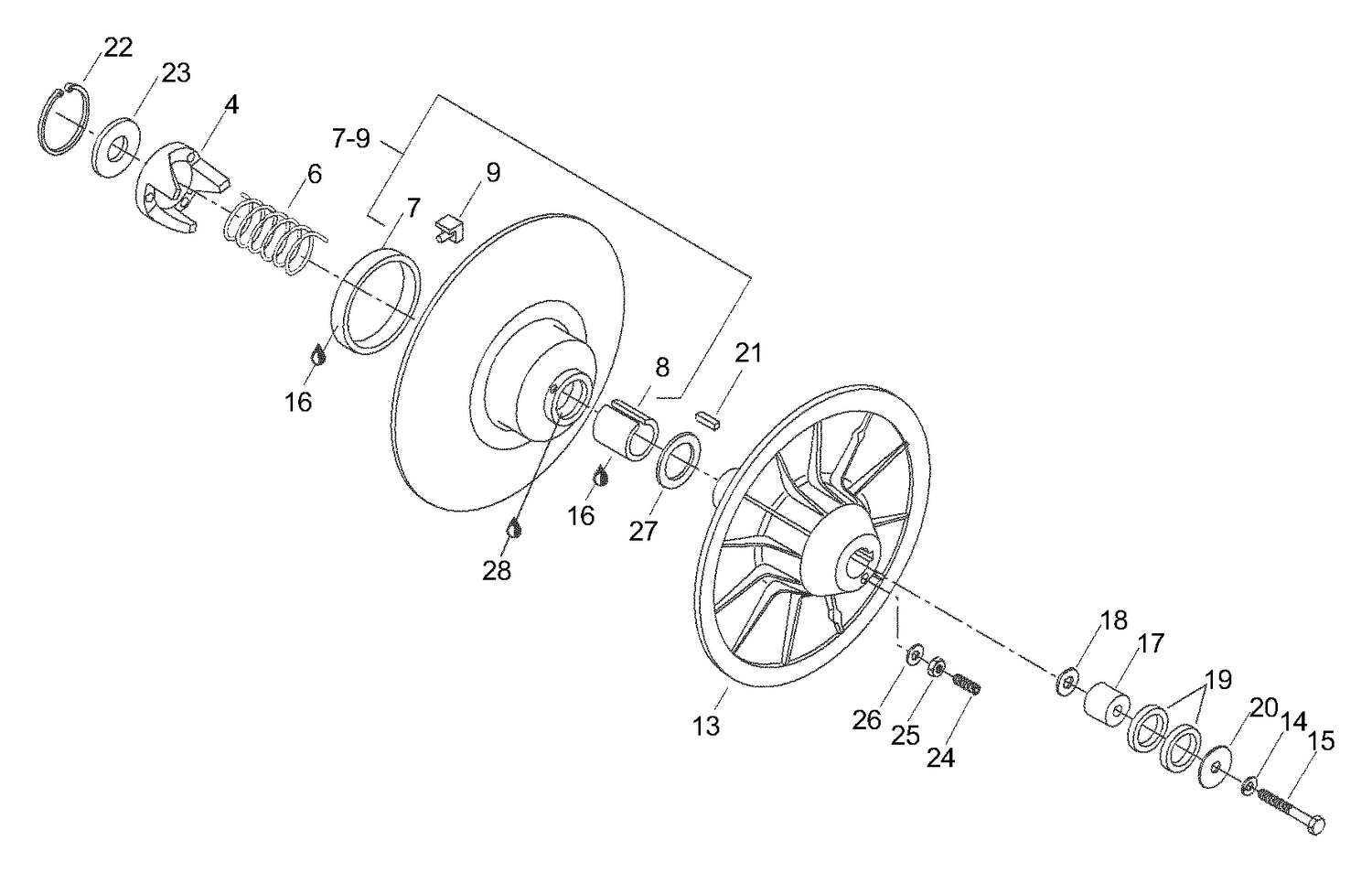

05- Driven Pulley
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 417126333 | Cam 44 |
| 6 | 414558900 | RELEASE SPRING, BEIGE - Call your local BRP dealership |
| 7 | 414876600 | GARLOCK BUSHING - Call your local BRP dealership |
| 8 | 415011200 | BUSHING - Call your local BRP dealership |
| 9 | 414918000 | CAM SLIDER SHOE - Call your local BRP dealership |
| 13 | 417126476 | Fixed flange assy |
| 14 | 20014 | Spring washer |
| 15 | 40861 | Screw M8x65 |
| 16 | 413703100 | Loctite 609, 10ml |
| 17 | 504091600 | Countershaft extension |
| 18 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 19 | 504108200 | SHIM - Call your local BRP dealership |
| 20 | 517078700 | WASHER - Call your local BRP dealership |
| 21 | 414820800 | Key |
| 22 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 23 | 504141800 | Washer |
| 24 | 206263044 | Screw |
| 25 | 232061414 | Nut |
| 26 | 420245370 | WASHER - Call your local BRP dealership |
| 27 | 504141900 | Washer |
