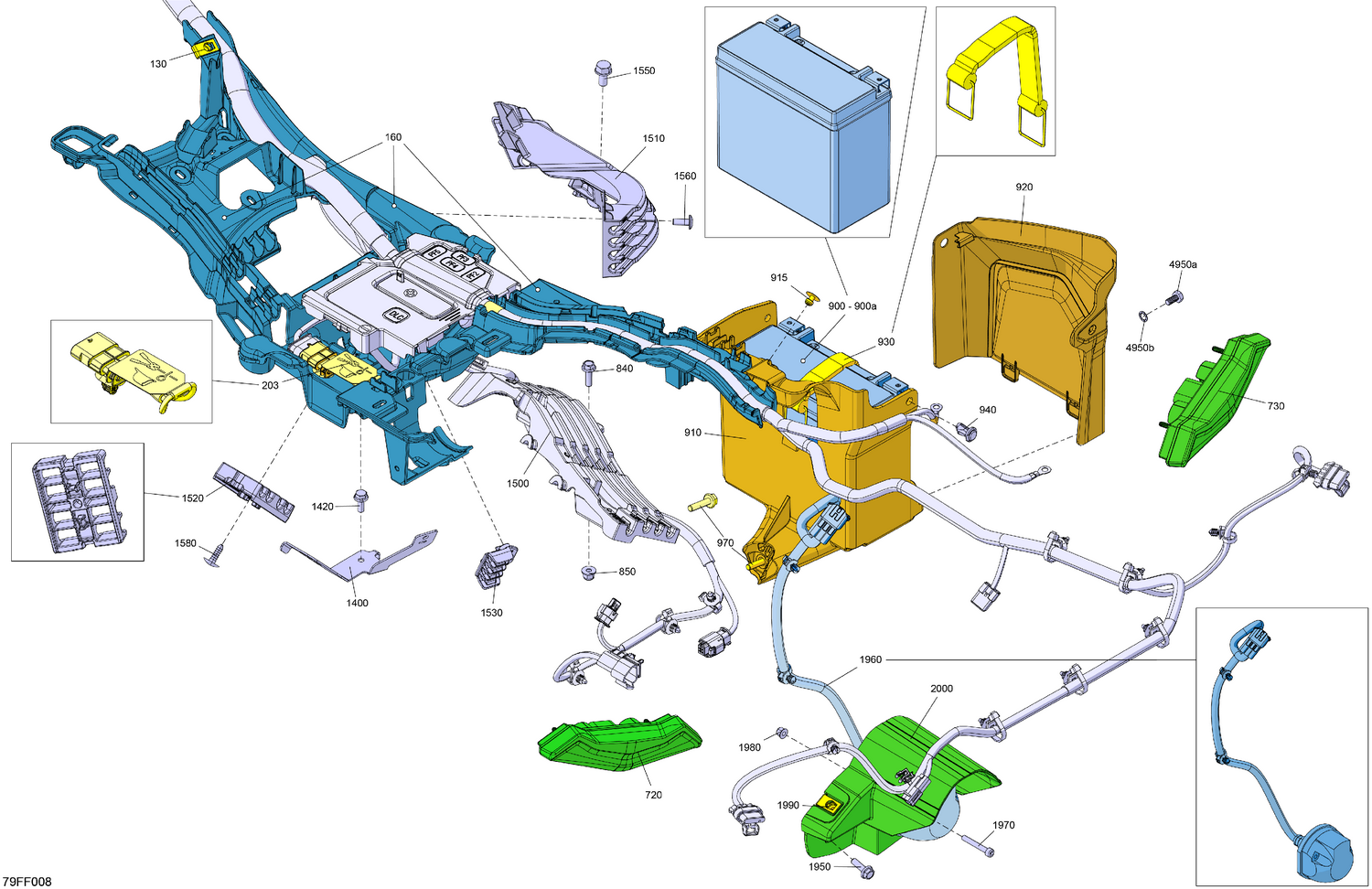

08- Electric - Rear Section
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 250100198 | Panel Nut M6 X 1.0 |
| 160 | 710011919 | Starter Relay Support |
| 203 | 710010030 | Emergency Response Wiring Harness (FRCL) |
| 720 | 710008427 | LH Rear Tail Light |
| 730 | 710008428 | RH Rear Tail Light |
| 840 | 207662046 | Hex. Flange Screw M6 X 20 |
| 850 | 233261466 | Hex. Flange Elastic Nut M6 |
| 900a | 715500541 | Battery Bolt Kit |
| 910 | 710008195 | Battery Support |
| 915 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 920 | 710011427 | Battery Cover |
| 930 | 293850087 | Fuel Tank Strap |
| 940 | 293150230 | Tuflok Plastic Rivet |
| 970 | 207562544 | Hex. Flange Screw M6 X 25 |
| 1400 | 710010221 | Cable Support |
| 1420 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1500 | 710010139 | Electric Motor Cable Support |
| 1510 | 710010261 | Inverter Cable Support |
| 1520 | 710010037 | High Voltage Cable Support |
| 1530 | 710011209 | High Voltage Cable Support |
| 1550 | 210281640 | Hex Forming Screw Hd.Fl. Din. M8 X 16 |
| 1560 | 250000717 | Torx Head Screw M6 X 16 |
| 1580 | 293730011 | Black, Dart |
| 1950 | 207662046 | Hex. Flange Screw M6 X 20 |
| 1960 | 710005846 | Trailer Harness |
| 1970 | 205053588 | Socket Head Screw M5 X 35 |
| 1980 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1990 | 250100198 | Panel Nut M6 X 1.0 |
| 2000 | 710009909 | Trailer Hitch Support |
| 4950a | 710009084 | Screw |
