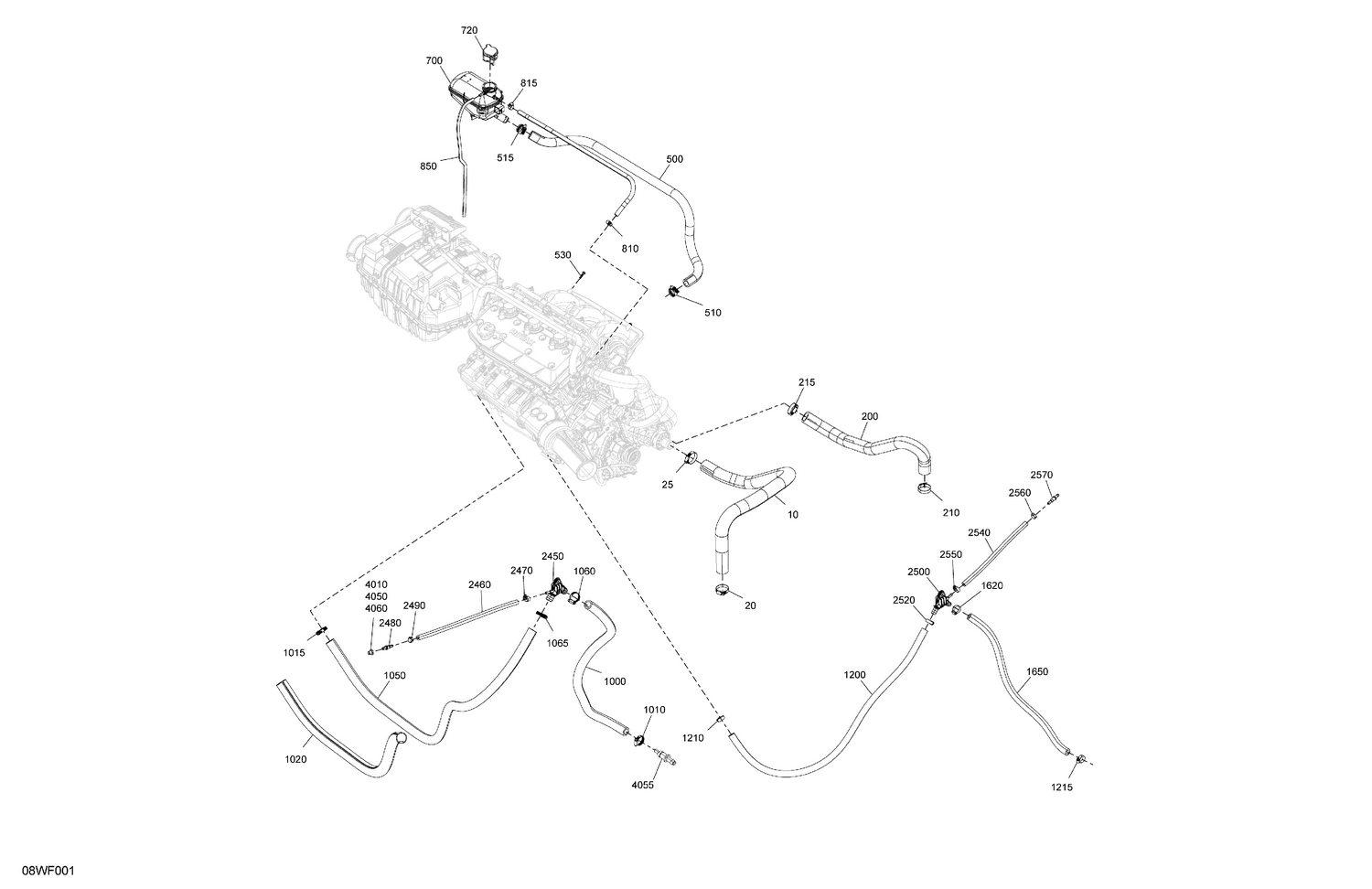

02- ENGINE - Cooling
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 276000516 | Hose |
| 20 | 293650245 | Norma Clamp |
| 25 | 293650245 | Norma Clamp |
| 200 | 276000517 | Formed Hose |
| 210 | 293650245 | Norma Clamp |
| 215 | 293650245 | Norma Clamp |
| 500 | 276000537 | Coolant Tank Hose |
| 510 | 293650019 | Tridon Gear Clamp This part replaces 293650290. |
| 515 | 293650019 | Tridon Gear Clamp This part replaces 293650290. |
| 530 | 241152040 | Hex. Flange PT Screw K50 X 20 |
| 700 | 276000419 | Coolant Tank |
| 810 | 293650287 | Gear Clamp |
| 815 | 293650287 | Gear Clamp |
| 850 | 219704389 | Polyurethane Hose 4000MM Long |
| 1000 | 219704613 | Hose 19Mm X 4000 mm Long |
| 1010 | 293650284 | Gear Clamp |
| 1015 | 293650284 | Gear Clamp |
| 1020 | 219704402 | Tubing 25 MM 1000MM Long |
| 1050 | 219704613 | Hose 19Mm X 4000 mm Long |
| 1060 | 293650284 | Gear Clamp |
| 1065 | 293650284 | Gear Clamp |
| 1200 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1210 | 293650285 | Clamp Gear |
| 1215 | 293650285 | Clamp Gear |
| 1620 | 293650285 | Clamp Gear |
| 1650 | 219704394 | Was 276000001 Hose 12.5 mm |
| 2450 | 276000547 | Fitting |
| 2460 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 2470 | 293650287 | Gear Clamp |
| 2480 | 414518500 | Male Connector |
| 2490 | 293650025 | Oetiker Gear Clamp |
| 2500 | 276000565 | Fitting |
| 2520 | 293650285 | Clamp Gear |
| 2540 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 2550 | 293650287 | Gear Clamp |
| 2560 | 293650025 | Oetiker Gear Clamp |
| 2570 | 414518500 | Male Connector |
| 4010 | 293720029 | Grommet |
| 4050 | 293720029 | Grommet |
| 4055 | 293710133 | Straight Fitting |
