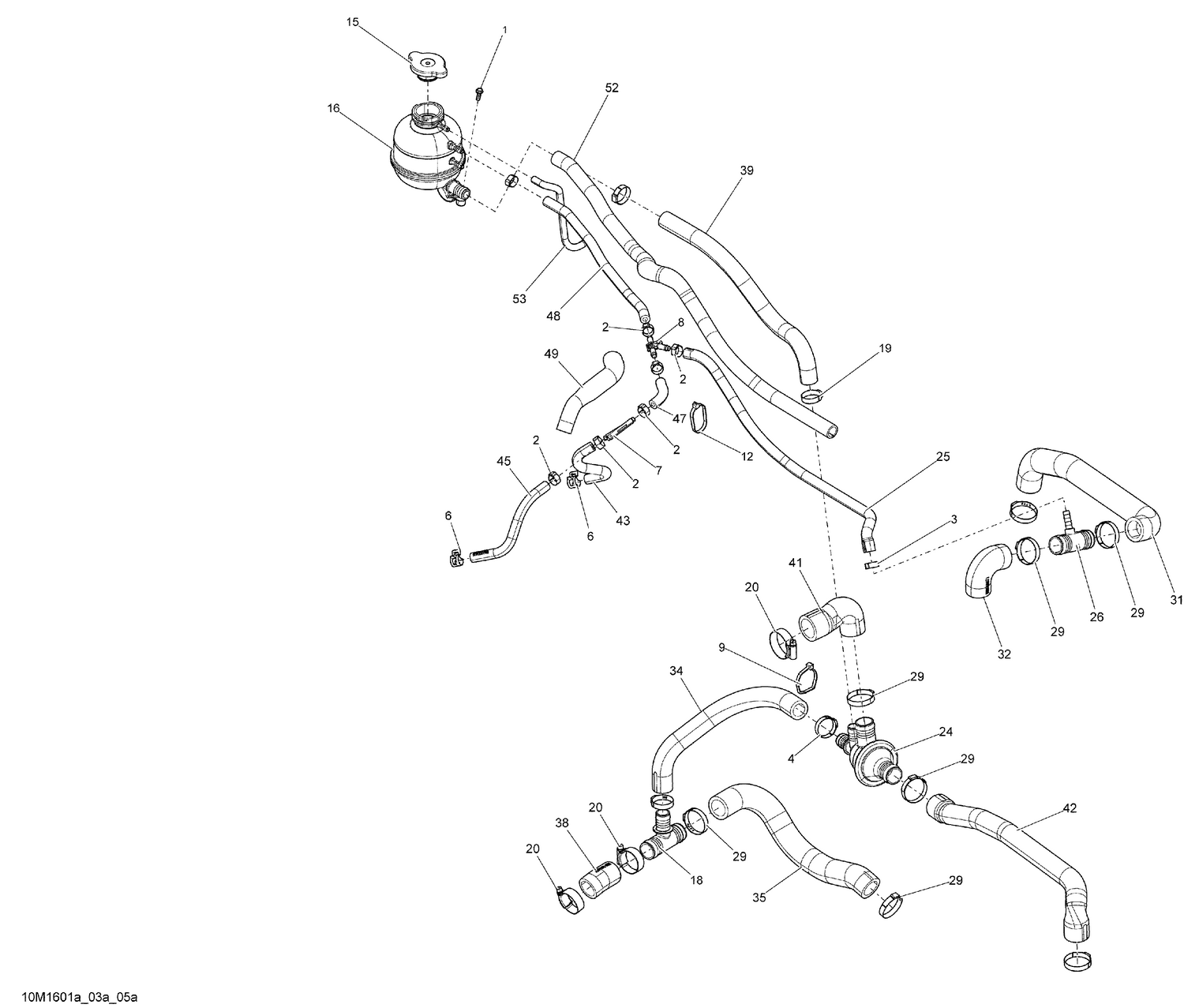

01- Cooling System - CARB Engine
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 2 | 293650046 | Oetiker Clamp |
| 3 | 293650047 | Crimp Clamp, 15.3-706R |
| 4 | 293650099 | Crimp Clamp |
| 6 | 293650210 | Spring Clamp |
| 7 | 293710059 | Y-Fitting |
| 8 | 293710140 | Y-Fitting |
| 9 | 293750008 | Tie Wrap 368 mm |
| 12 | 414115200 | Tie-Rap 180 mm |
| 15 | 509000180 | Radiator Pressure Cap |
| 16 | 509000368 | Coolant Tank |
| 18 | 509000372 | T-Fitting |
| 19 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 20 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 24 | 509000499 | Thermostat Housing |
| 25 | 509000502 | Bleeder Hose |
| 26 | 509000510 | T-Fitting |
| 29 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 31 | 509000670 | Radiator Hose |
| 32 | 509001066 | Radiator Hose This part replaces 509000671. |
| 34 | 509000672 | Bypass Hose |
| 35 | 509000673 | Radiator Hose |
| 38 | 509001067 | Engine Inlet Hose This part replaces 509000675. |
| 39 | 509000676 | Filling Hose |
| 41 | 509000678 | Engine Outlet Hose |
| 42 | 509000679 | Thermostat Outlet Hose |
| 43 | 509000768 | Bleeder Hose |
| 45 | 509000769 | Bleeder Hose |
| 47 | 219704416 | Was 415129508 Bleeder Hose |
| 48 | 219704416 | Was 415129508 Bleeder Hose |
| 49 | 513033231 | Protector Tube, 16 mm |
| 52 | 219704408 | Tubing 16 Mm 1000Mm Long |
