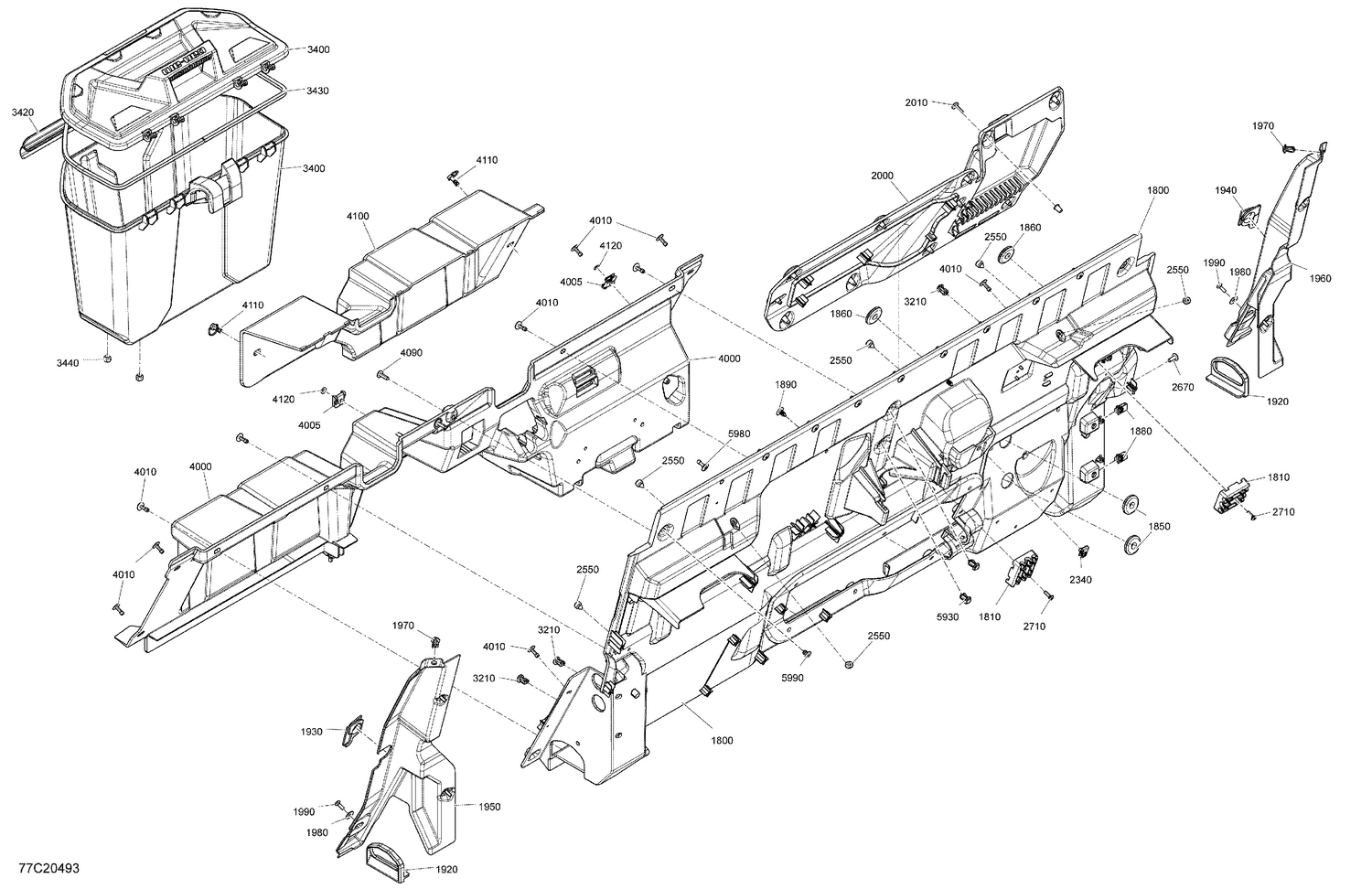

09- Cab Interior - Back Wall
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1800 | 707900715 | Rear Upper Cab Panel |
| 1810 | 707900788 | Hose Support |
| 1850 | 293720119 | Grommet |
| 1860 | 293000125 | Plug |
| 2000 | 707900742 | Rear Access Cover |
| 2010 | 250000712 | Torx Screw M6 X 20 |
| 2340 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2550 | 293830005 | Rubber Bumper |
| 2670 | 250000721 | Torx Truss Screw M6 X 16 |
| 2710 | 250000720 | Torx Screw K50 X 16 |
| 3210 | 293150230 | Tuflok Plastic Rivet |
| 4000 | 707900718 | Rear Lower Cab Panel |
| 4005 | 705002651 | Quarter Turn Nut |
| 4010 | 293150100 | Pop Rivet 3/16" |
| 4090 | 250000722 | Torx Screw M6 X 20 |
| 4100 | 707900743 | Battery Cover |
| 4110 | 705002649 | Quarter Turn Screw |
| 4120 | 708400286 | Washer |
| 5930 | 293150230 | Tuflok Plastic Rivet |
| 5980 | 293150100 | Pop Rivet 3/16" |
