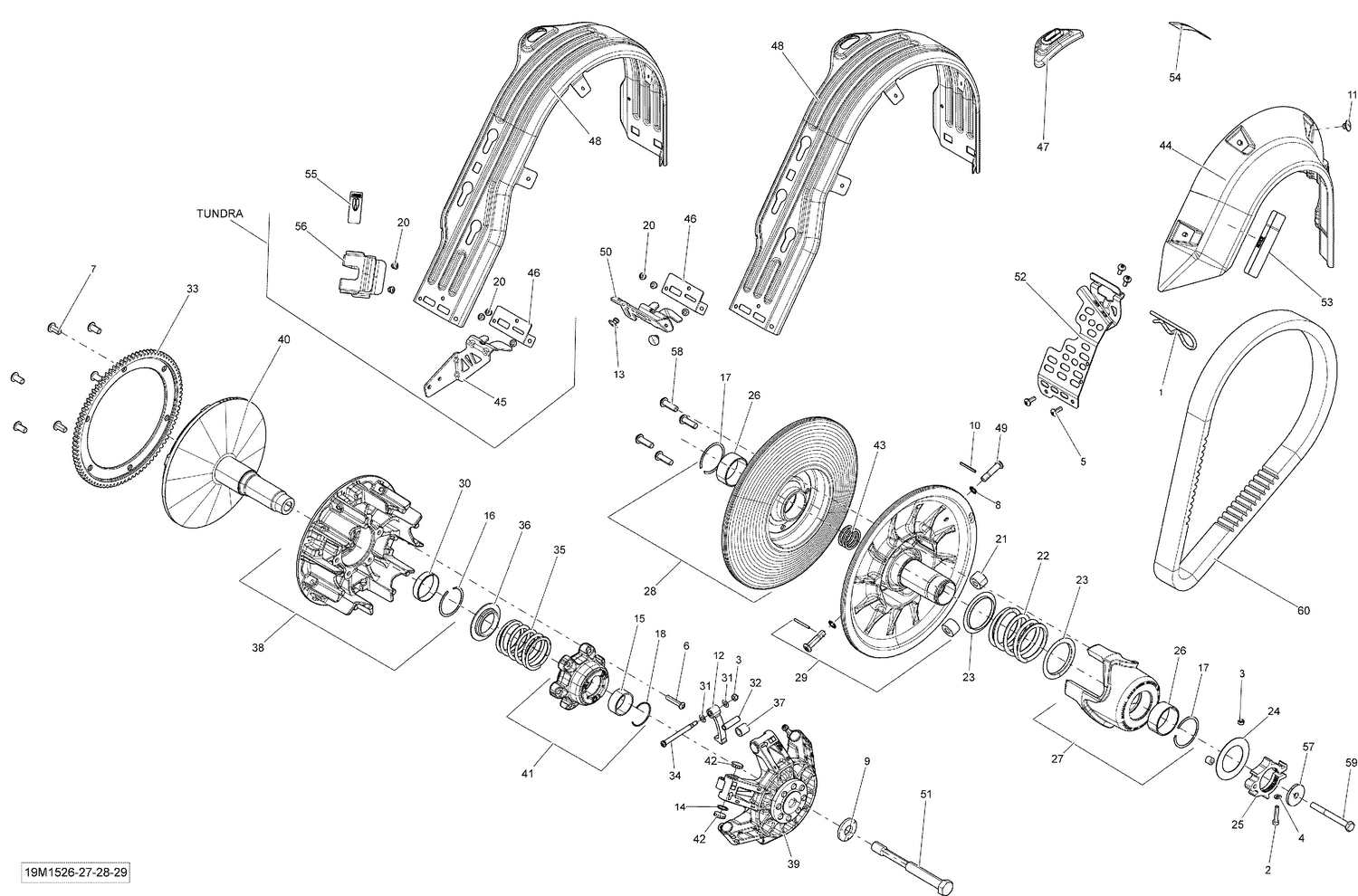

05- Pulley System _19M1527
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114045200 | Hair Pin |
| 2 | 205052544 | Socket Screw M5 X 25 |
| 3 | 232551414 | Elastic Stop Nut M5 |
| 4 | 234051410 | Flat Washer M5 |
| 5 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 6 | 250000580 | Torx Screw M6 X 30 |
| 7 | 250000706 | Torx Button Head Screw M8 X 16 |
| 8 | 250200009 | Lock Washer 8 mm |
| 9 | 250200144 | Conical Spring Washer M14 |
| 10 | 250400063 | Spring Pin M3 X 30 |
| 11 | 293150103 | Pop Rivet 3/16" |
| 12 | 417223605 | RAMP 730 - Call your local BRP dealership |
| 13 | 293150104 | Pop Rivet 3/16" |
| 14 | 293300185 | O-Ring This part replaces 293300169. |
| 16 | 293370037 | Circlip |
| 17 | 293370049 | Circlip |
| 18 | 293370065 | Circlip |
| 20 | 390909200 | Avex Rivet |
| 21 | 417127016 | Pulley Roller |
| 22 | 417127061 | Spring |
| 23 | 417127116 | Swivel Abutment |
| 24 | 417127155 | Washer |
| 25 | 415129604 | Calibration Ass'y |
| 26 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 27 | 417127319 | Cam Ass'y |
| 28 | 417127366 | Slider Flange Ass'y |
| 29 | 417127392 | Fixe Flange Ass'y |
| 30 | 417222758 | Bushing |
| 31 | 417223255 | Thrust Washer |
| 32 | 417223257 | Roller Axle |
| 33 | 417223476 | Crown Gear Launch |
| 34 | 417223694 | Ramp Axle |
| 35 | 417223748 | Spring Clutch |
| 36 | 417223752 | Seat Spring |
| 37 | 417223767 | Roller |
| 38 | 417224101 | Sliding Flange Ass'y This part replaces 417223855. |
| 39 | 417223865 | Governor Cup Ass'y |
| 40 | 417223870 | FIX FLANGE ASS'Y - Call your local BRP dealership This part replaces 417223870. |
| 41 | 417223907 | Spring Cover Ass'y |
| 42 | 417223919 | Slider Shoe |
| 43 | 417300265 | Spacer |
| 44 | 417300356 | Side Protector |
| 45 | XXX | Not Available As Spare Parts |
| 46 | 417300380 | Reinforcement |
| 47 | 417300381 | Guide |
| 48 | 417300382 | Belt Guard |
| 49 | 417127294 | Pivot Stud |
| 50 | 417300386 | Front Belt Guard Bracket |
| 51 | 417300432 | Pulley Drive Bolt |
| 52 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership |
| 53 | 516005503 | Decal English |
| 54 | 516005509 | Safety Belt Guard Decal |
| 55 | XXX | Not Available As Spare Parts |
| 56 | XXX | Not Available As Spare Parts |
| 57 | 517302322 | Strength Washer |
| 58 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr This part replaces 250000707. |
| 59 | 207287544 | Hex. Cap Screw M8 X 75 |
