Home / BRP / Can-Am ATV / 2021 / 004 - ATV - North America - Renegade Series / 002 - Renegade 570 EFI - XMR - North America, 2021 0004TMC00 / 07- Body - Mudguard

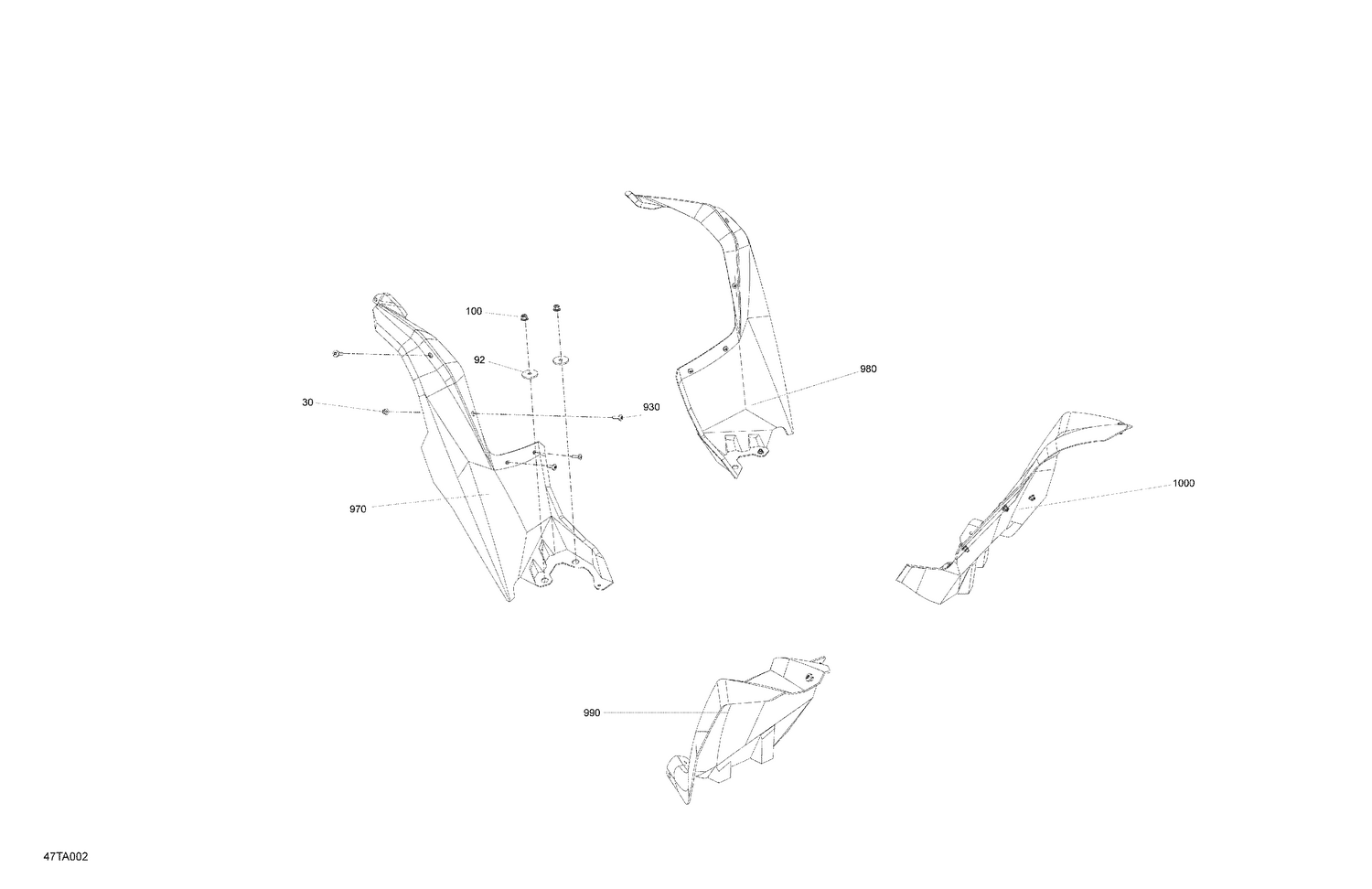

07- Body - Mudguard

07- Body - Mudguard

Parts (7)

RefPart NumberDescription
30 233261434 Flange Elastic Nut M6
92 250200158 Flat Washer M8
100 233261494 Hex. Flange Elastic Nut M6
930 250000712 Torx Screw M6 X 20
970 705009736 Mudguard
980 705009737 RH Front Mudguard
990 705009738 Mudguard
