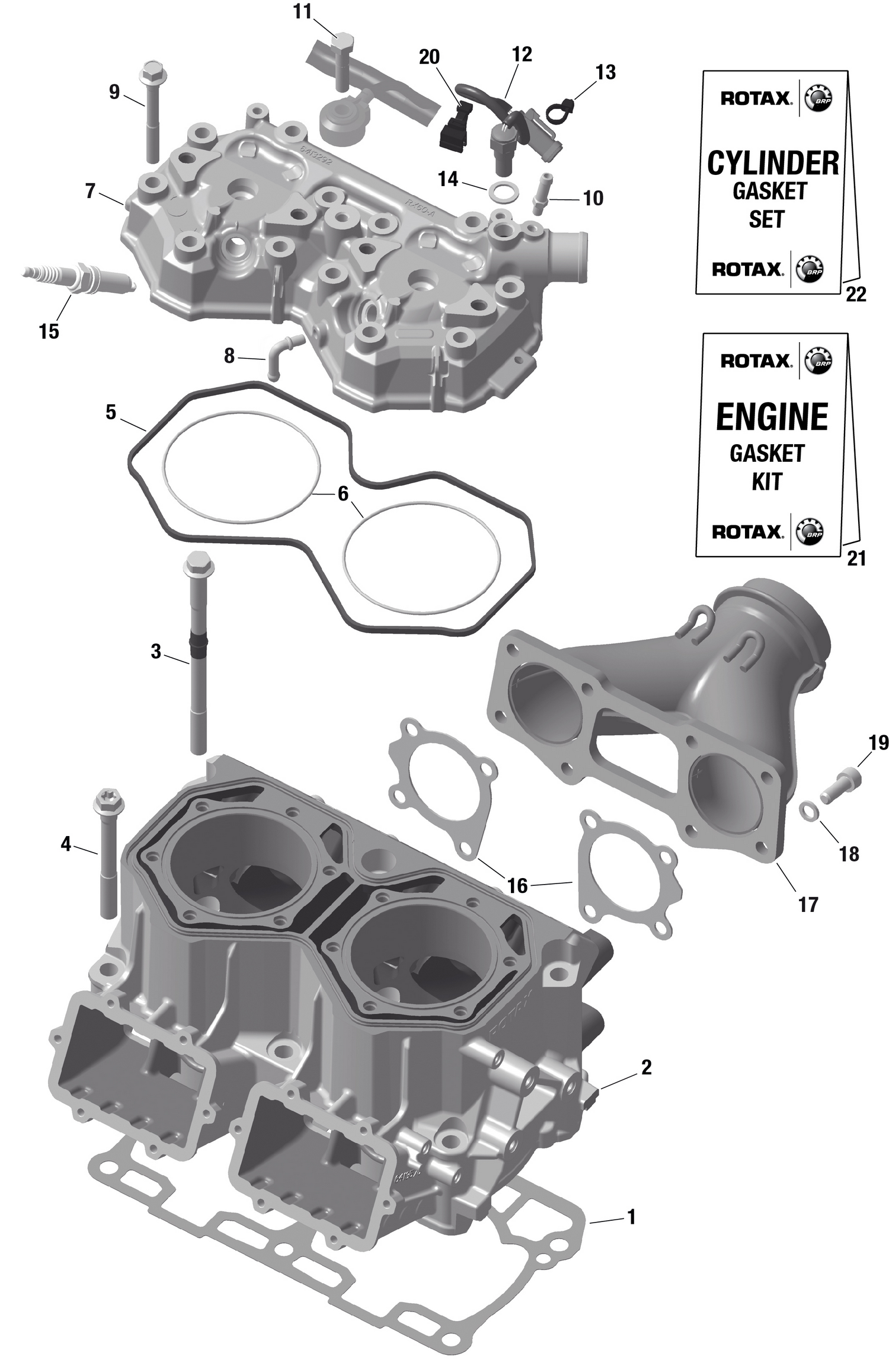

01- ROTAX - Cylinder
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420413575 | Cylinder Block Plasma |
| 3 | 420641762 | Hex. Flange Screw M10 X 150 |
| 4 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 |
| 7 | 420413308 | Head Cylinder Cover |
| 8 | 420924802 | Fittin 90D |
| 9 | 420640959 | Collar Hex Screw M8 X 68.5 |
| 10 | 420924724 | Hose Nipple |
| 11 | 207083544 | Hex. Screw M8 X 35 |
| 12 | 420664509 | Temperature Sensor This part replaces 420664508. |
| 13 | 420651817 | Locking Tie 175 X 4 MM |
| 14 | 420250016 | Aluminum Sealing Ring |
| 15 | 415130651 | Spark Plug NGK ILKR8Q7 This part replaces 420297938. |
| 17 | 420873032 | Exhaust Manifold |
| 18 | 420427290 | Washer |
| 19 | 420841051 | Allen Screw M8 X 22 |
| 20 | 420951655 | Tie-Rap With Mount |
| 21 | 420894376 | Engine Gasket Set |
