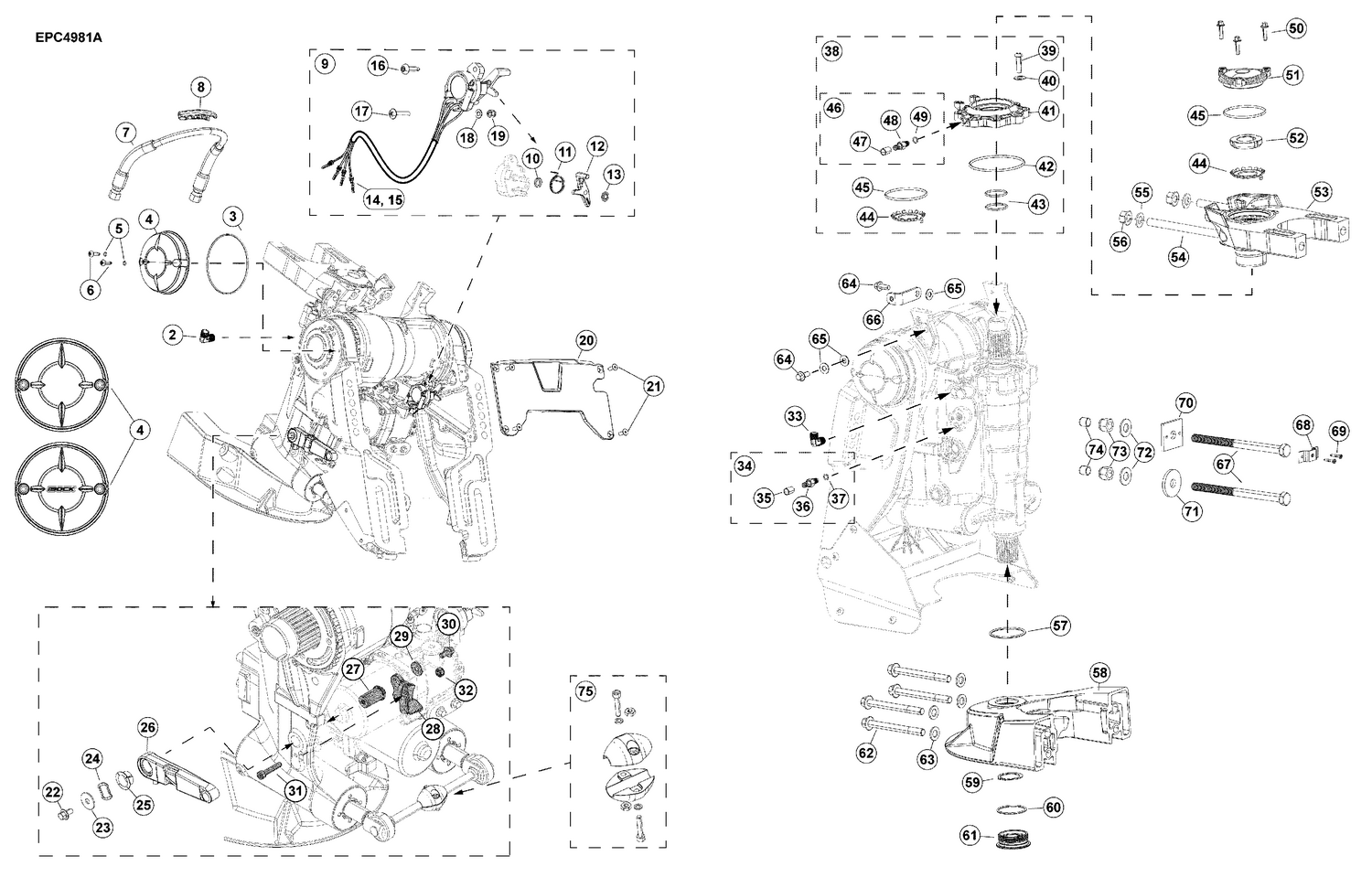

| Ref | Part Number | Description |
|---|
| 6 |
0362483 |
SCREW This part replaces 0358259. |
| 9 |
0587196 |
SENDING UNIT ASSEMBLY |
| 20 |
0357363 |
PLATE |
| 23 |
0357083 |
WASHER |
| 24 |
0356413 |
SPRING WASHER |
| 25 |
0335486 |
BAGUE, levier de relevage |
| 26 |
0356444 |
LEVER |
| 27 |
0357035 |
BUSHING |
| 28 |
0356313 |
RETAINER |
| 31 |
0356315 |
SCREW, M6 x 30 |
| 32 |
0360630 |
NUT, M6 |
| 36 |
**FITTING, |
Bleed valve |
| 38 |
5011792 |
Kit This part replaces 5009971. |
| 41 |
*END |
CAP ASSEMBLY |
| 48 |
***FITTING, |
Bleed valve |
| 60 |
0313754 |
O RING |
| 64 |
0354818 |
VIS, collier |
| 65 |
0357979 |
WASHER, Shipping bracket |
| 66 |
0356810 |
SHIPPING BRACKET |
| 67 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0358240. |
| 70 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 71 |
0307238 |
RONDELLE |
| 72 |
0320248 |
RONDELLE, écrou |
| 73 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 74 |
0318572 |
Bolt thread protective cap 1/2 in. |
