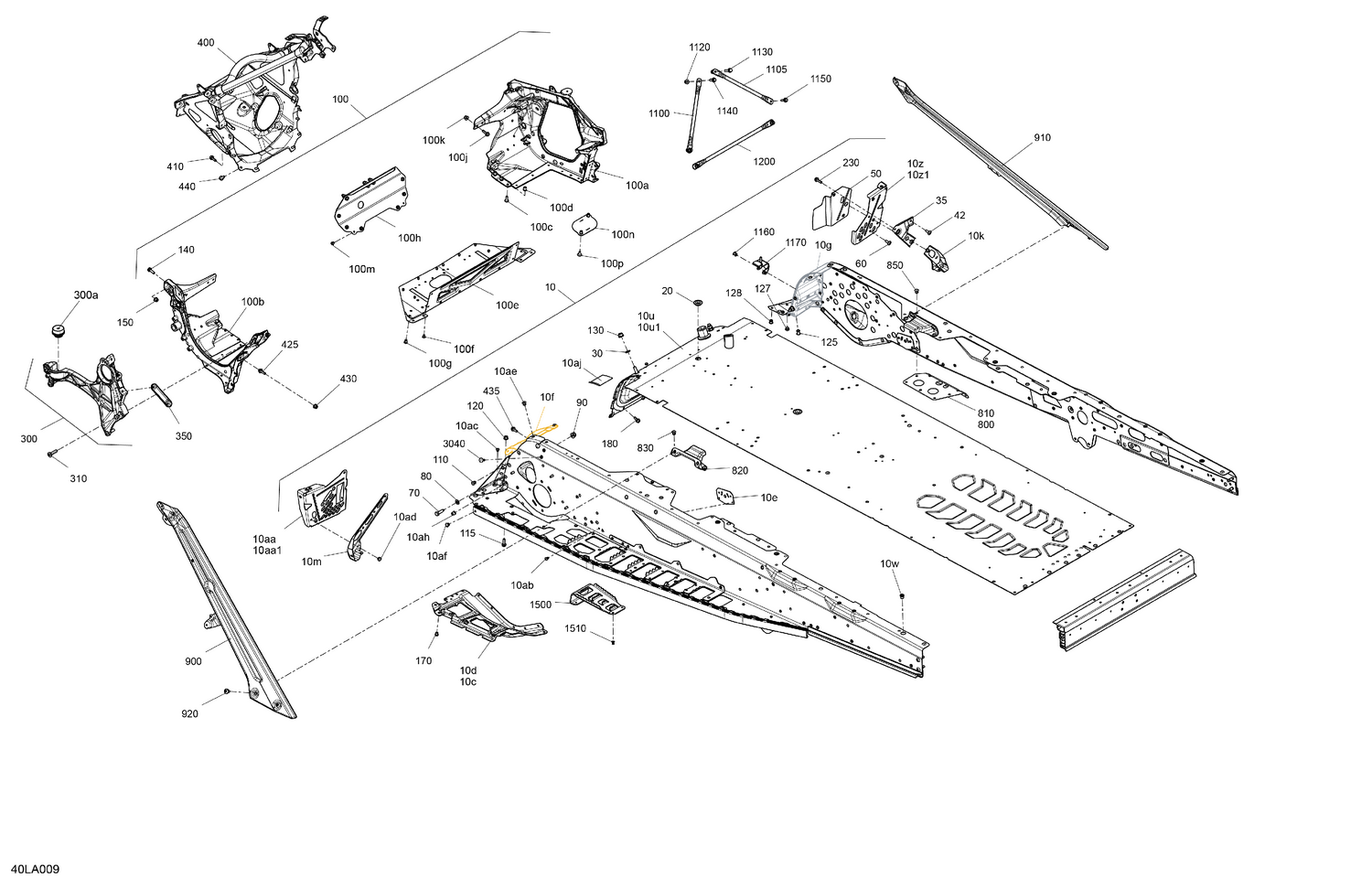

| Ref | Part Number | Description |
|---|
| 10aa |
518331287 |
LH Footrest |
| 10aa1 |
390909200 |
Avex Rivet |
| 10ab |
390909100 |
Avex Rivet |
| 10ac |
390909200 |
Avex Rivet |
| 10ad |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10ae |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10af |
293150174 |
Hemlock Rivet, 6.5 mm |
| 10ah |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 10aj |
44110 |
Aluminum Foil |
| 10c |
518331957 |
Deep Black, RH Footrest Reinforcement |
| 10d |
518331956 |
Deep Black, LH Footrest Reinforcement |
| 10e |
518330104 |
Front Arm Reinforcement |
| 10f |
518331712 |
LH Frame Corner 24 |
| 10g |
518331973 |
RH Frame Corner 24 |
| 10k |
518331818 |
RH Footrest Reinforcement |
| 10m |
518329306 |
LH Reinforcement Footrest |
| 10u |
518332891 |
Radiator |
| 10u1 |
518335121 |
Radiator Tunnel 154 This part replaces 518332621. |
| 10w |
293450275 |
Insert |
| 10z |
518331696 |
RH Footrest 600MM |
| 10z1 |
390909200 |
Avex Rivet |
| 20 |
293730052 |
Black, Plug |
| 30 |
234081430 |
Flat Washer M8 |
| 35 |
518331727 |
RH Stirrup Reinforcement |
| 42 |
250000717 |
Torx Head Screw M6 X 16 |
| 50 |
518330928 |
Heat Shield |
| 60 |
250000717 |
Torx Head Screw M6 X 16 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a |
518334523 |
RH Side Member Ass'y This part replaces 518331260. |
| 100b |
518334599 |
LH Side Member Ass'y This part replaces 518331254. |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100e |
518332715 |
Bottom Plate |
| 100f |
390909100 |
Avex Rivet |
| 100g |
293450268 |
Insert M5 X 0.8 |
| 100h |
518330100 |
Front Member |
| 100j |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100k |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100m |
390909100 |
Avex Rivet |
| 100n |
518332276 |
Oil Plate |
| 100p |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 115 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 125 |
293150120 |
Hemlock Rivet 6.5 mm |
| 127 |
293150173 |
Rivet 6,4 mm |
| 128 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 170 |
293450268 |
Insert M5 X 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 350 |
518331740 |
LH Front Chassis Reinforcement |
| 400 |
518334551 |
Chassis Suspension Module Ass'y This part replaces 518330570. |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 425 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 435 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 440 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 800 |
518332514 |
LH Under Chassis Reinforcement |
| 810 |
518332516 |
RH Under Chassis Reinforcement |
| 820 |
518331733 |
Cross Member Support |
| 830 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 850 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 900 |
518332950 |
Viper Red, LH Rear Diagonal Crossmember |
| 910 |
518332951 |
Viper Red, RH Rear Diagonal Crossmember |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1105 |
518330916 |
Upper Side Column Support |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562054 |
Hex. Flange Screw S.GRIP M6 X 20 |
| 1160 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 1170 |
518334031 |
Muffler Support Ass'y This part replaces 518331666. |
| 1200 |
518329906 |
Center Column Support |
| 1500 |
520001208 |
Footrest rear black (Opt.) |
| 1510 |
293150102 |
Rivet avex 12 mm. |
