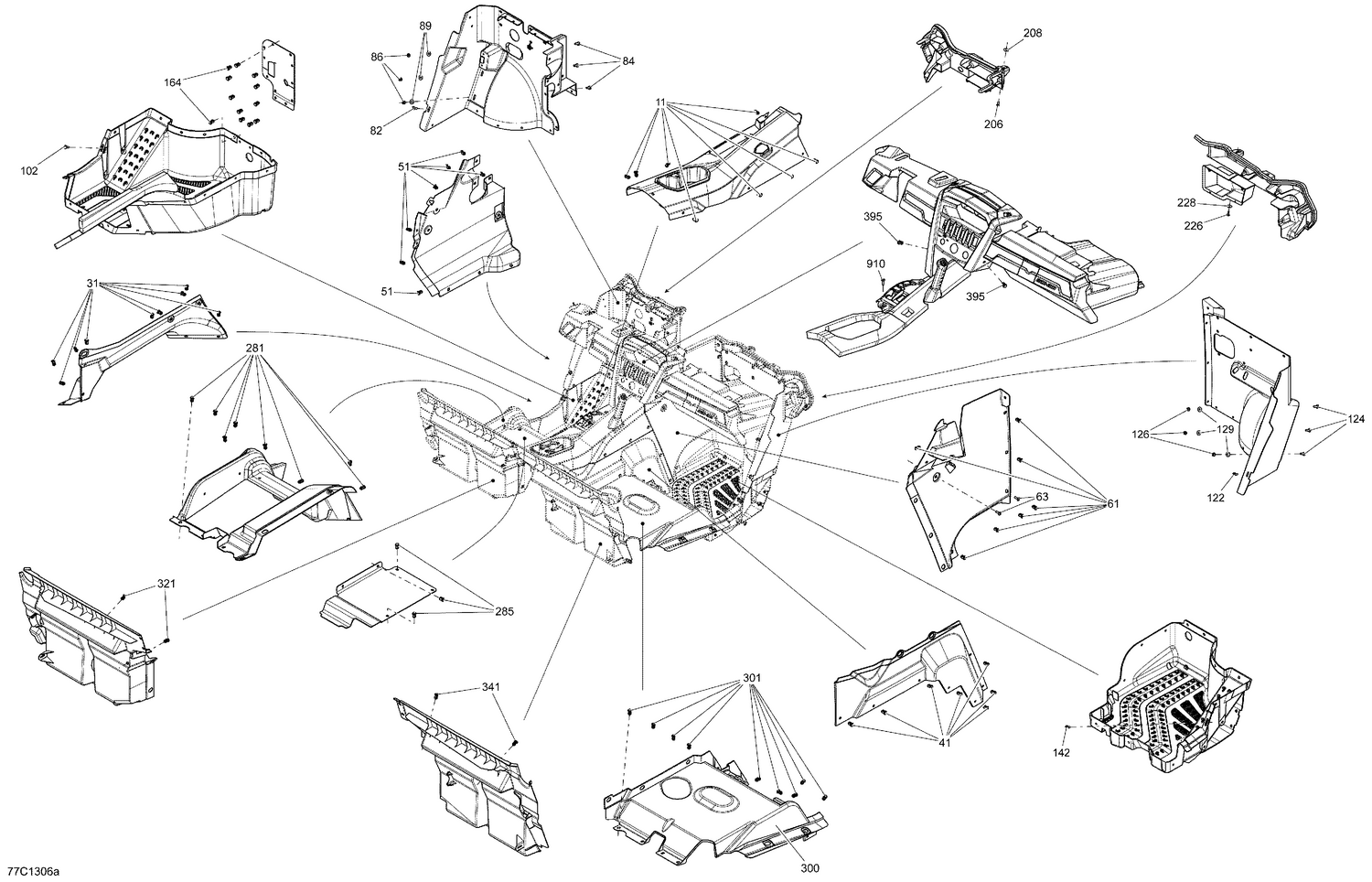

| Ref | Part Number | Description |
|---|
| 11 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 31 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 41 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 51 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 61 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 63 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 82 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 84 |
250000770 |
Hex. Socket Screw M6 X 20 This part replaces 250000335. |
| 86 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 89 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 102 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 122 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 124 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 126 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 129 |
234062670 |
Stainless Steel Flat Washer |
| 142 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 164 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 206 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 208 |
224060201 |
Flat Washer |
| 226 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 228 |
224060201 |
Flat Washer |
| 281 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 285 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 300 |
707900006 |
RH Under Seat Plate |
| 301 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 321 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 341 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 395 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
