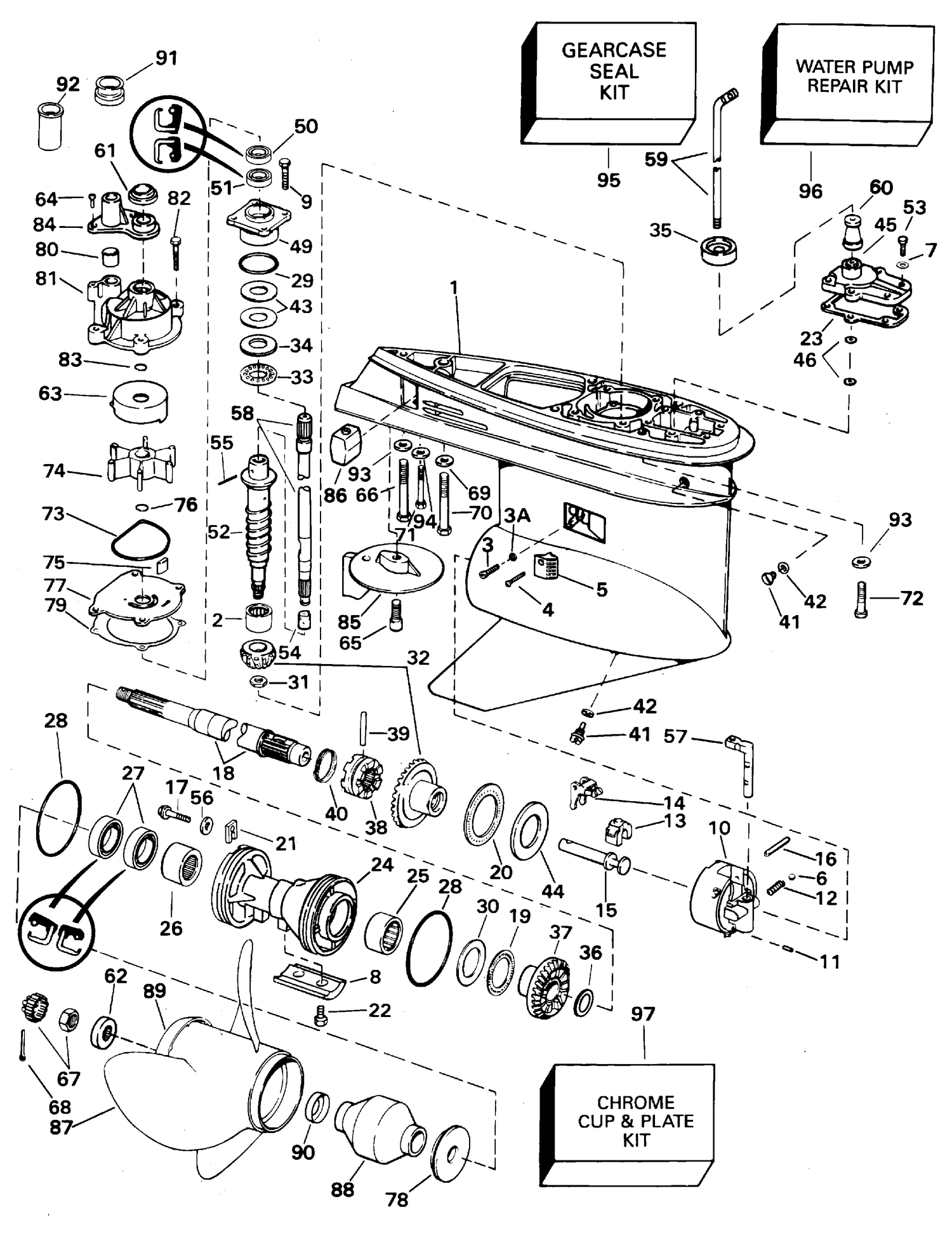

GEARCASE - 90 - 115 VX MODELS
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 58 | 5000624 | DRIVESHAFT Assembly, Upper |
| 59 | 0342995 | SHIFT ROD |
| 65 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 66 | 0330263 | SCREW, Mounting, 3/8 in. X 3.50 in. |
| 70 | 0331998 | SCREW, Gearcase to housing |
| 72 | 0331999 | SCREW, Gearcase housing |
| 85 | 0338742 | COMPENSATEUR DE DÉRIVE |
| 95 | 5006373 | GEARCASE SEAL KIT This part replaces 5000411. |
| 96 | 5001595 | Water Pump Repair Kit This part replaces 0435929. |
