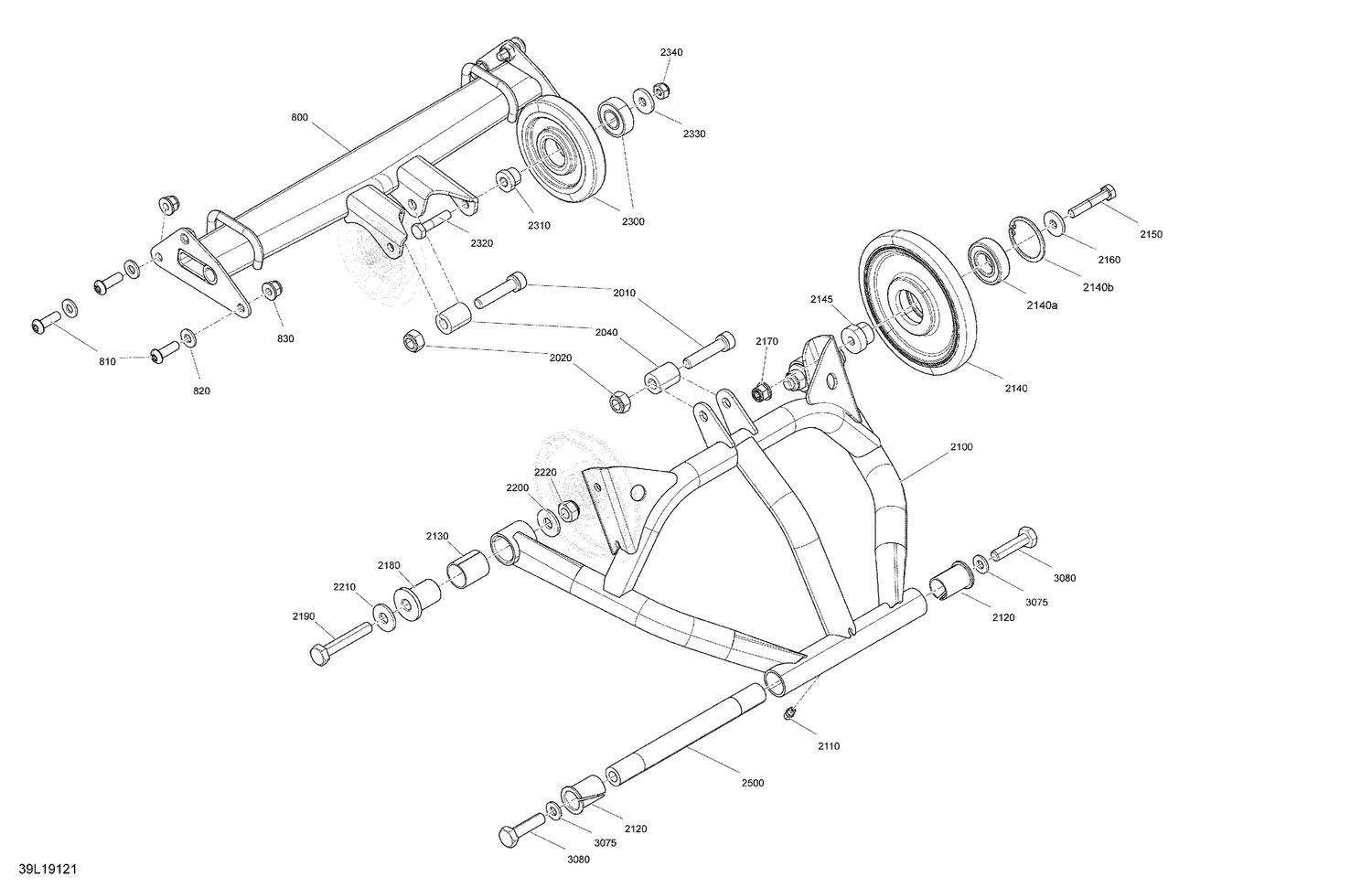

08- Rear Suspension Shocks BoonDocker - 850 E-TEC Upper Parts
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 800 | 503193623 | Middle Beam |
| 810 | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 820 | 503192494 | Washer |
| 830 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2010 | 40134 | Screw Socket HD.DIN 912 |
| 2020 | 232500416 | Elastic Stop Nut M10 |
| 2040 | 5446652 | Bushing |
| 2100 | 503193571 | Rear Arm Weld |
| 2110 | 408200700 | Grease Fitting |
| 2120 | 503191640 | Cushion |
| 2130 | 503191554 | Bushing |
| 2140a | 503190396 | Ball Bearing |
| 2140b | 415129371 | Retaining Ring |
| 2145 | 605454461 | Sleeve |
| 2150 | 207084544 | Hex. Screw M8 X 45 |
| 2160 | 20077 | M8 Washer |
| 2170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2180 | 503194580 | Upper Axle Sleeve |
| 2190 | 250000696 | Hexagonal Screw |
| 2200 | 503191926 | Washer |
| 2210 | 503191926 | Washer |
| 2220 | 233601466 | Elastic Locking Nut M10 |
| 2300 | 572043500 | Idler Wheel |
| 2310 | 503193330 | Sleeve |
| 2320 | 207083544 | Hex. Screw M8 X 35 |
| 2330 | 20077 | M8 Washer |
| 2340 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2500 | 503193638 | Axe Inferieur *shaft-lower |
| 3075 | 503192494 | Washer |
