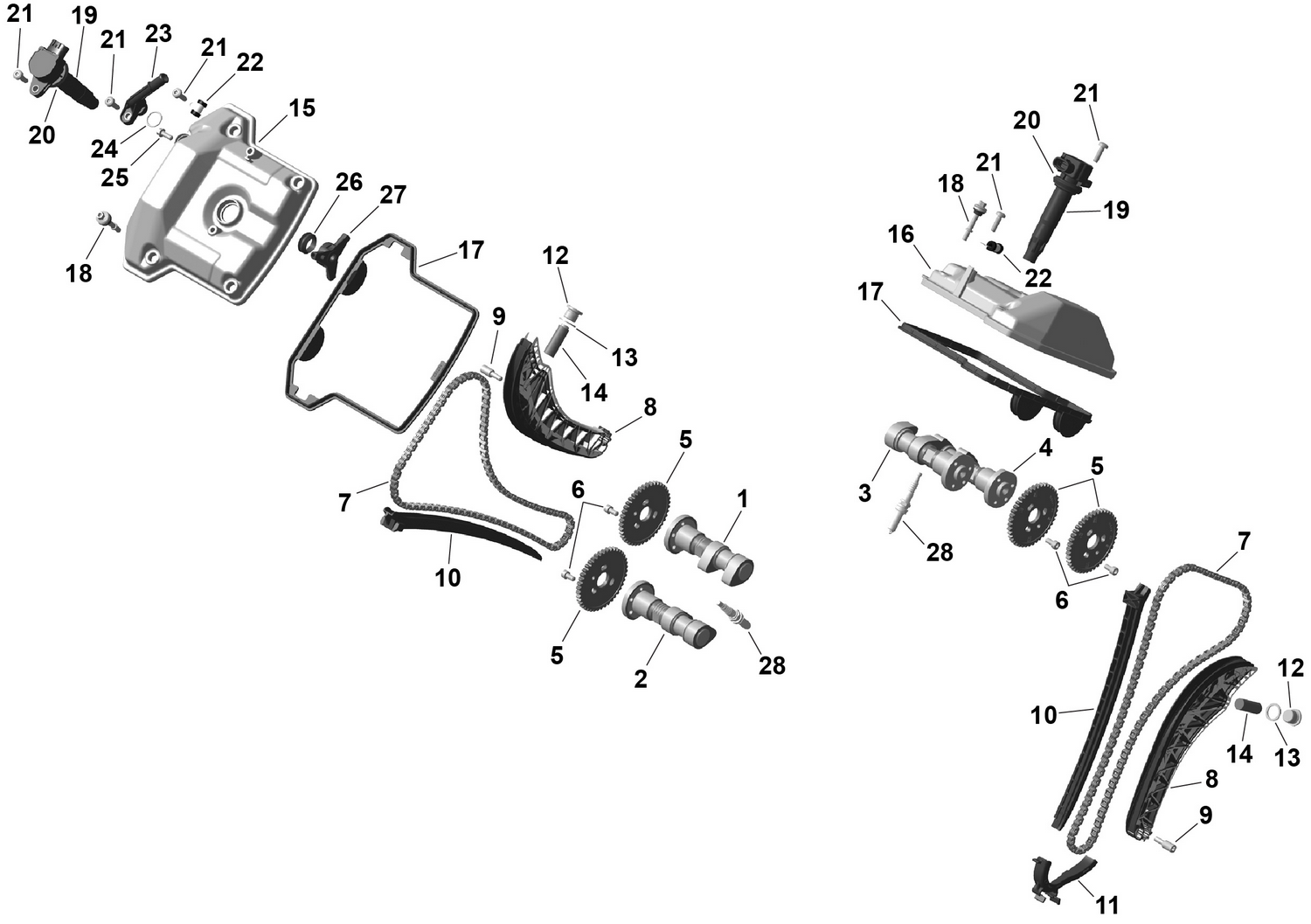

01- ROTAX - Valve Train
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420620206 | Front Camshaft Exhaust 55/0 |
| 2 | 420620209 | Front Camshaft Exhaust 55/0 |
| 3 | 420281651 | Rear Camshaft Intake 5/55 |
| 4 | 420281652 | Camshaft 55/0 Exhaust |
| 5 | 420254447 | Timing Gear 42 Teeth |
| 6 | 420840032 | Allen Screw M6 X 12 |
| 7 | 420297085 | Camshaft Chain |
| 8 | 420936531 | Chain Tension Guide |
| 9 | 420240943 | Bearing Screw M6 |
| 10 | 420936521 | Chain Guide |
| 11 | 420251342 | Chain Guide |
| 12 | 420240234 | Plug Screw M16 X 1.5 |
| 14 | 420236392 | Chain Tensioner Ass'y |
| 15 | 420610181 | Valve Cover |
| 16 | 420610182 | Valve Cover |
| 17 | 420630282 | Gasket |
| 18 | 420440568 | Hex Screw M6 X 30 |
| 20 | 420201430 | Protection Cap |
| 21 | 420441383 | Torx Flange Screw M6 X 20 |
| 22 | 420853414 | Clamp |
| 23 | 420210631 | Blow By Connector |
| 25 | 420440164 | Torx Flange Screw M6 X 16 |
| 26 | 420630125 | V-Ring 20S FPM Blow By Valve |
| 27 | 420256721 | Separator Gear |
