Home / BRP / ELECTRIC / 1996 / 07- Take Apart Shock, Ski

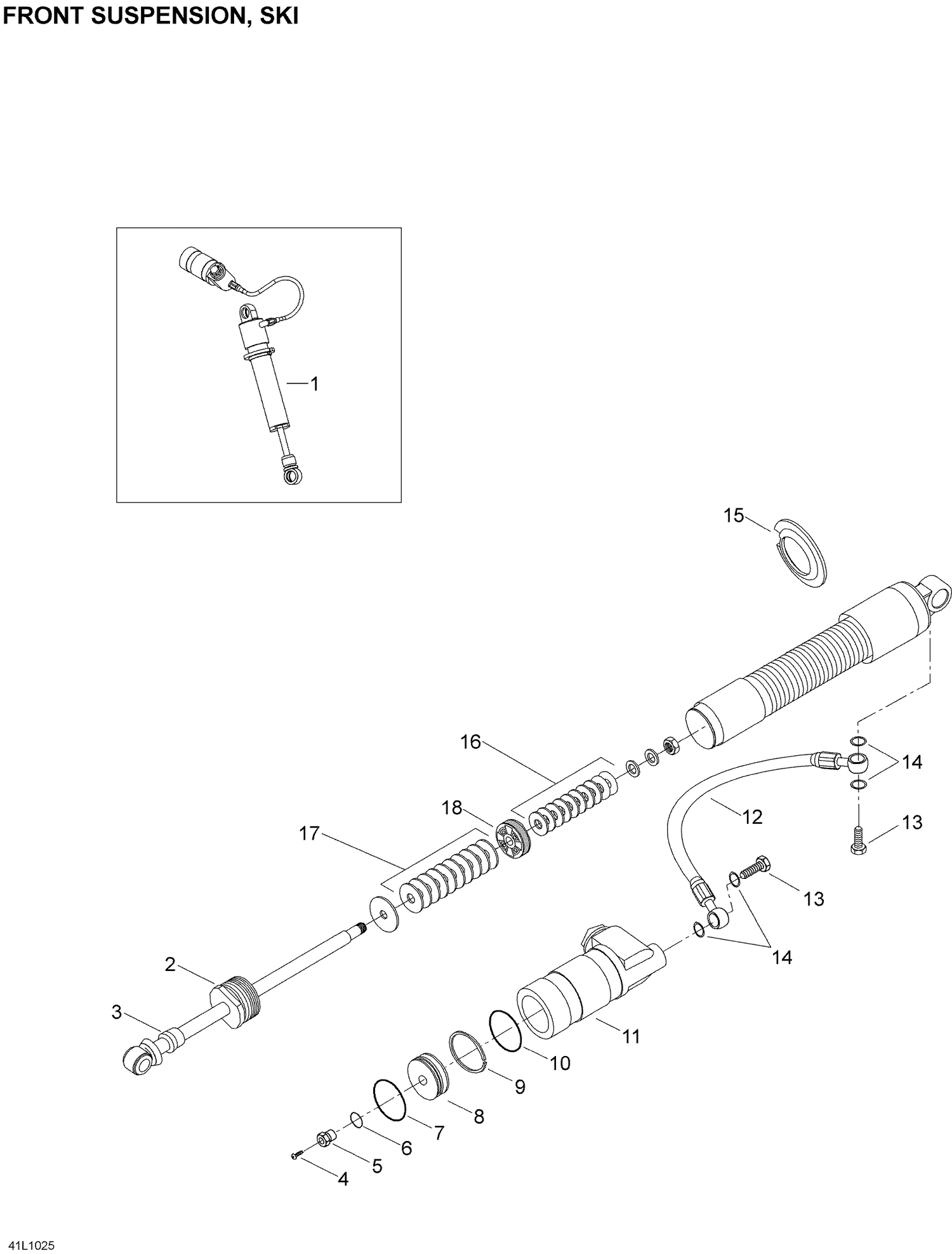

07- Take Apart Shock, Ski

07- Take Apart Shock, Ski

Parts (45)

RefPart NumberDescription
2 619300004 Seal carrier ass'y
3 619300005 Rod assy
4 505070398 Air Valve
5 505070399 Screw
6 505070400 O-Ring
7 619300006 Ring stop
8 619300007 Floating piston
9 415093806 Piston Ring
10 415093807 O-Ring
11 415128596 RESERVOIR - Call your local BRP dealership
12 619300008 Hose
13 415093810 Bolt
14 415038700 O-Ring
15 415128598 SPRING COLLAR - Call your local BRP dealership
16 230015 Leaf valve 18x0.114
16 230016 Leaf valve 18x0.254
16 230017 Leaf valve 20x0.254
16 230018 Leaf valve 22x0.114
16 230019 Leaf valve 22x0.254
16 230021 Leaf valve 24x0.114
16 230022 Leaf valve 24x0.152
16 230023 Leaf valve 24x0.203
16 230024 Leaf valve 26x0.114
16 230025 Leaf valve 28x0.114
16 230026 Leaf valve 28x0.254
16 230121 Leaf valve 17x0.203
16 619300168 Leaf valve 30x0.254
16 Not Available As Spare Part - Leaf valve 12x0.114
17 230015 Leaf valve 18x0.114
17 230016 Leaf valve 18x0.254
17 230017 Leaf valve 20x0.254
17 230018 Leaf valve 22x0.114
17 230019 Leaf valve 22x0.254
17 230021 Leaf valve 24x0.114
17 230022 Leaf valve 24x0.152
17 230023 Leaf valve 24x0.203
17 230024 Leaf valve 26x0.114
17 230025 Leaf valve 28x0.114
17 230026 Leaf valve 28x0.254
17 230121 Leaf valve 17x0.203
17 414888324 Leaf Valve Ø22 X 0.203 (C36)
17 Not Available As Spare Part - Leaf valve 12x0.114
18 230027 Piston, 1 slits
18 230028 Piston, 3 slits
18 414888305 Piston (2 X 0.3-2) (C36)
