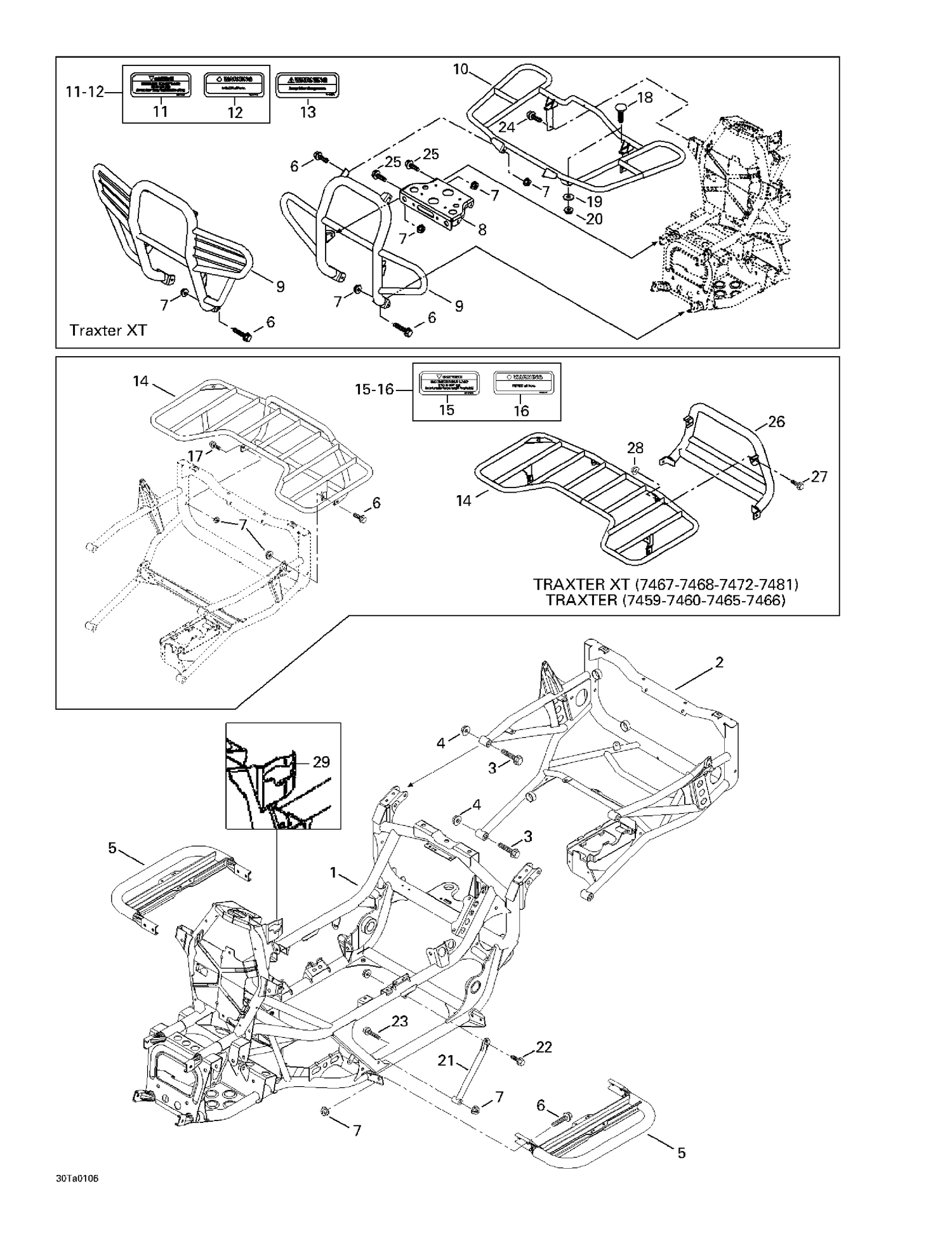

| Ref | Part Number | Description |
|---|
| 2 |
705200254 |
Frame Extention |
| 3 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 4 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 5 |
705000008 |
Footrest (silver) |
| 6 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8 |
705200196 |
WINCH LATCH, BLACK - Call your local BRP dealership |
| 17 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 18 |
250000035 |
TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 19 |
224060201 |
Flat Washer |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 21 |
705200143 |
Removable Brace, Black |
| 22 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 23 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 25 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 27 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 28 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 207682544 |
Hex. |
Flange Screw M8 X 25 207682544 |
| 207682544 |
Vis |
Hex. À Épaulement M8 X 25 207682544 |
