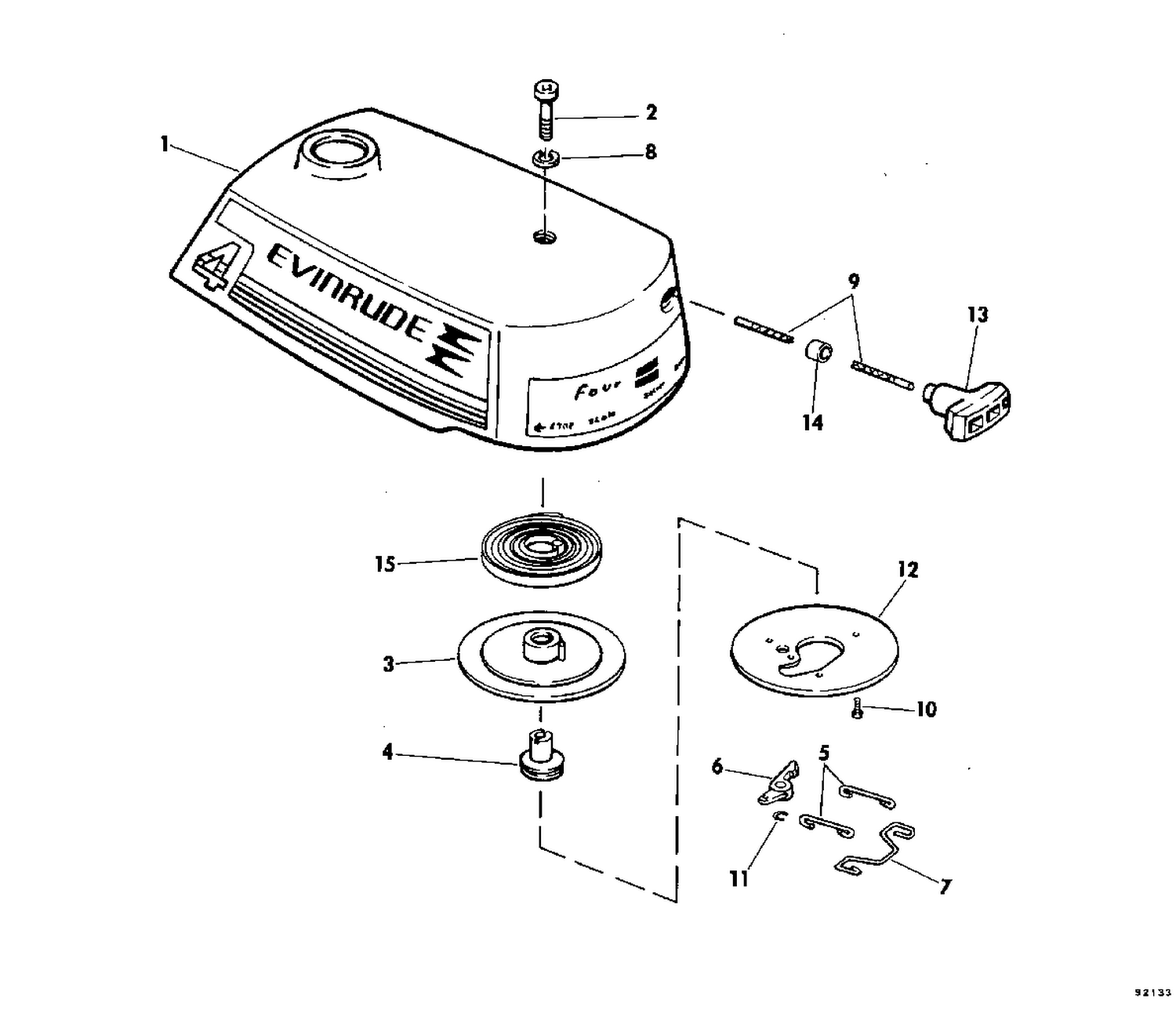

REWIND STARTER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0281320 | STARTER HOUSING ASSY. |
| 2 | 0324489 | SCREW, Spindle |
| 3 | 0384443 | PULLEY & PIN |
| 4 | 0316373 | SPINDLE |
| 5 | 0203700 | LINK SPRING TO PAWL |
| 6 | 0203698 | PAWL, Starter |
| 7 | 0316372 | FRICTIN SPRING |
| 8 | 0306799 | L'WASHER,Bracket to hsg. |
| 9 | ROPE, | Starter |
| 10 | 0602821 | SCREW, Plate to pulley |
| 12 | 0316371 | PLATE, Pulley |
| 13 | 0324513 | HANDLE |
| 14 | 0311371 | BUMPER |
| 0389754 | 0389754 | REWIND STARTER ASSY |
