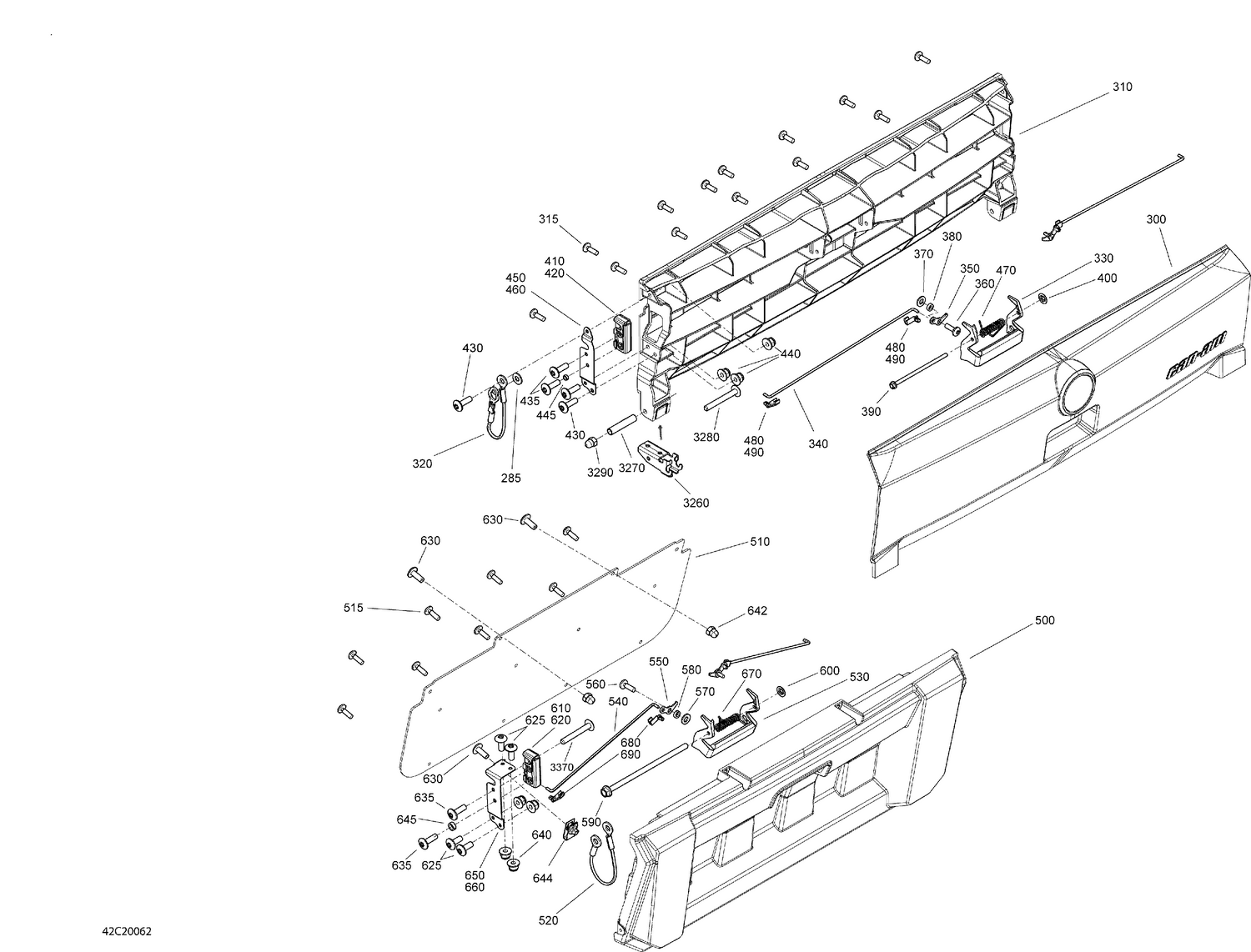

09- Rear Cargo Box - Door
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 285 | 224061121 | Flat Washer |
| 310 | 708300053 | Inside Top Pannel |
| 315 | 250000720 | Torx Screw K50 X 16 |
| 320 | 708300763 | Upper Retainer Cable |
| 330 | 708300398 | Handle |
| 340 | 708300160 | Top Rod |
| 350 | 708300184 | Activator |
| 360 | 250000720 | Torx Screw K50 X 16 |
| 370 | 234061410 | Flat Washer 6 mm |
| 380 | 708300365 | Bushing |
| 390 | 230663084 | Hex. Flange Screw M6 X 130 |
| 400 | 732610072 | Push Nut |
| 410 | 708300162 | LH Latch |
| 420 | 708300201 | RH Latch |
| 430 | 250000722 | Torx Screw M6 X 20 |
| 435 | 250000722 | Torx Screw M6 X 20 |
| 440 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 445 | 708300737 | Bushing |
| 450 | 708300359 | LH Upper Support |
| 460 | 708300360 | RH Upper Support |
| 470 | 708300219 | Spring |
| 480 | 708300182 | LH Tie Rod Clip |
| 490 | 708300202 | RH Tie Rod Clip |
| 500 | 715002365 | Outside Bottom Pannel Ass'y |
| 510 | 708300073 | INSIDE BOTTOM PANNEL - Call your local BRP dealership |
| 515 | 250000720 | Torx Screw K50 X 16 |
| 520 | 708300762 | Lower Retainer Cable |
| 530 | 708300398 | Handle |
| 540 | 708300164 | Lower Bottom Rod |
| 550 | 708300184 | Activator |
| 560 | 250000720 | Torx Screw K50 X 16 |
| 570 | 234061410 | Flat Washer 6 mm |
| 580 | 708300365 | Bushing |
| 590 | 230663084 | Hex. Flange Screw M6 X 130 |
| 600 | 732610072 | Push Nut |
| 610 | 708300162 | LH Latch |
| 620 | 708300201 | RH Latch |
| 625 | 250000721 | Torx Truss Screw M6 X 16 |
| 630 | 250000721 | Torx Truss Screw M6 X 16 |
| 635 | 250000722 | Torx Screw M6 X 20 |
| 640 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 642 | 232361493 | Domed Nut M6 |
| 644 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 645 | 708300737 | Bushing |
| 650 | 708300361 | LH Lower Support |
| 660 | 708300362 | RH Lower Support |
| 670 | 708300219 | Spring |
| 680 | 708300182 | LH Tie Rod Clip |
| 690 | 708300202 | RH Tie Rod Clip |
| 3260 | 708300345 | Upper Pivot Support |
| 3270 | 708300735 | Bushing |
| 3280 | 250000749 | Torx Truss Screw M6 X 50 |
| 3290 | 232361493 | Domed Nut M6 |
