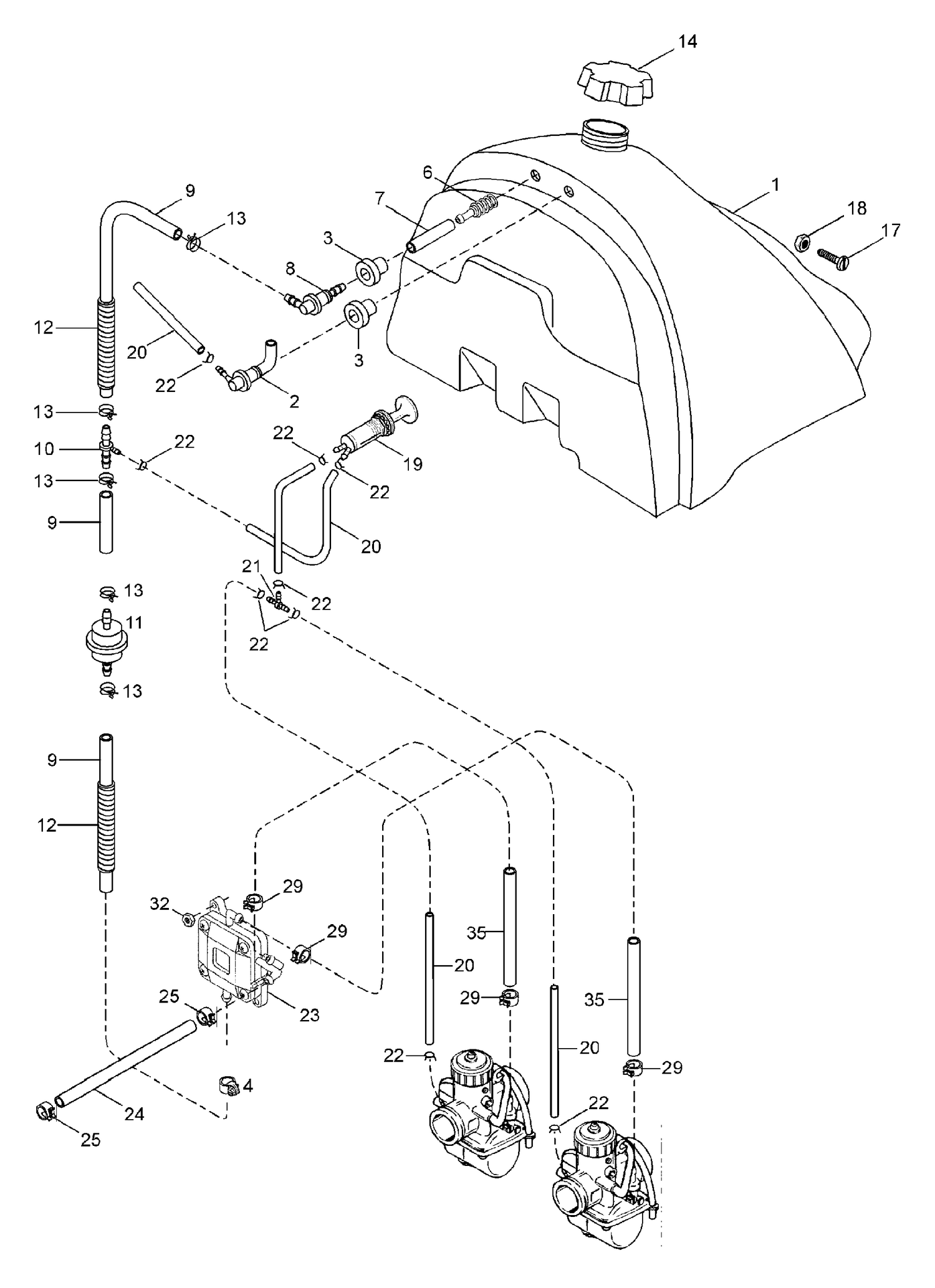

| Ref | Part Number | Description |
|---|
| 1 |
5243838 |
Fuel tank |
| 2 |
5442152 |
Air vent fitting a’ssy |
| 3 |
280000674 |
Grommet This part replaces 28037. |
| 4 |
27040 |
Clamp |
| 6 |
414872100 |
Fuel filter |
| 7 |
39048 |
Fuel line 12.5/7.5 |
| 8 |
5341709 |
CONNECTOR-MALE - Call your local BRP dealership |
| 9 |
39046 |
Hose 11/8 |
| 10 |
415119300 |
Plastic T-fitting (Primer) |
| 11 |
414536500 |
Fuel filter |
| 12 |
28012 |
Tubing |
| 13 |
27119F |
Clamp |
| 14 |
513033025 |
Fuel Tank Cap This part replaces 572230500. |
| 17 |
40211 |
Screw M6x35 |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 19 |
415060500 |
Primer This part replaces 414479200. |
| 20 |
39035 |
Airhose 5/3 |
| 22 |
543230 |
Clamp, primer hode |
| 23 |
403901200 |
Fuel pump |
| 24 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 25 |
414420700 |
Universal Spring Clamp |
| 27 |
549200 |
Gauge decal, empty |
| 29 |
414554800 |
Spring clamp |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
