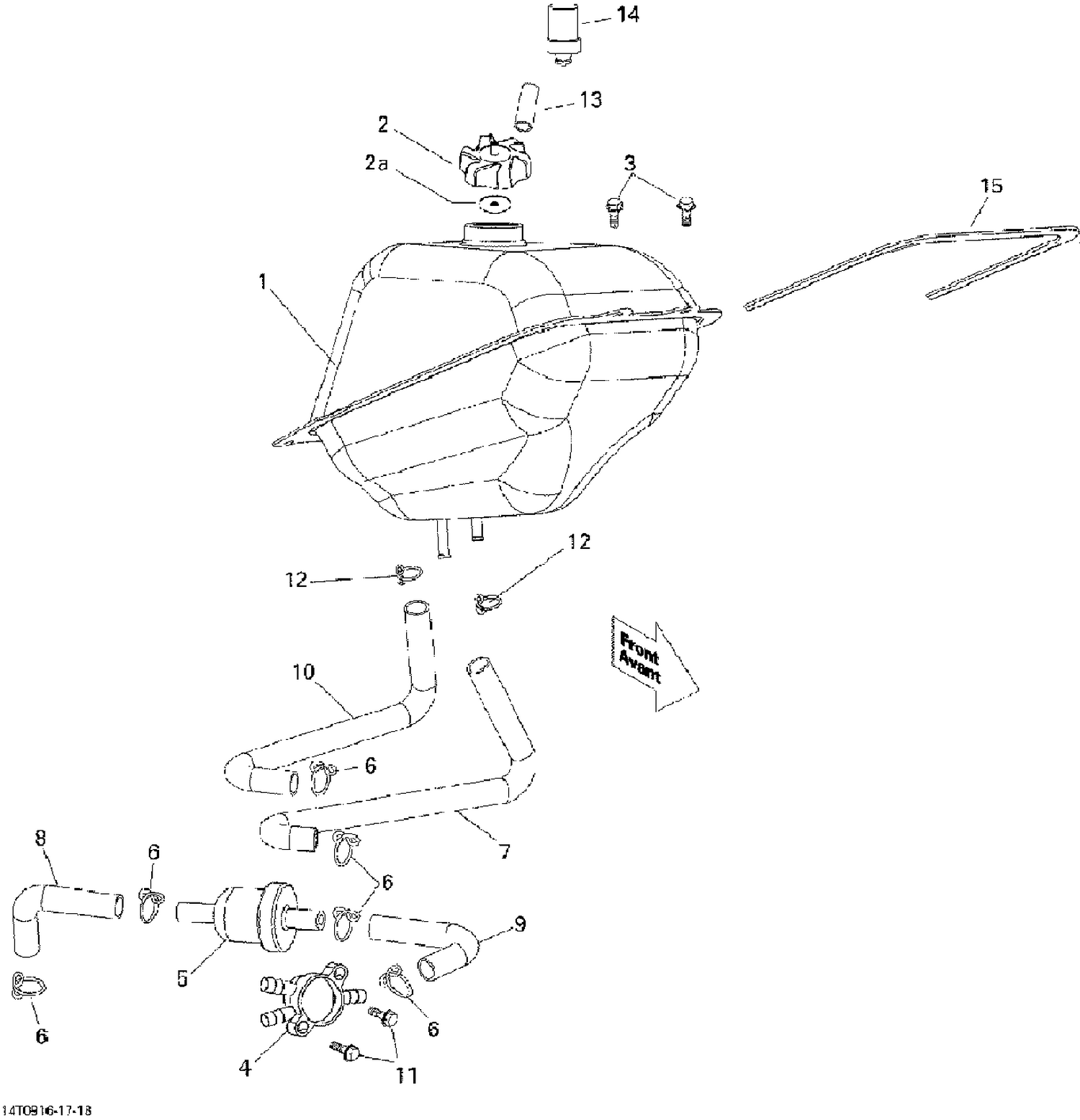

02- Fuel System
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V17500DGF070LL | Fuel Tank This part replaces V17500DGF060. |
| 2 | V17620DGF080LL | Fuel Tank Cap This part replaces V17620DGF010. |
| 2a | V17624DGF010 | Fuel Tank Cap Gasket |
| 3 | 207661244 | Hex. Flange Screw M6 X 12 |
| 4 | V16950DGF010LL | Fuel Valve This part replaces S16950RCA010. |
| 5 | V16910MAA000 | Fuel Filter |
| 6 | V17209DGF020 | Hose Clamp This part replaces V17209DGF010. |
| 7 | V17684DGF010 | Fuel Tube B - Call Your Local BRP Dealership |
| 8 | V17682DGF030 | FUEL TUBE A - Call your local BRP dealership This part replaces V17682DGF010. |
| 9 | V17683DGF010 | Fuel Tube This part replaces V17683DGF000. |
| 10 | V17685DGF020 | Fuel Tube This part replaces V17685DGF000. |
| 11 | V935000502201 | Hex. Flange Bolt This part replaces V9350005022. |
| 12 | V17210DGF010 | Hose Clamp This part replaces V17210DGF000. |
| 13 | V17686DGF040LL | Fuel Vent Tube This part replaces V17686DGF010. |
| 14 | V43351DGF010LL | Vent Pipe This part replaces V43351DGF000. |
