Home / BRP / JOHNSON / 1975 / 40 / 40E75C 1975 / GEARCASE

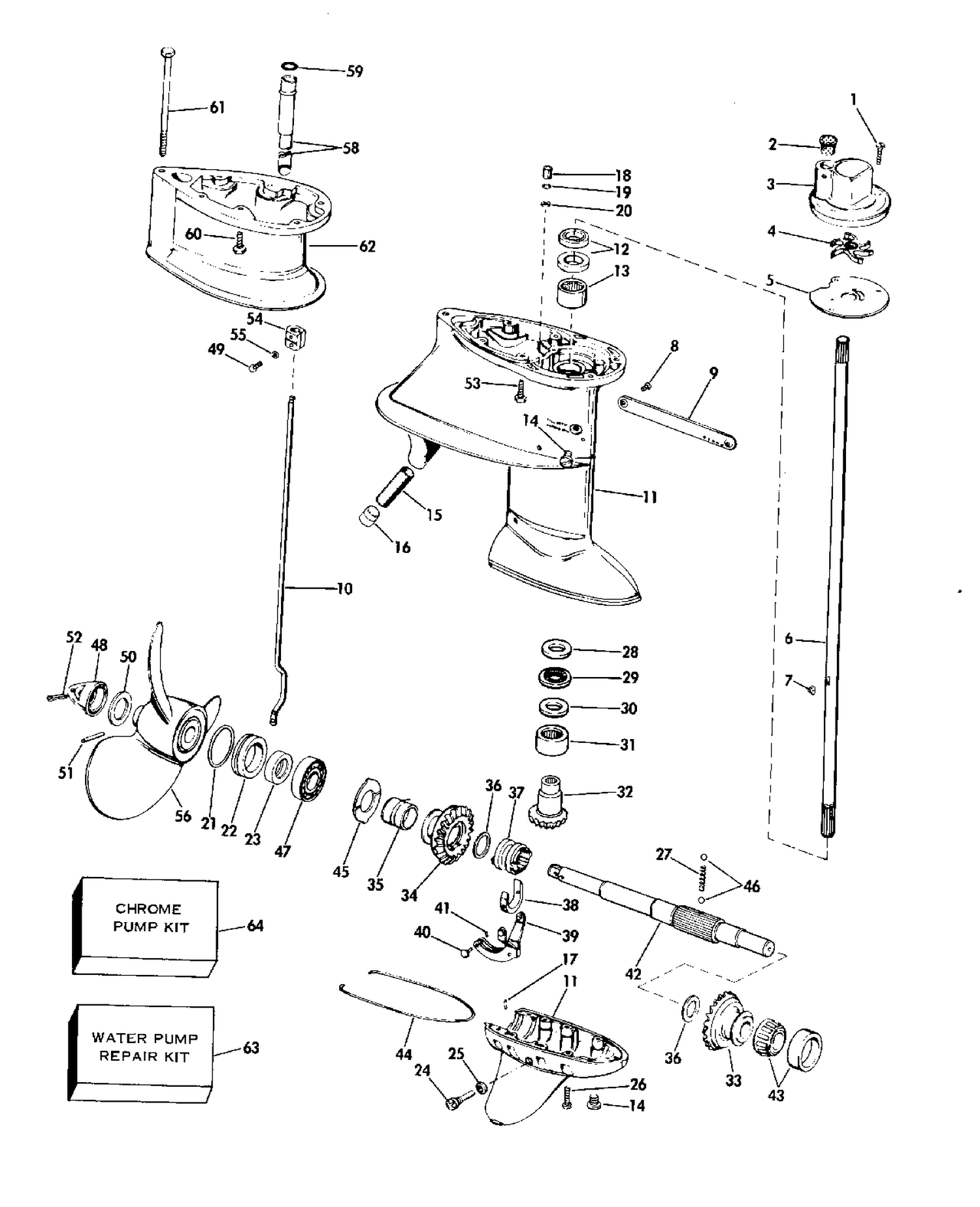

GEARCASE

GEARCASE

Parts (49)

RefPart NumberDescription
1 0302677 SCREW
2 0304026 GROMMET
3 0319155 HOUSING, Impeller
4 0386165 IMPELLER, Pump
5 0319346 PLATE, Impeller housing
6 0318975 DRIBESHAFT,Standard
6 0386654 DRIVESHAFT, Long 5 INCH LONGER PARTS
7 0317078 KEY, Impeller
8 0303587 SCRES,Cover plate This part replaces 0302509.
9 0302616 COVER, Water by - pass
10 0305287 ROD, Shif, lower, standard
10 0305519 ROD, Shift, lower, long
11 0392363 GEARCASE & BRG ASSY. This part replaces 0386052.
17 0300611 AXE, turbine vers arbre d'entraînement
19 0301877 O RING SHIFT ROD
22 0397186 HOUSING, Oil retainer This part replaces 0303050.
25 0307853 O RING
26 0330562 SCREW, Gearcase This part replaces 0317969.
28 0304795 PINION WASHER, Upper
29 0376857 BEARING, Thrust
30 0304796 PINION WASHER , Lower
31 0376858 BEARIN, Pinion
32 0317336 PINION
36 0302565 WASHER, Thrust
37 0312866 DOG, Shifter clutch
38 0305286 CRADLE, Clutch dog
39 0305288 LEVER ,Shifter
42 0387238 SHAFT, Propeller This part replaces 0317335.
43 0385175 CONE & GOLLER ASSY.
44 SEAL, Gearcase halves
45 0302743 WASHER, Thrust
47 0385173 BALL BEARING, Prop. shaft
48 0305294 NUT, Propeller
50 0304576 THRUST WASHER
51 0304575 DRIVE PIN, Propeller
53 0317967 SCREW, Extension to exhaust hsg.
54 0304081 CONNECTOR 5 " EXTENSION KIT
56 0376738 PROPELLER, 11 x 9
56 0378571 PROPELLER, 10-3/8 x 14
56 0380637 PROPELLER 10-1 2 X 12
56 0384460 PROPELLER, 10-1 2 x 13
56 0385955 PROPELLER, 10-3/4 x 11
58 0304175 ADAPTER Water tube
60 0317967 SCREW, Extension to exhaust hsg.
61 0317970 SCREW, Exh. hsg. to gear case, rear, long 5" LONGER PARTS
62 0328572 EXTENSION, Gearcase This part replaces 0317016.
63 0391741 WATER PUMP REPAIR KIT (Includes Impeller Housing) This part replaces 0386602.
0386609 0386609 GEARCASE ASSEMBLY
0386612 0386612 EXTENSION KIT ASSEMBLY 5 INCH LONGER PARTS
