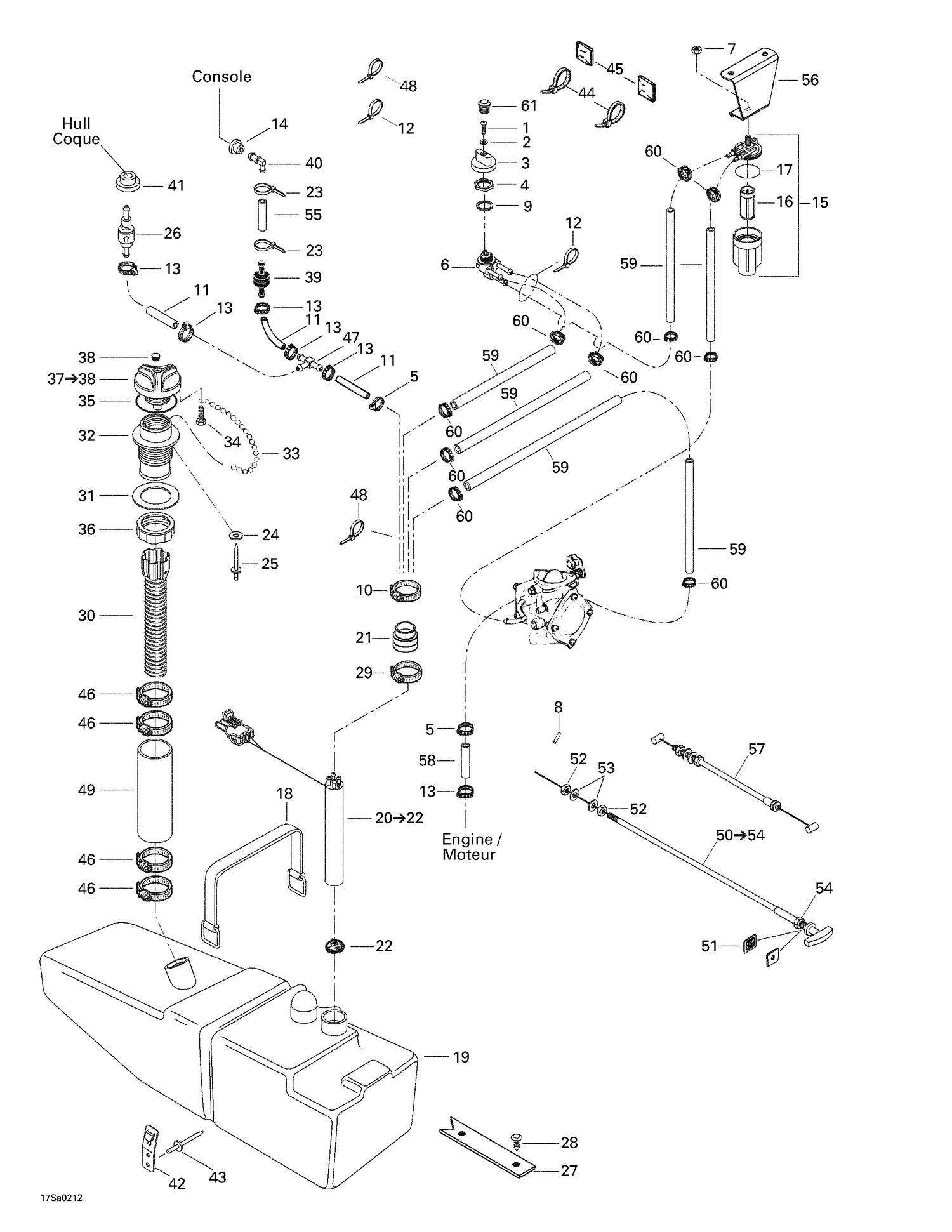

02- Fuel System
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 208640860 | PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 2 | 234040600 | Flat Washer 4 mm |
| 3 | 275500299 | FUEL VALVE KNOB - Call your local BRP dealership |
| 4 | 212100009 | HEX. PLASTIC NUT - Call your local BRP dealership |
| 5 | 280650038 | Tridon Clamp |
| 6 | 275500098 | Fuel Valve |
| 7 | 232561600 | Hex. Elastic Stop Nut M6 |
| 8 | 210100014 | Allen Screw M4 x 6 |
| 9 | 293250004 | GASKET - Call your local BRP dealership |
| 10 | 293650077 | Norma Clamp This part replaces 293650078. |
| 11 | 219704396 | HOSE-6MM. 5000MM LONG - Call your local BRP dealership |
| 12 | 293750002 | Tie Wrap 142 mm |
| 13 | 293650042 | Oetiker Clamp |
| 14 | 709200285 | Grommet This part replaces 570135100. |
| 16 | 275500089 | FUEL FILTER - Call your local BRP dealership |
| 17 | 275500090 | O-Ring |
| 18 | 293850023 | Strap |
| 19 | 275500218 | Fuel Tank |
| 21 | 275500111 | Tube Adapter |
| 22 | 275500249 | Fuel Filter |
| 23 | 293750001 | Tie Wrap 94 mm |
| 24 | 234032600 | Flat Washer M3, Stainless |
| 25 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 26 | 275500424 | Check Valve |
| 27 | 293830033 | Pad Rubber |
| 28 | 293730006 | Black, Dart |
| 29 | 293650081 | Norma Clamp |
| 30 | 275500181 | Filler Neck Hose |
| 31 | 293250029 | Gasket |
| 32 | 275500247 | Filler Neck |
| 33 | 275500015 | Oil Cap Chain |
| 34 | 241140060 | Screw K40 X 10 |
| 35 | 293250017 | Gasket |
| 36 | 211100012 | Filler Neck Nut, Fuel |
| 38 | 293000034 | Black, Snap Cap |
| 39 | 275500398 | Check Valve |
| 40 | 414580700 | Male Connector This part replaces 293710001. |
| 41 | 293720029 | Grommet |
| 42 | 293850024 | STRAP CLIP - Call your local BRP dealership |
| 43 | 293150037 | Avdel Rivet 3/16" |
| 44 | 293750002 | Tie Wrap 142 mm |
| 45 | 293750015 | TIE RAP MOUNT - Call your local BRP dealership |
| 46 | 293650023 | Tridon Clamp |
| 47 | 293710024 | T-Fitting |
| 48 | 414115200 | Tie-Rap 180 mm |
| 49 | 204000002 | Filler Neck Hose |
| 51 | 291000457 | Choke Plate |
| 52 | 232160600 | Hex. Nut M6 This part replaces 212100003. |
| 53 | 234061600 | Stainless Flat Washer M6 This part replaces 213200001. |
| 54 | 211100007 | Hex. Nut |
| 55 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 56 | 204560192 | Fuel Filter Support |
| 57 | 277000502 | THROTTLE CABLE - Call your local BRP dealership |
| 58 | 219704396 | HOSE-6MM. 5000MM LONG - Call your local BRP dealership |
| 59 | 204560178 | HOSE 1/4 - Call your local BRP dealership |
| 60 | 293650121 | NORMA CLAMP - Call your local BRP dealership |
