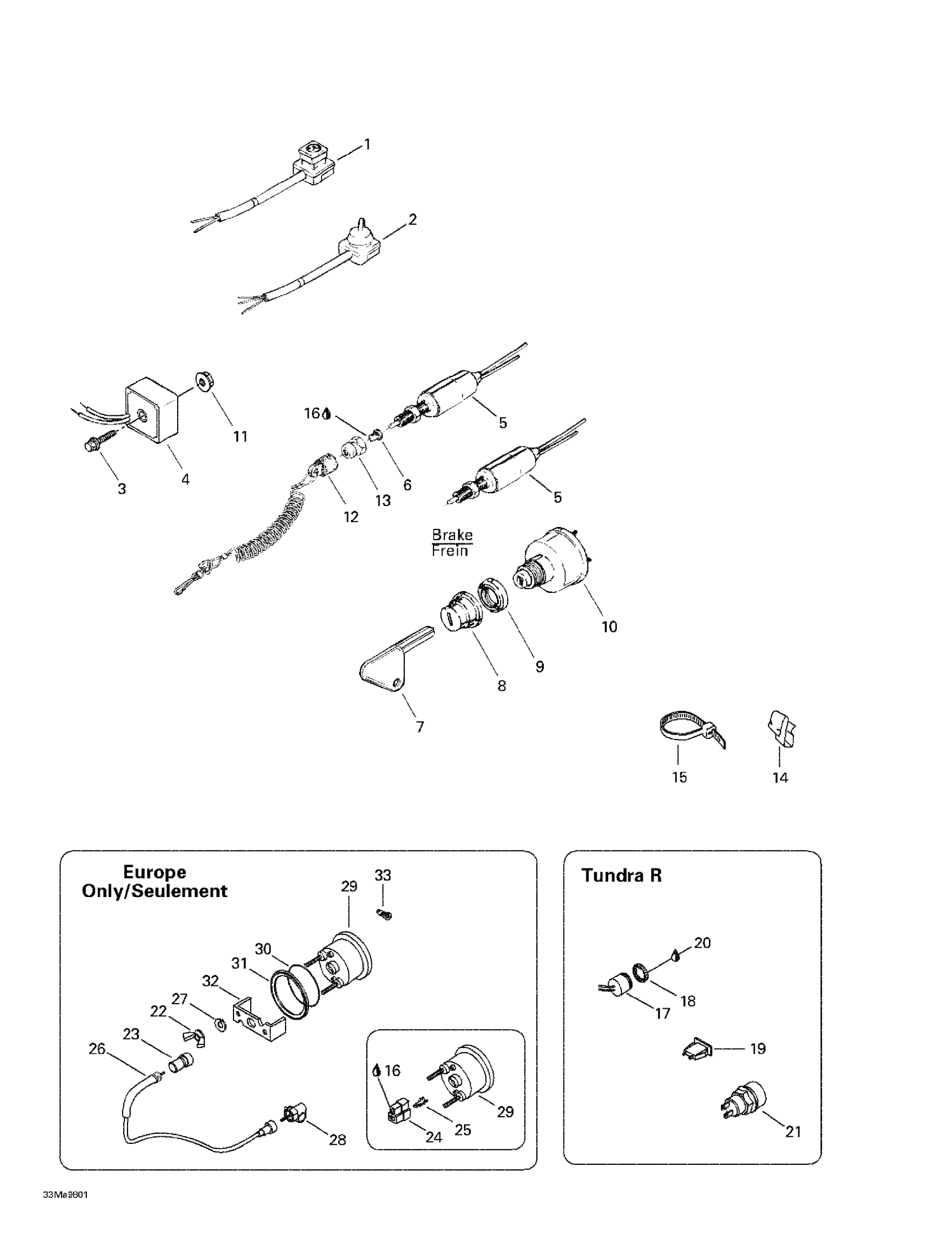

| Ref | Part Number | Description |
|---|
| 1 |
410209400 |
Kill Switch |
| 2 |
410213000 |
Dimmer Switch |
| 3 |
207063544 |
Hex. Flange Screw M6 X 35 This part replaces 222063565. |
| 4 |
515163800 |
VOLTAGE REGULATOR - Call your local BRP dealership |
| 5 |
515175653 |
Brake Switch This part replaces 410106700. |
| 6 |
570151100 |
Plunger Cap |
| 7 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414040300. |
| 8 |
570013700 |
Switch Boot |
| 9 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 10 |
410111200 |
IGNITION SWITCH - Call your local BRP dealership |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 12 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 13 |
515145900 |
Switch Nut |
| 14 |
414095100 |
Clip |
| 15 |
414115200 |
Tie-Rap 180 mm |
| 16 |
293550004 |
Dielectric Grease, 150 g This part replaces 413701700. |
