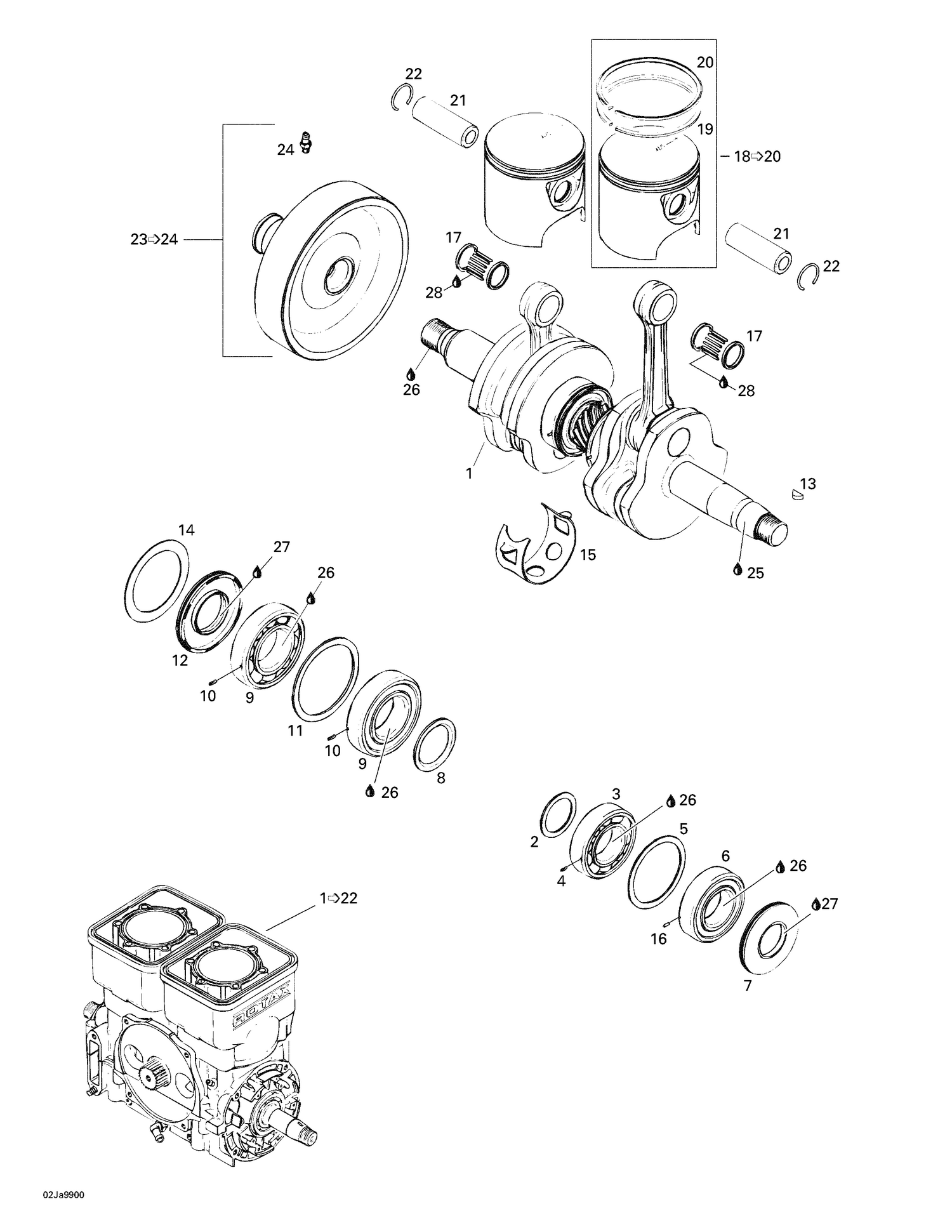

01- Crankshaft And Pistons

01- Crankshaft And Pistons

Parts (30)

RefPart NumberDescription
1 421000074 REBUILD-CRANKSHAFT 717 95-96 - Call your local BRP dealership
1 421000097 REBUILD-CRANKCASE-CYLINDER PACKAGE - Call your local BRP dealership
2 420827448 RING-DISTANCE RING - Call your local BRP dealership This part replaces 290827447.
4 420929972 Dowel Pin
5 420827050 RETAINING DISK - Call your local BRP dealership
6 420832538 BALL BEARING - Call your local BRP dealership This part replaces 290832533.
7 420830749 Oil Seal This part replaces 290830749.
8 420827760 DISTANCE RING - Call your local BRP dealership
10 420929972 Dowel Pin
11 420927710 Retaining Disk
12 420831952 Oil Seal This part replaces 290831952.
13 420246055 Woodruff Key
14 290926060 RETAINING SHIM - Call your local BRP dealership
15 290926070 Retaining Ring
16 290832470 Rolled Pin
17 420832421 NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420.
19 290815080 Rectangular Ring 82.00 mm
20 290815070 Semi-Trapez Ring 82.00 mm
21 420916404 Piston Pin This part replaces 290916401.
22 290845100 Circlip
24 290499113 GREASE FITTING - Call your local BRP dealership
25 293800060 Loctite 243, 10 ml This part replaces 293800015.
26 293800023 LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
27 413707000 Dow Corning 111, 150 g
28 779119 OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
29 290886317 Engine Gasket Set (Not Shown)
290815071 Semi-Trapez Ring 82.25 mm 290815071
290815072 Semi-Trapez Ring 82.50 mm 290815072
290815081 Rectangular Ring 82.25 mm 290815081
290815082 Rectangular Ring 82.50 mm 290815082
