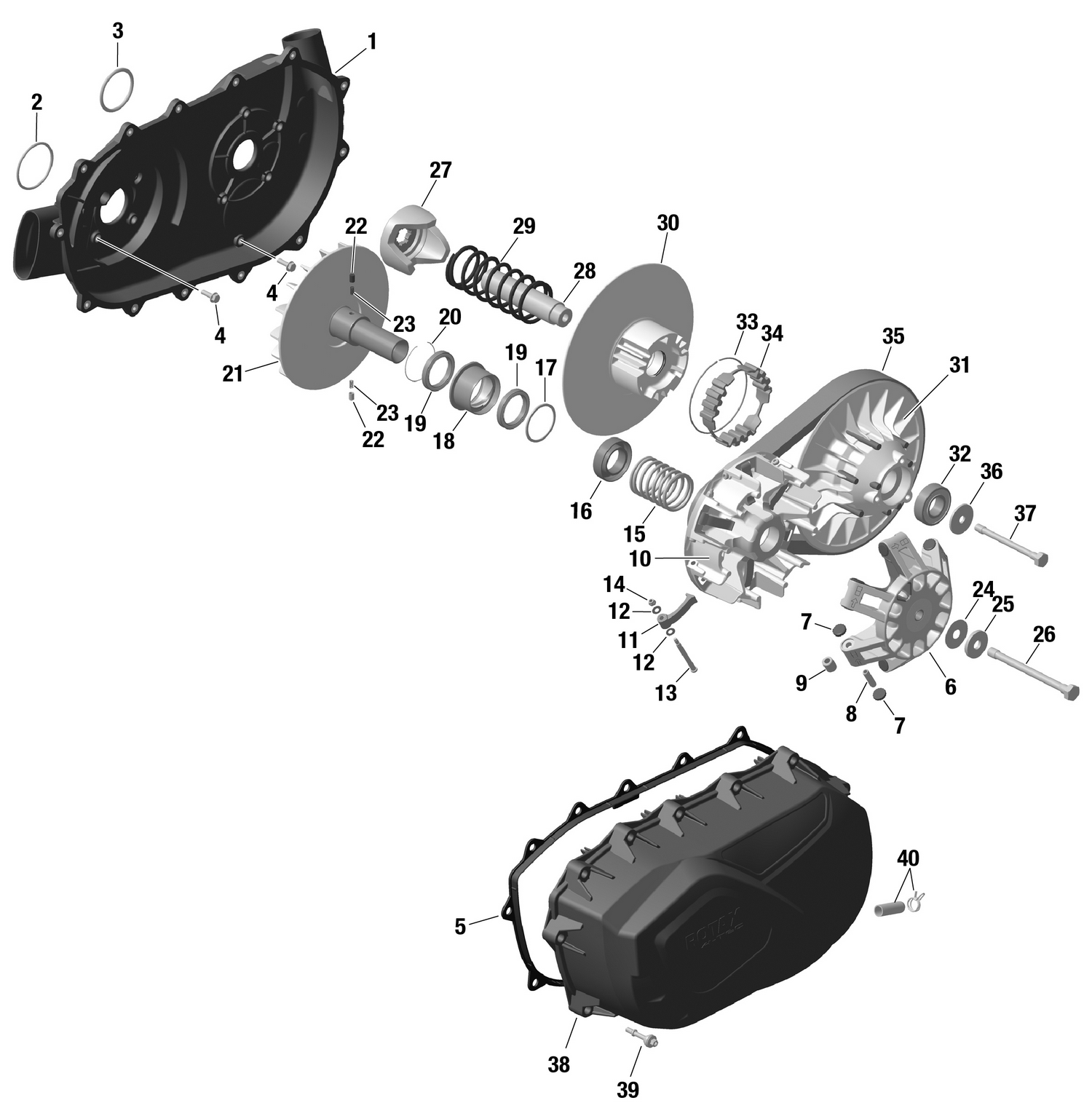

01- Rotax - Transmission - 570 EFI

Ref	Part Number	Description
1	420612304	CVT Air Guide
4	420441311	Hex.Screw M6 X 20
8	417223257	Roller Axle This part replaces 420233896.
9	417223767	Roller This part replaces 420229994.
10	420280467	Outer Haft
11	XXX	Not Available As Spare Parts
12	XXX	Not Available As Spare Parts
13	XXX	Not Available As Spare Parts
14	XXX	Not Available As Spare Parts
15	420238610	Compression Spring, Drive Pulley
16	420627578	Seat Spring This part replaces 420627577.
17	420460430	Friction Washer
18	420257195	Drive Pulley Clutch
19	420632377	Ball Bearing This part replaces 420632375.
20	420245951	Retaining Ring
21	420280374	Inner Half
22	420229577	Spring Sleeve
23	420239134	Spring
24	420627920	Thrust Washer
25	420627768	Spring Washer This part replaces 420627765.
26	420641859	Hex. Screw M12 X 140
27	420280701	Cam This part replaces 420280700.
28	420220913	Driven Pulley Shaft
29	420238176	Compression Spring
30	420280786	Inner Half Ass'y
31	XXX	Not Available As Spare Parts
32	420932421	Ball Bearing
33	420660124	Torque Gear
34	420245911	Retaining Ring
35	422280366	V-Belt This part replaces 715000302.
36	420627594	Thrust Washer This part replaces 420627590.
37	420441485	Hex. Screw M10 X 110
38	420611397	Variator Cover
39	420440568	Hex Screw M6 X 30 This part replaces 420440567.
