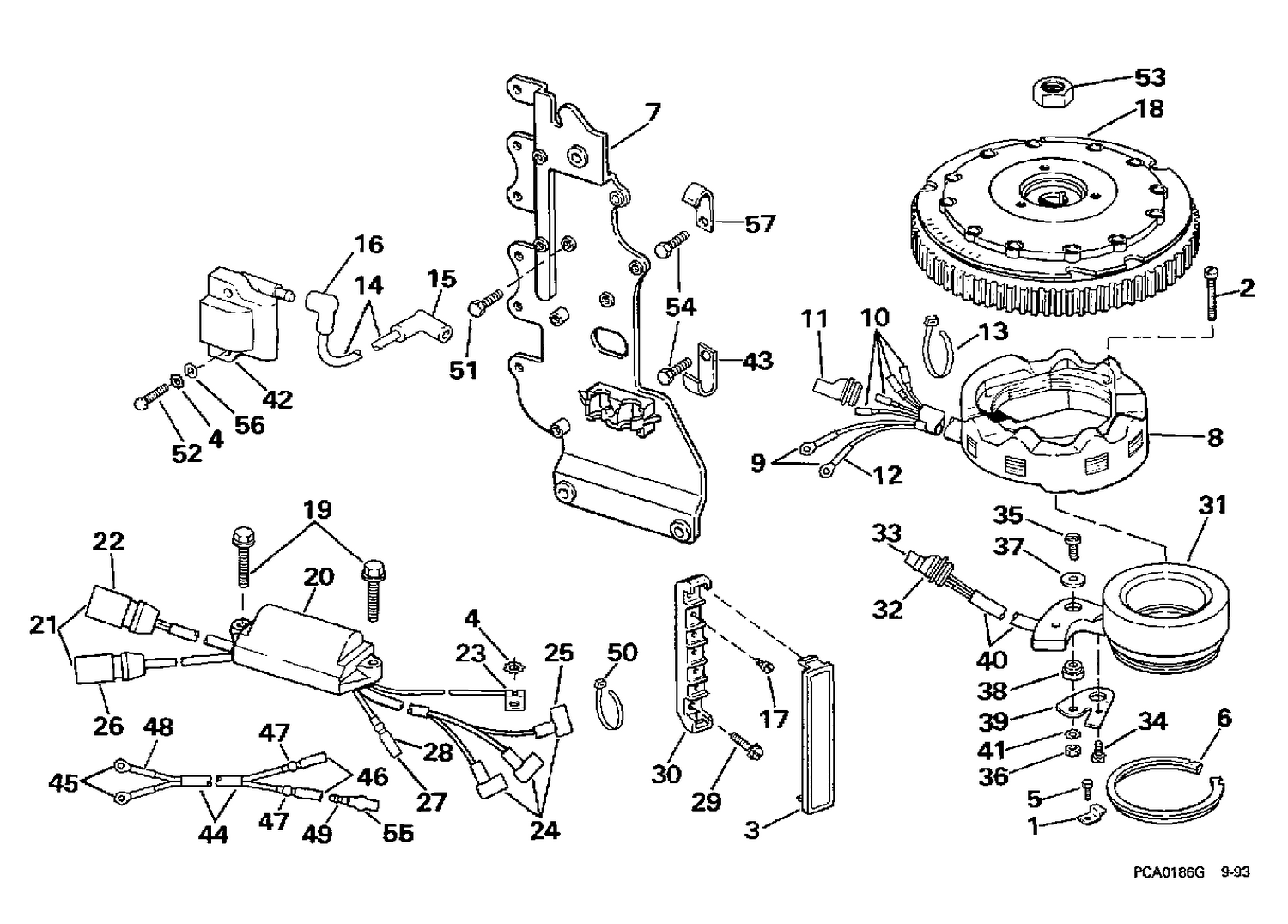

IGNITION SYSTEM
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0314495 | CLAMP, Distributor base |
| 2 | 0325042 | SCREW, Starter mounting |
| 3 | 0329896 | CACHE DE BORNIER |
| 5 | 0306014 | VIS, ancrage |
| 6 | 0313666 | RET., Distributor base 1 |
| 7 | 0514222 | BRACKET, Electrical |
| 8 | 0584766 | STATOR ASSY. |
| 14 | 0582365 | H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 17 | 0329182 | VIS, borne |
| 18 | 0583222 | FLYWHEEL ASSY. |
| 19 | 0328726 | SCREW (Use existing coil screw) |
| 20 | 0583748 | POWER PACK |
| 20 | 0583786 | POWER PACK |
| 29 | 0306644 | VIS, capteur de papillon |
| 30 | 0329895 | BORNIER |
| 31 | 0584558 | TIMER BASE ASSY. |
| 35 | 0319682 | VIS, capteur vers plaque |
| 40 | 0511482 | SLEEVE |
| 42 | 0582508 | COIL ASSY |
| 44 | 0583356 | CABLE ASSY., AC lighting |
| 53 | 0329267 | NUT, Flywheel |
