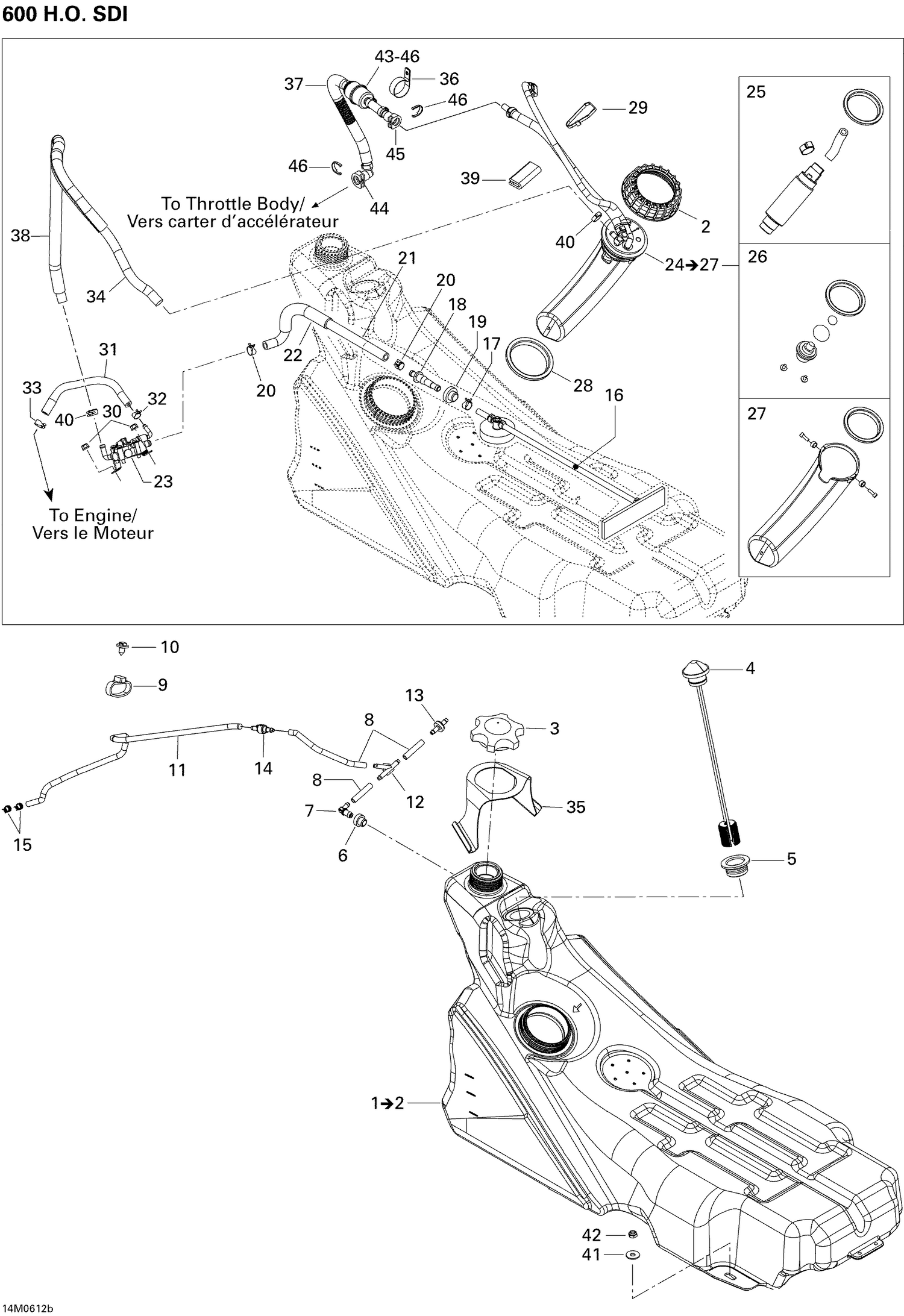

02- Fuel System 600 HO SDI
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 513033040 | Nut, Fuel Pump Module |
| 3 | 513033025 | Fuel Tank Cap |
| 4 | 513033095 | Fuel Gauge |
| 5 | 293720058 | Grommet |
| 6 | 513032908 | Grommet |
| 7 | 414580700 | Male Connector |
| 8 | 219704410 | Polyurethane Hose 10000Mm Long |
| 9 | 414115200 | Tie-Rap 180 mm |
| 10 | 293730040 | Mount Dart This part replaces 293730018. |
| 11 | 219704410 | Polyurethane Hose 10000Mm Long |
| 12 | 293710059 | Y-Fitting |
| 13 | 275500398 | Check Valve |
| 14 | 275500505 | Check Valve |
| 15 | 414554800 | Spring Clamp |
| 16 | 513033172 | FUEL HOSE ASS. - Call your local BRP dealership |
| 17 | 513033010 | Norma Spring Clamp |
| 18 | 414872700 | Male Connector |
| 19 | 707800347 | Grommet This part replaces 570273900. |
| 20 | 293650053 | Crimp Clamp |
| 21 | 513033073 | Hose |
| 22 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 23 | 403901812 | Fuel Pump |
| 25 | 861302700 | PUMP KIT - Call your local BRP dealership |
| 26 | 861302100 | REGULATOR KIT - Call your local BRP dealership |
| 27 | 861302800 | Réservoir Kit |
| 28 | 513033039 | SEAL - Call your local BRP dealership |
| 29 | 414115200 | Tie-Rap 180 mm |
| 30 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 31 | 513033035 | HOSE - Call your local BRP dealership |
| 32 | 414415200 | Spring Clamp |
| 33 | 513033029 | Universal Spring Clamp |
| 34 | 219704422 | HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership |
| 35 | 513033066 | SUPPORT - Call your local BRP dealership |
| 36 | 513033047 | Open Clamp |
| 37 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 38 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 39 | 219704353 | Was 271000110 Protection Trim |
| 40 | 293650047 | Crimp Clamp, 15.3-706R |
| 41 | 234082410 | Flat Washer 8 mm |
| 42 | 232581414 | Hex. Elastic Stop Nut M8 |
| 44 | 415128965 | Quick Fitting 90° Ass'y |
| 45 | 709000125 | Female Quick Fitting Ass'y |
