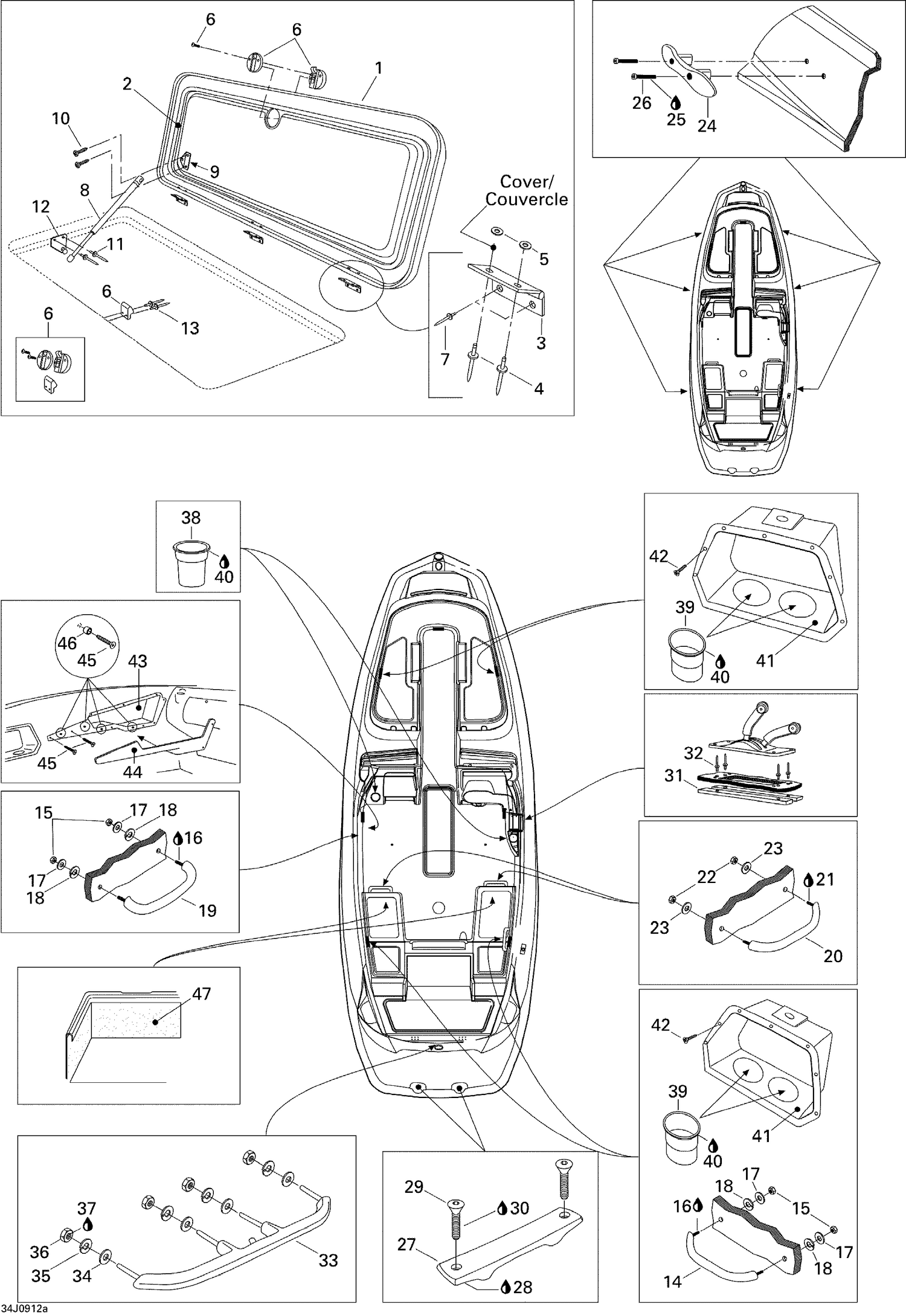

| Ref | Part Number | Description |
|---|
| 1 |
204072794 |
CENTER COVER - Call your local BRP dealership |
| 2 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 3 |
204072601 |
HINGE - Call your local BRP dealership |
| 4 |
293150088 |
Pop Rivet 3/16" |
| 5 |
234051600 |
Flat Washer M5, Stainless |
| 6 |
204073230 |
Latch, Stainless Steel |
| 7 |
293150037 |
Avdel Rivet 3/16" |
| 8 |
204072218 |
GAS SHOCK - Call your local BRP dealership |
| 9 |
204073074 |
Shock Bracket |
| 10 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 11 |
293150043 |
Pop Rivet 3/16" |
| 12 |
204072219 |
RH SHOCK BRACKET - Call your local BRP dealership |
| 13 |
293150039 |
Pop Rivet 3/16" |
| 14 |
291003405 |
GRAB HANDLE ASS. - Call your local BRP dealership This part replaces 204073049. |
| 15 |
204100052 |
HEX. NUT 5/16?-18 - Call your local BRP dealership |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 17 |
234082600 |
Flat Washer 8 mm, Stainless |
| 18 |
234180602 |
Lock Spring Washer 8 mm, Stainless |
| 19 |
204073040 |
GRAB HANDLE ASS'Y - Call your local BRP dealership |
| 20 |
204073791 |
GRAB HANDLE ASS'Y - Call your local BRP dealership This part replaces 204072920. |
| 21 |
293800060 |
Loctite 243, 10 ml |
| 22 |
204100032 |
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership |
| 23 |
234002600 |
Flat Washer 10 mm, Stainless |
| 24 |
204070592 |
CLEAT - Call your local BRP dealership |
| 25 |
293800060 |
Loctite 243, 10 ml |
| 26 |
204100144 |
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership |
| 27 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 28 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 29 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 30 |
293800060 |
Loctite 243, 10 ml |
| 31 |
293450061 |
SHIFTER INSERT - Call your local BRP dealership |
| 32 |
293150013 |
Pop Rivet 3/16" |
| 33 |
204073394 |
Ski-Tow Handle |
| 34 |
234002600 |
Flat Washer 10 mm, Stainless |
| 35 |
234181601 |
Lock Washer 8 mm, Stainless |
| 36 |
204100052 |
HEX. NUT 5/16?-18 - Call your local BRP dealership |
| 37 |
293800060 |
Loctite 243, 10 ml |
| 38 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 39 |
204072216 |
HOLDER CUP, BLACK - Call your local BRP dealership |
| 40 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 41 |
204073306 |
Coaming Box Ass'y |
| 42 |
250000090 |
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
| 43 |
204073302 |
BOX-COAMING/PORT - Call your local BRP dealership |
| 44 |
204073305 |
FASCIA-COAMING/PORT - Call your local BRP dealership |
| 45 |
202000203 |
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership |
| 46 |
204130223 |
Nylon Bushing |
