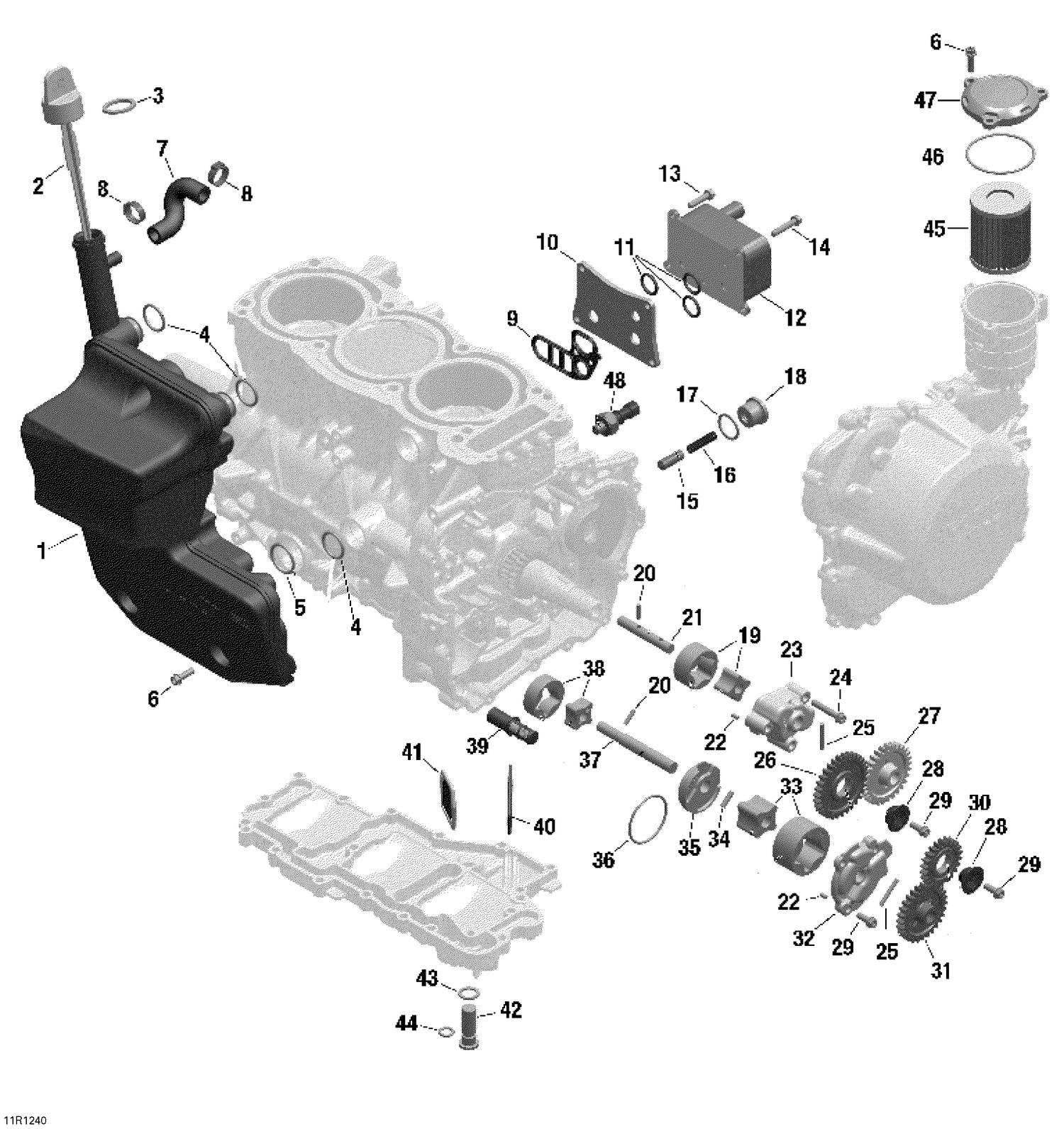

01- Engine Lubrication
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 420431790 | Gasket Ring |
| 4 | 420931634 | O-Ring This part replaces 420931632. |
| 5 | 420430068 | O-Ring This part replaces 420430067. |
| 6 | 420440207 | Torx Flange Screw M6 X 20 |
| 7 | 420460021 | Air Vent Line |
| 8 | 420951273 | Clamp |
| 9 | 420431283 | Gasket This part replaces 420431282. |
| 10 | 420951460 | PLATE - Call your local BRP dealership |
| 11 | 420630400 | O-RING - Call your local BRP dealership |
| 12 | 420891914 | Oil Radiator This part replaces 420891912. |
| 13 | 420440234 | Torx Flange Screw M6 X 25 |
| 14 | 420440647 | Torx Flange Screw M6 X 30 |
| 15 | 420256513 | Pressure Regulating Piston |
| 16 | 420239445 | Spring |
| 17 | 420650465 | Gasket Ring |
| 18 | 420640278 | SCREW PLUG M22 X 1.5 - Call your local BRP dealership |
| 19 | 420256681 | Oil Pump Rotor, Suction |
| 20 | 420232731 | Needle Pin This part replaces 420232730. |
| 21 | 420837911 | OIL PUMP SHAFT - Call your local BRP dealership |
| 22 | 420929075 | Needle Pin |
| 23 | 420611861 | Oil Pump Housing |
| 24 | 420641258 | Torx Flange Screw M6 X 35 |
| 25 | 420232431 | Needle Pin This part replaces 420232430. |
| 26 | 420835055 | Idle Gear, 31 Teeth |
| 27 | 420834882 | Oil Pump Gear, 29 Teeth |
| 28 | 420947396 | Graduated Spacer This part replaces 420947390. |
| 29 | 420440162 | Torx Flange Screw M6 X 16 |
| 30 | 420835051 | Idle Gear, 22 Teeth |
| 31 | 420834887 | Oil Pump Gear, 28 Teeth This part replaces 420834885. |
| 32 | 420611980 | Oil Pump Cover |
| 33 | 420256831 | Oil Pump Rotor This part replaces 420256830. |
| 34 | 420632221 | Needle Pin This part replaces 420632220. |
| 35 | 420611950 | Oil Pump Cover |
| 36 | 420631830 | O-Ring |
| 37 | 420837915 | OIL PUMP SHAFT - Call your local BRP dealership |
| 38 | 420256671 | Oil Pump Rotor, Pressure This part replaces 420256670. |
| 39 | 420856658 | OIL SIEVE - Call your local BRP dealership |
| 40 | 420856650 | Oil Sieve |
| 41 | 420856655 | Oil Sieve |
| 42 | 420941841 | Screw Plug M14 X 1.5 |
| 43 | 420230500 | Gasket Ring |
| 44 | 420430115 | O-Ring |
| 45 | 420956124 | Oil Filter |
| 46 | 420230923 | O-Ring This part replaces 420650500. |
