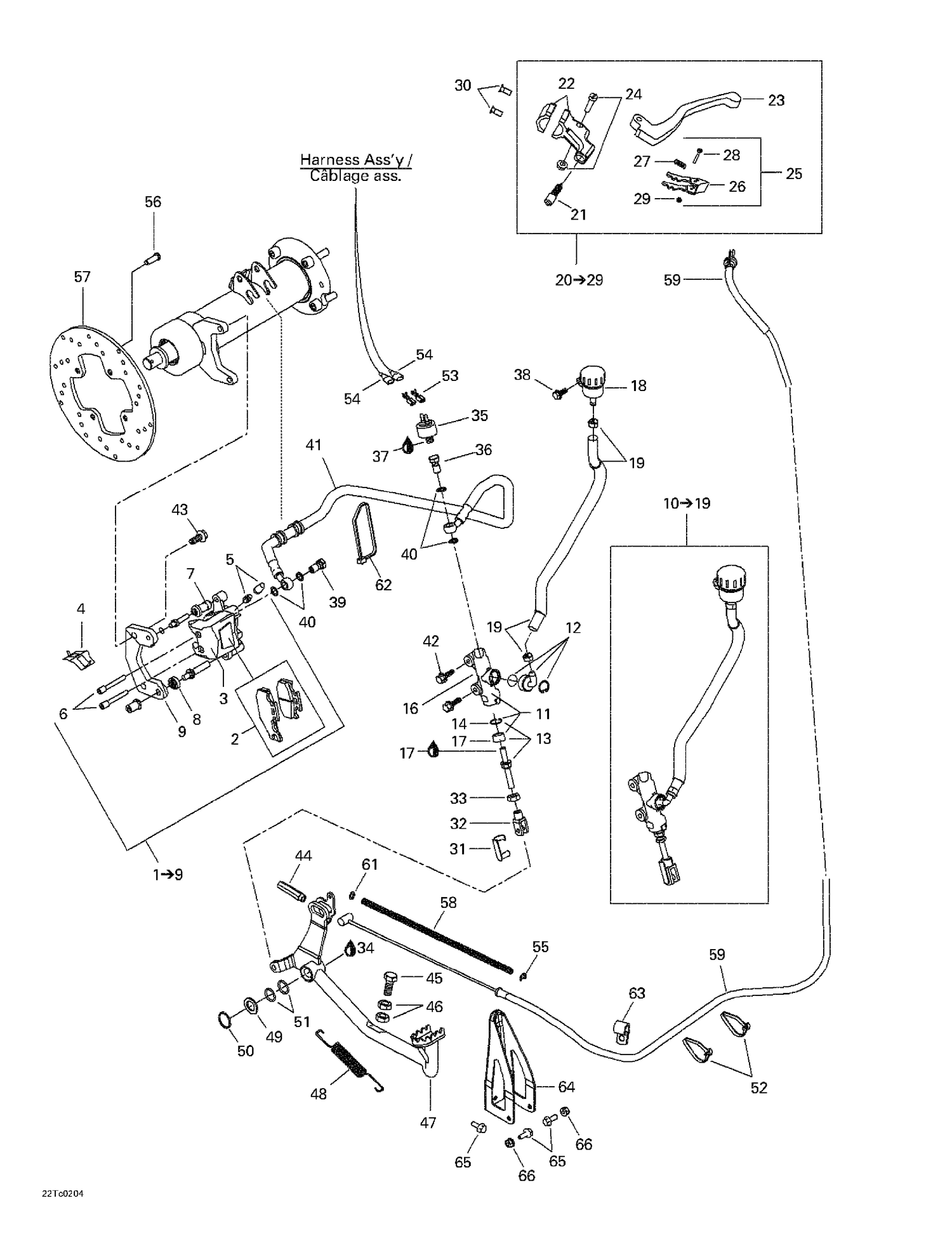

06- Rear Hydraulic Brake
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 705600150 | Brake Pad Kit |
| 3 | 705600078 | Piston Set |
| 4 | 705600079 | Spring |
| 5 | 705600080 | Bleeding Screw |
| 6 | 705600081 | Pin Set (2) |
| 7 | 705600082 | Compression Boot |
| 8 | 705600083 | Compression Boot |
| 9 | 705600149 | Lining Support |
| 11 | 705600063 | Piston Set |
| 12 | 705600064 | PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership |
| 14 | 705600068 | Circlip |
| 15 | 705600090 | Compression Boot |
| 16 | 705600117 | Master Cylinder |
| 17 | Not | Available As Spare Part - Grease, 2 g |
| 18 | 705600182 | Oil Tank, Brake Fluid Reservoir This part replaces 705600067. |
| 19 | 705600169 | OIL HOUSING HOSE - Call your local BRP dealership |
| 21 | 250000030 | Cable Screw |
| 22 | 705600270 | CLAMP KIT - Call your local BRP dealership |
| 23 | 705600186 | LEVER - Call your local BRP dealership |
| 24 | 705600187 | Pivot Kit |
| 25 | 705600188 | Lever Lock Kit |
| 26 | 705600224 | Lock lever |
| 27 | 705600225 | SPRING - Call your local BRP dealership |
| 28 | 208032291 | Screw M3 X 22 |
| 29 | 232531423 | Elastic Stop Nut M3 |
| 30 | 205351646 | SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership |
| 31 | 219702305 | Pin Kit This part replaces 250400007. |
| 32 | 705600100 | Yoke |
| 33 | 232081414 | Hex. Nut M8 |
| 34 | 293550010 | Synthetic Grease, 400 G |
| 35 | 710001345 | BRAKE SWITCH - Call your local BRP dealership This part replaces 710000099. |
| 36 | 705600092 | BANJO BOLT - Call your local BRP dealership |
| 37 | 219704454 | Was 293800013 Loctite 56765 |
| 38 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 39 | 705600609 | Banjo Bolt (M10 x 1.25 thread) This part replaces 705600056. |
| 40 | 414920600 | Washer |
| 41 | 705601392 | BRAKE LINE - Call your local BRP dealership This part replaces 705600163. |
| 44 | 705600147 | NUT - Call your local BRP dealership |
| 45 | 207102544 | Hex. Screw M10 X 25 |
| 46 | 232006414 | Hex. Nut M10 X 1.5 |
| 47 | 705600125 | BRAKE PEDAL, BLACK - Call your local BRP dealership |
| 48 | 705600107 | BRAKE PEDAL SPRING - Call your local BRP dealership |
| 49 | 503107800 | WASHER - Call your local BRP dealership |
| 50 | 293370012 | CIRCLIP - Call your local BRP dealership |
| 51 | 293300053 | O-RING - Call your local BRP dealership |
| 52 | 414115200 | Tie-Rap 180 mm |
| 53 | 278001009 | Female Terminal |
| 54 | 278001007 | Insulated Sheath |
| 55 | 705600272 | Circlip |
| 56 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 57 | 705600167 | Brake disc |
| 58 | 705600173 | Spring |
| 59 | 705600124 | REAR BRAKE CABLE - Call your local BRP dealership |
| 60 | 705600146 | CABLE BARREL - Call your local BRP dealership |
| 61 | 705600145 | FLAT WASHER - Call your local BRP dealership |
| 62 | 293750008 | Tie Wrap 368 mm |
| 63 | 414351600 | CLIP - Call your local BRP dealership |
| 64 | 705600191 | Cable Support |
| 65 | 207661644 | Hex. Flange Screw M6 X 16 |
