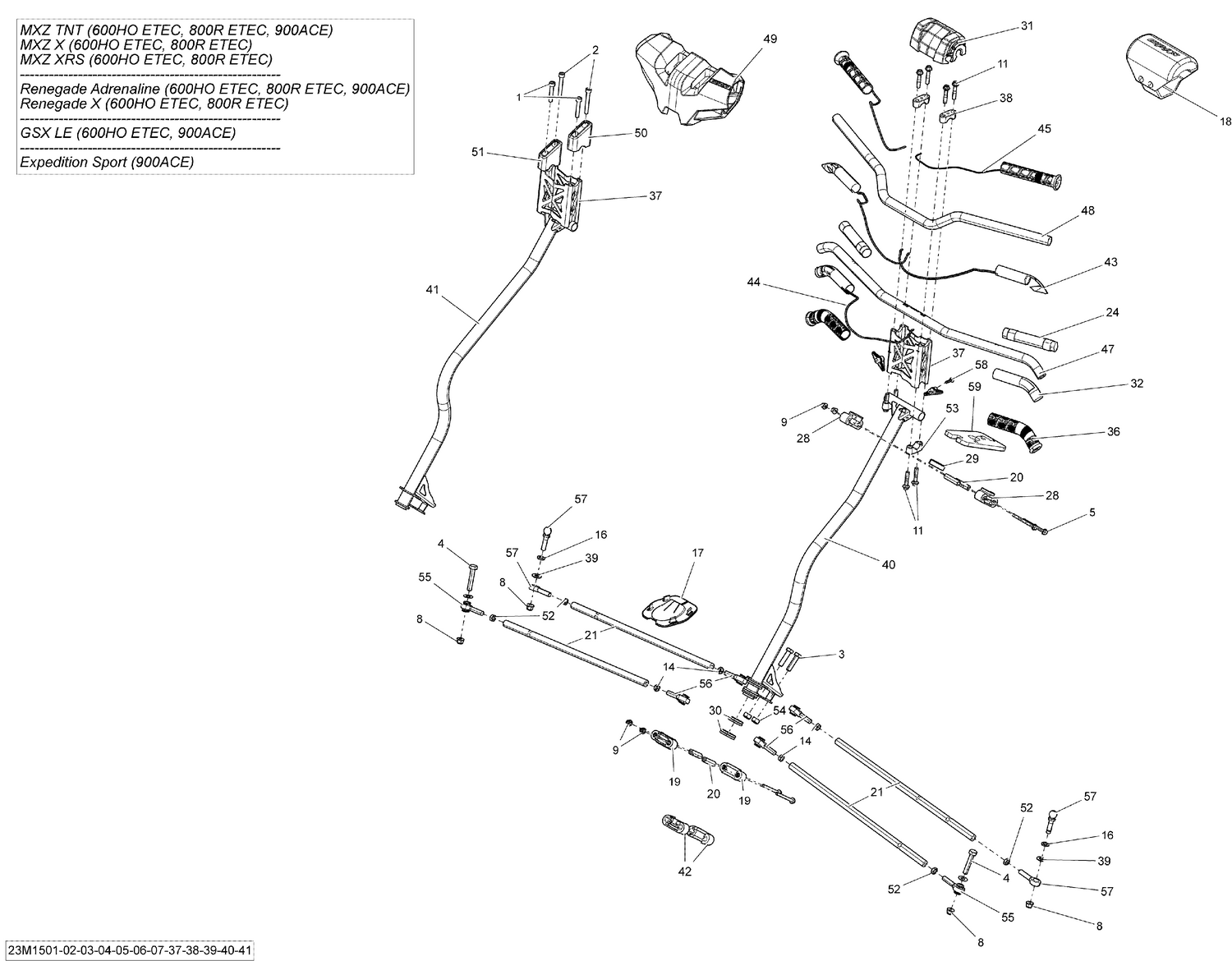

07- Steering _23M1504

Parts (43)

Ref	Part Number	Description
1	XXX	Not Available As Spare Parts
2	XXX	Not Available As Spare Parts
3	207004034	Hex. Screw M10 X 1.5 X 40
4	XXX	Not Available As Spare Parts
5	207667056	Hex. Flange Screw M6 X 70 This part replaces 207667086.
8	233201464	Hex. Flange Elastic M10 x 1.5
9	233261416	Elastic Flange Nut M6 X 1.0
11	250000352	Hex. Flange Screw M8 X 40
14	250100016	LH Threaded Hex. Jam Nut M10
16	503192496	Washer
17	506152163	Plate
18	506152522	STEERING PAD - Call your local BRP dealership
19	506152217	Lower Half-Housing
20	506152297	Housing Bushing
21	506152496	Tie-Rod Ass'y
24	XXX	Not Available As Spare Parts
28	506152508	Upper Half-Housing
29	506152509	Upper Anti-Vibration Gasket
30	506152518	Lower Vibration Ring
31	XXX	Not Available As Spare Parts
32	506153176	Thermal Insulation This part replaces 506152548.
36	506152560	Grip 148mm
37	506152616	Black Handlebar Extension (130mm)
38	506152751	Steering Support This part replaces 506152750.
39	506152582	Washer
40	506152962	Steering Column This part replaces 506152584.
41	XXX	Not Available As Spare Parts
42	XXX	Not Available As Spare Parts
43	506152798	Heating Element 32 Watt 3 Wires This part replaces 506152665.
44	XXX	Not Available As Spare Parts
45	XXX	Not Available As Spare Parts
47	506152709	Handle Bar, Non Dyed Clear Anodizing
48	XXX	Not Available As Spare Parts
49	XXX	Not Available As Spare Parts
50	XXX	Not Available As Spare Parts
51	XXX	Not Available As Spare Parts
52	732610010	RH Threaded Hex. Jam Nut M10
53	506152751	Steering Support
54	233601466	Elastic Locking Nut M10
55	XXX	Not Available As Spare Parts
56	506152081	LH Thread Ball Joint
57	506152684	RH Threaded Ball Joint
58	XXX	Not Available As Spare Parts
