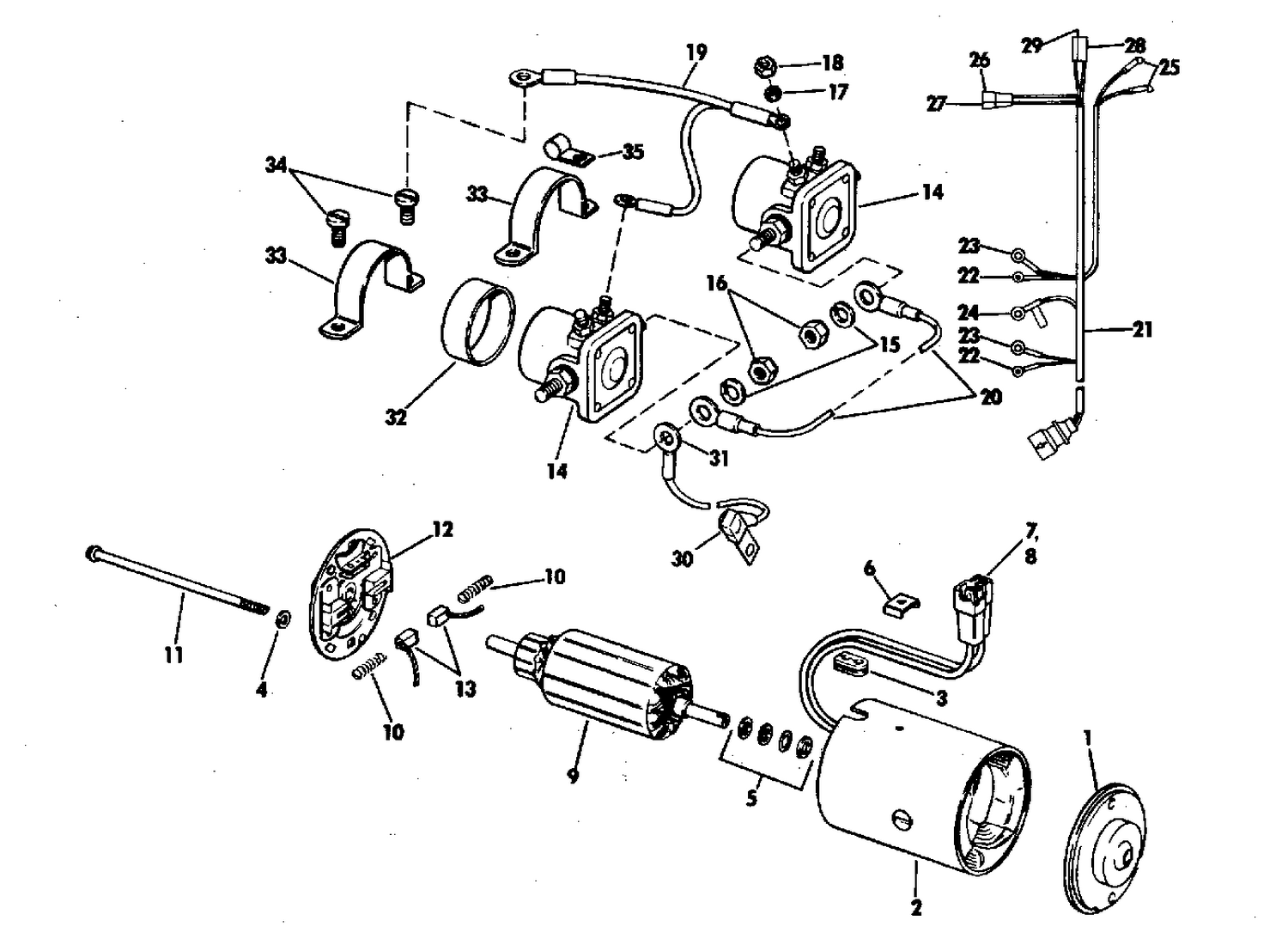

TILT MOTOR GROUP PRESTOLITE MODEL ETK-4102 90, 120, 155, 210
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0380705 | HEAD ASSEMBLY |
| 2 | 0382444 | FRAME & FIELD COIL ASSEMBLY |
| 3 | 0309595 | GROMMET |
| 4 | 0312013 | HOUSING |
| 5 | 0380752 | THRUST WASH AND SPACER PKG |
| 6 | 0312014 | CLAMP |
| 7 | 0510472 | CONNECTOR |
| 9 | 0382544 | ARMATURE ASSEMBLY |
| 11 | 0382443 | THRU BOLT PACKAGE |
| 12 | 0382545 | HEAD ASSEMBLY COMMUTATOR END BRUSH SET |
| 16 | 0303783 | NUT |
| 19 | 0380354 | LEAD ASSEMBLY, Ground |
| 20 | 0981890 | LEAAD ASSY This part replaces 0383421. |
| 21 | 0383355 | CABLE ASSEMBLY |
| 26 | 0510472 | CONNECTOR |
| 28 | 0510471 | CONNECTOR |
| 29 | 0510469 | TAB |
| 30 | 0383420 | FUSE LEAD ASSY |
| 32 | 0311217 | MANCHON, solénoïde |
| 33 | 0330112 | BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 34 | 0303311 | SCR,Clamp,eng cable |
| 0382138 | 0382138 | POWER PISTON ASSY |
| 0383363 | 0383363 | TILT SOLENOID & CABLE ASSEMBLY |
